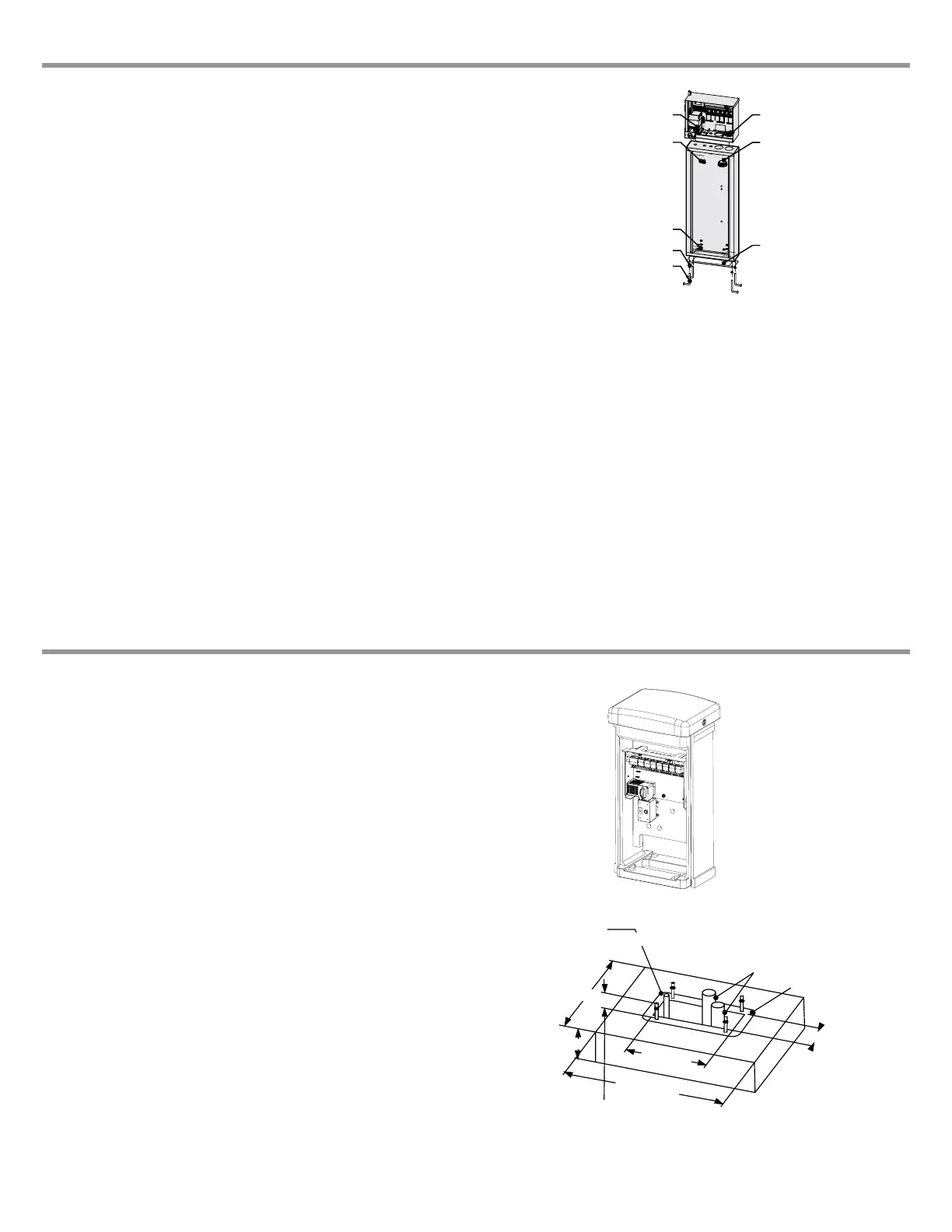

MOUNTING THE CONTROLLER (METAL PEDESTAL)
Pedestal Mount for Metal/Stainless Cabinet
Location Requirement:
A) A switch or circuit-breaker shall be included in
building installations; B) the switch or breaker shall be in close proximity
to the controller, and within easy reach of the operator; C) the switch or
breaker shall be marked as the disconnecting device for the controller; D)
the switch or circuit breaker used must comply with IEC 60947-1 and IEC
60947-3.
Select a location for your controller that can be easily accessible, and is
within close proximity to a 120VAC(10A) or 230/240VAC(5A) power source.
1. Set concrete forms using the installation instructions provided with the
controller. Allow 2"(50 mm) of the conduit sweep above the surface of
the concrete pad.
2. Assemble the mounting template. Twist one nut on each of the four
J-bolts and slide each bolt through the template. Put a washer and
nut on each J-bolt to secure it to the template (allow 2 ½" [64 mm] of
thread protruding above each nut).
3. Level the mounting template before the concrete sets. Uneven
surfaces may cause the pedestal to distort, preventing proper sealing
of the doors.
4. Allow the concrete to cure for at least 24 hours. After the concrete
sets, remove the nuts and washers from the four J-bolts, and slide the
pedestal over the bolts. Secure the pedestal to the bolts using the
enclosed washers and nuts.
5. Remove the door and faceplate of the I-Core and attach the metal
cabinet of the I-Core to the top of the pedestal using the enclosed
hardware in the pedestal.
6. Replace the pedestal door rst and then replace the faceplate and the
cabinet door. The pedestal door cannot be removed or replaced when
the cabinet door is closed.
2" (50 mm)Conduit Nut
2" (50 mm)Conduit Nut
Mounting Plate
½" (13 mm)Conduit Nut
½" (13 mm)Conduit Nut
¾" (20 mm)Washer (4)
³∕8" (9.5 mm) Mounting Nut (8)
³∕
8" (9.5 mm) Mounting Nut (8)
MOUNTING THE CONTROLLER (PLASTIC PEDESTAL)
Plastic Pedestal Mounting
Location Requirement:
A) A switch or circuit-breaker shall be included in
building installations; B) the switch or breaker shall be in close proximity
to the controller, and within easy reach of the operator; C) the switch or
breaker shall be marked as the disconnecting device for the controller; D)
the switch or circuit breaker used must comply with IEC 60947-1 and IEC
60947-3.
Select a location for your controller that can be easily accessible, and is
within close proximity to a 120VAC(10A) or 230/240VAC(5A) power source.
1. Set concrete forms using the installation instructions provided with the
controller. Allow 2"(50 mm) of the conduit sweep above the surface of
the concrete pad.
2. Assemble the mounting template. Twist one nut on each of the four
J-bolts and slide each bolt through the template. Put a washer and
nut on each J-bolt to secure it to the template (allow 2 ½" [64 mm] of
thread protruding above each nut).
3. Level the mounting template before the concrete sets. It is important
with plastic pedestals to ensure a smooth mounting surface. Uneven
surfaces may cause the pedestal to distort, preventing proper sealing
of the doors.
4. Allow the concrete to cure for at least 24 hours. After the concrete
sets, remove the nuts and washers from the four J-bolts, and slide the
pedestal over the bolts. Secure the pedestal to the bolts using the
enclosed washers and nuts.
(3" [7.6 cm] Max Above Concrete)
Field Wiring
(3" [7.6 cm] Max Above Concrete)
Thread Length 2.50" (6.4 cm) Min
Above Concrete
Template
5" (12.7 cm)
12.50" (31.8 cm)
26" Min (66 cm)
21" (53 cm) Min
4" (10 cm)
5
To Next Page
