CONNECTING THE POWER AND STATION MODULES
The I-Core controller is supplied with one factory installed power module
and one station module for six stations. Additional station modules may be
added in six station increments to expand the controller’s station capability.
The plastic cabinet I-Core can be expanded to a size of 30 stations, and the
metal cabinet and plastic pedestal I-Core can expand to 42 stations.
STATION MODULE
Station Module Installation
1. Open the inner facepack door and locate the Slide Lock. Move the
Slide Lock bar to the POWER OFF position.
2. The module needs to be inserted into the rst open module slot
position from the left or next available position in the back of the
controller. Do not skip slots by leaving them empty.
3. Insert the module with the gold tab on the top of the module facing
up. Slide the module straight in until it clicks into place.
4. Slide the Slide Lock into the POWER ON position.
5. The controller will automatically identify any new modules that have
been added. You can turn the dial to SET STATION RUN TIMES to
conrm the correct number of stations have been acknowledged.
Power Module Installation
The I-Core power module supplies power to the facepack and accessory
terminals. It typically does not need to be removed, however can be
replaced for servicing.
1. To install the Power Module, open the inner facepack door,
and locate the module lock bar. Move the Slide Lock bar to the
POWER OFF position.
2. Insert the power module into the rst slot position from the left, with
the gold tab on the top of the module facing up. Slide the module
straight in until it clicks into place.
3. Move the Slide Lock to the POWER ON position.
4. The Power Module must be in place in order for the controller to
operate and function.

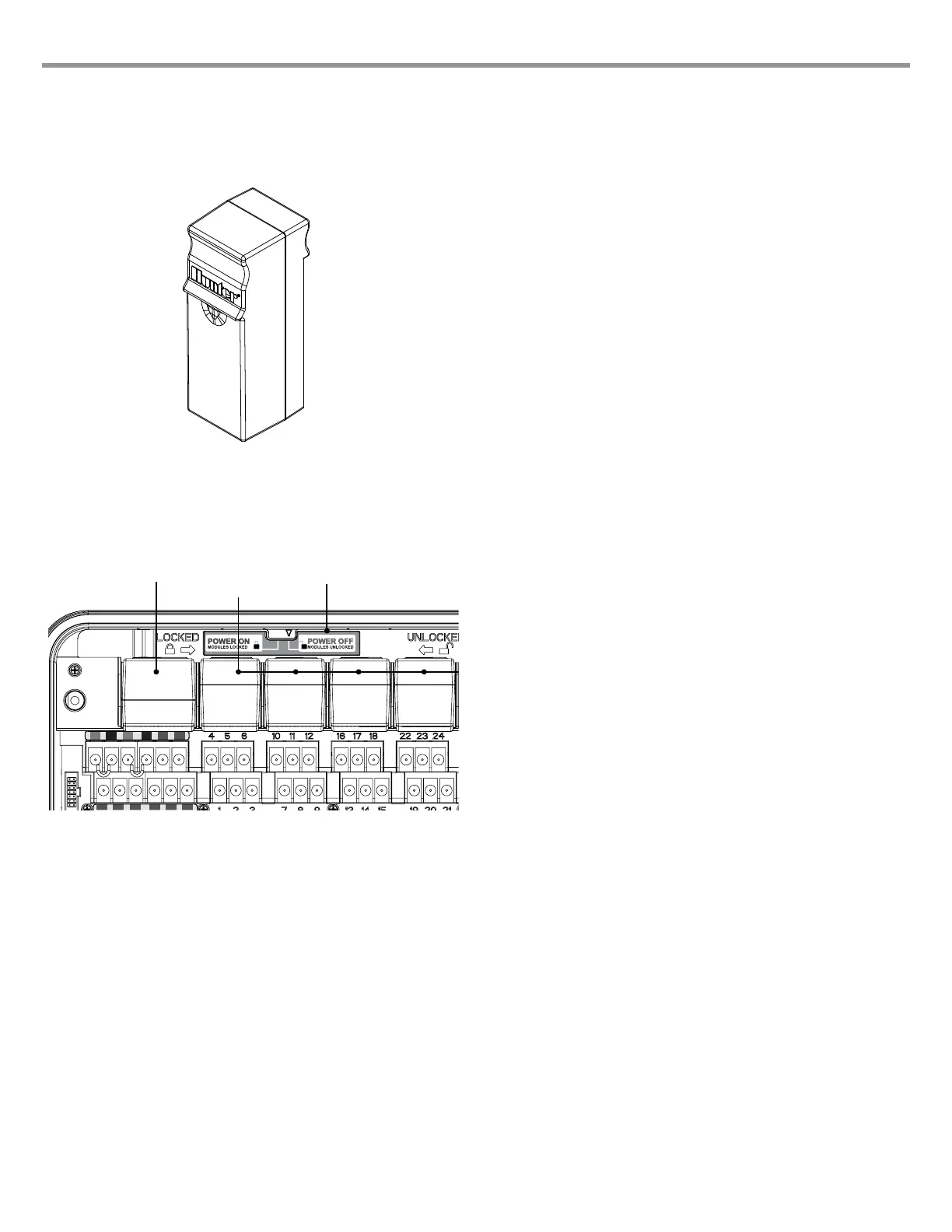

Power Module
Station Modules
Slide Lock
8
