MOUNTING THE CONTROLLER TO A WALL .......................................................................
C
A
B
All necessary hardware is included for most installations.
NOTE: The indoor Pro-C is not weather or water
resistant, and must be installed indoors or in a
protected area. This device is not intended for use
by young children. Never let children play with this
device.
1. Select a location close to an electrical outlet or power supply that is
not controlled by a light switch.
2. Remove the front panel from the Pro-C by first removing the ribbon
connector and then pulling down the hinge release. Removing the
front panel will ease installation of the controller cabinet.

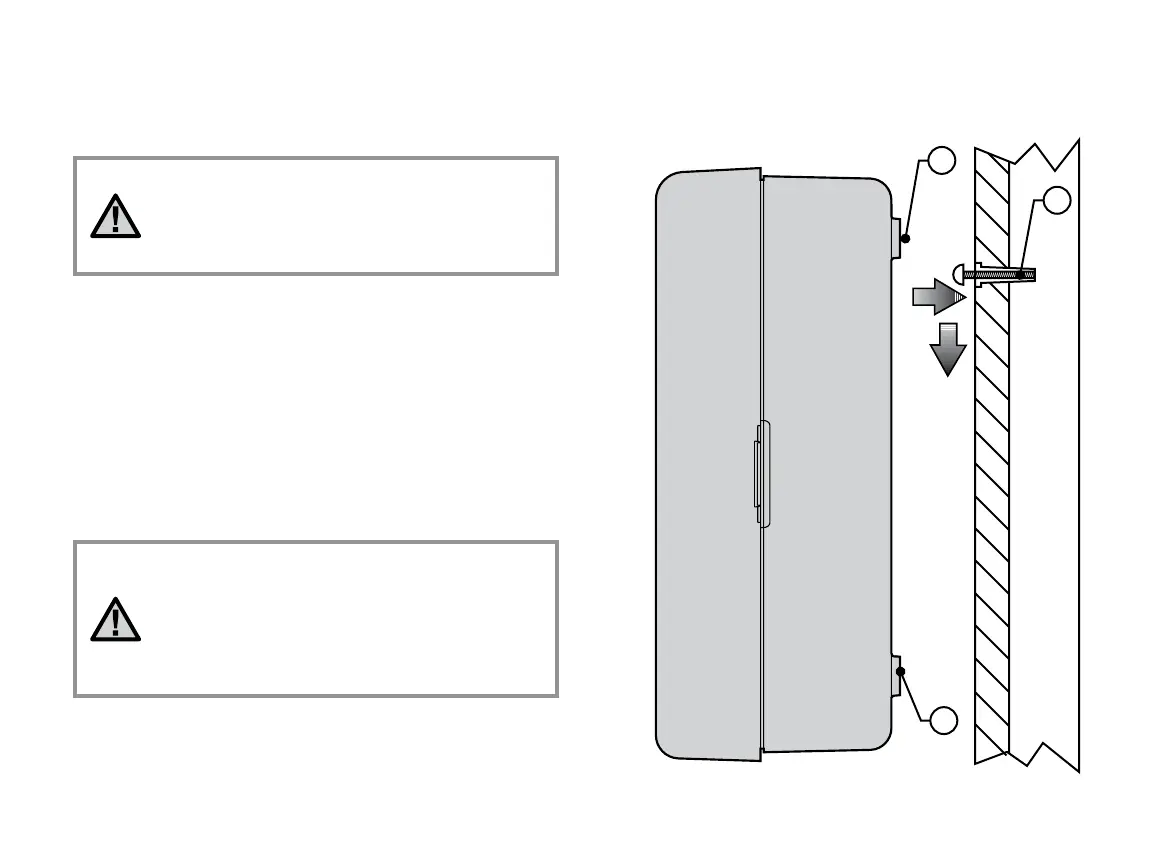

3. Use the hole at the top of the controller as a reference and secure
one 25mm screw (A) into the wall. Note: Install screw anchors if
attaching to drywall or masonry wall.
4. Align controller with the screw and slide the keyhole (B) on top of the
controller over the screw.
5. Secure controller in place by installing screws in the holes (C).
NOTE: Outdoor model is water and weather
resistant. Connecting the outdoor Pro-C to the
primary power should be done by a licensed
electrician following all local codes. Improper
installation could result in shock or fire hazard.
This device is not intended for use by young
children. Never let children play with this device.
For PC-301-A:
If the supply cord is damaged, it must be replaced by the manufacturer
or service agent or a similarly qualified person in order to avoid hazard.
