Hunter X-CORE User Manual

12
ADJUSTMENTS AND OPERATION
Transmitter Operation
There is nothing to set up with the
Wireless Rain-Clik
™
.
Receiver Operation
The receiver has two LED lights that indicate
the state of the system.
1.
SENSOR STATUS LED:
RED – Sensor is wet
(watering disabled)
GREEN – Sensor dry
(watering enabled)
YELLOW – Sensor is in
addressing mode
2. SENSOR BYPASS LED:
RED – Rain sensor is bypassed (even though
the sensor is bypassed, the STATUS LED
will continue to alert you of the state of the
sensor (wet or dry).
OFF – Rain sensor is enabled.
FLASHING RED – Indicates that
communication between the transmitter and
receiver was lost.

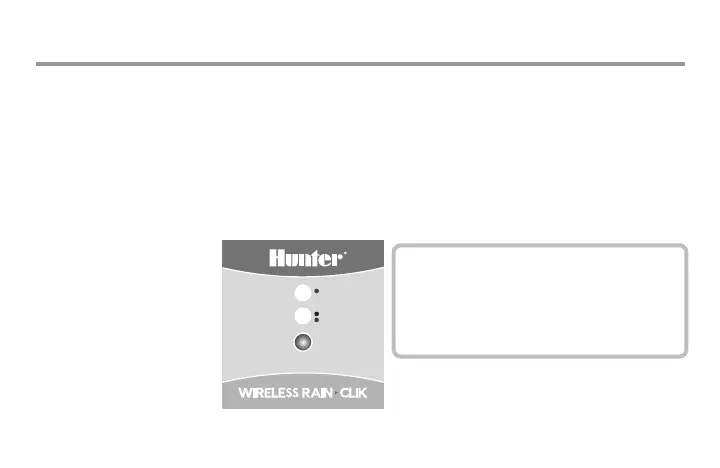

SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS
Note: When you rst apply power to the
receiver, the SENSOR STATUS LED will be RED.
Press the manual test spindle on the transmitter
for 5 seconds and release the spindle. The
SENSOR STATUS LED will turn GREEN indicating
proper operation.

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
