English – 49

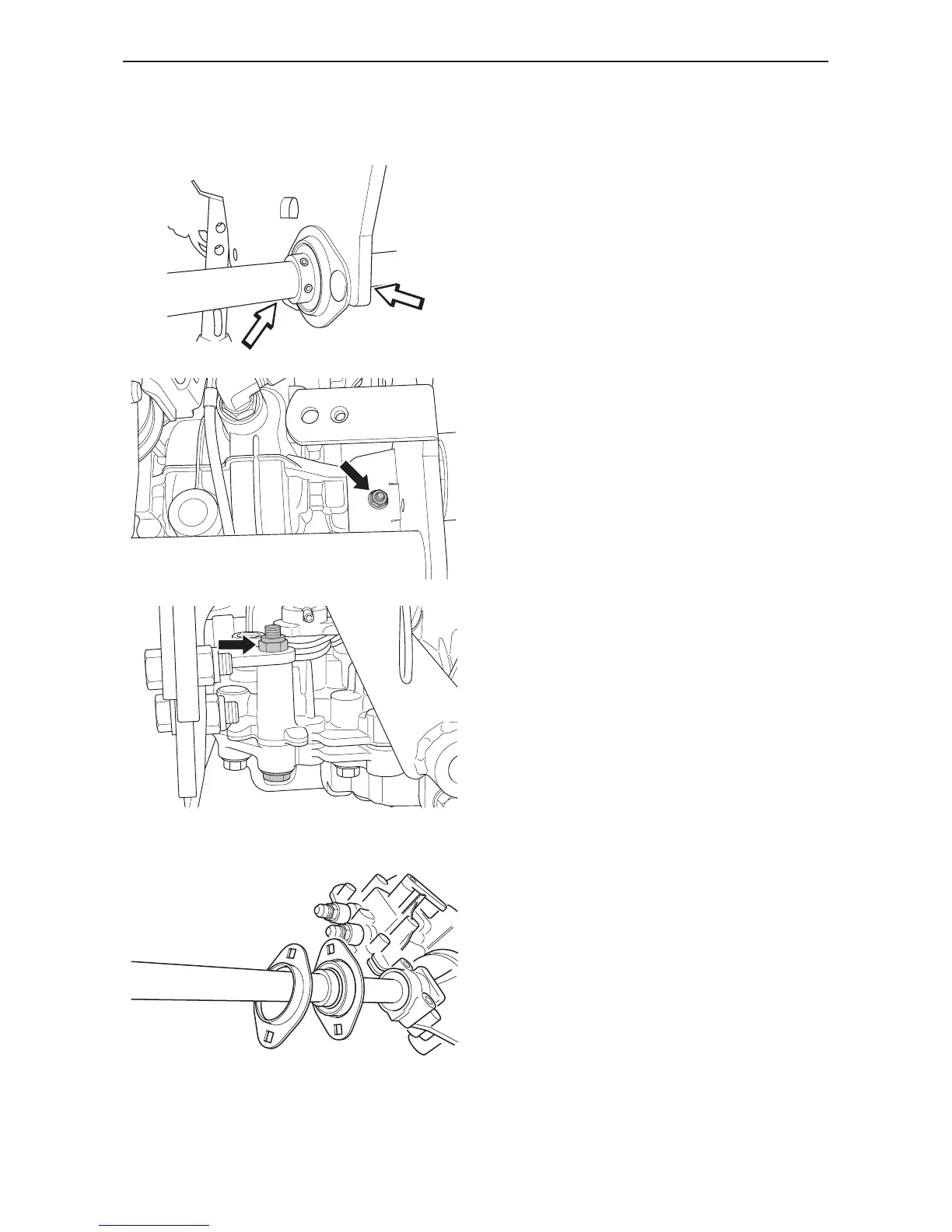

10. Remove the 5 bolts that hold the transmission
and lower it.
11. Loosen the stop screws (2) and remove the
bearing on right side.
Assembly
Assemble the front axle in opposite sequence to
removal. The bearing on the left side is turned so the
grease nipple points rearwards.
1. First assemble all the screws on the front axle
and the bearings loosely in order to guide the
axles into the best position. Then tighten the 3
M12 screws in the front axle and then the wheel
bearings. Make sure that the axles can turn
freely.
2. The stop screws for the right side bearing are
tightened after the 4 screws that hold the wheel
bearings have been tightened.
3. Grease the axles with corrosion protection before
tting the wheels.
4. Fill the hydraulic system with oil.
5. Check and adjust the parking brake cable.
6. Check and adjust speed coordination between
the front wheels and rear wheels as described in
“5.2.10 Wheel speed” on page 31.
Hydraulic system
