12. Put the spring in the spring holder (3)
13. Set the lift lever for the cutting deck in locked
position. The cutting deck lifts.
14. Pull the auger service position lever to up
position.
15. Snap on the front cover.

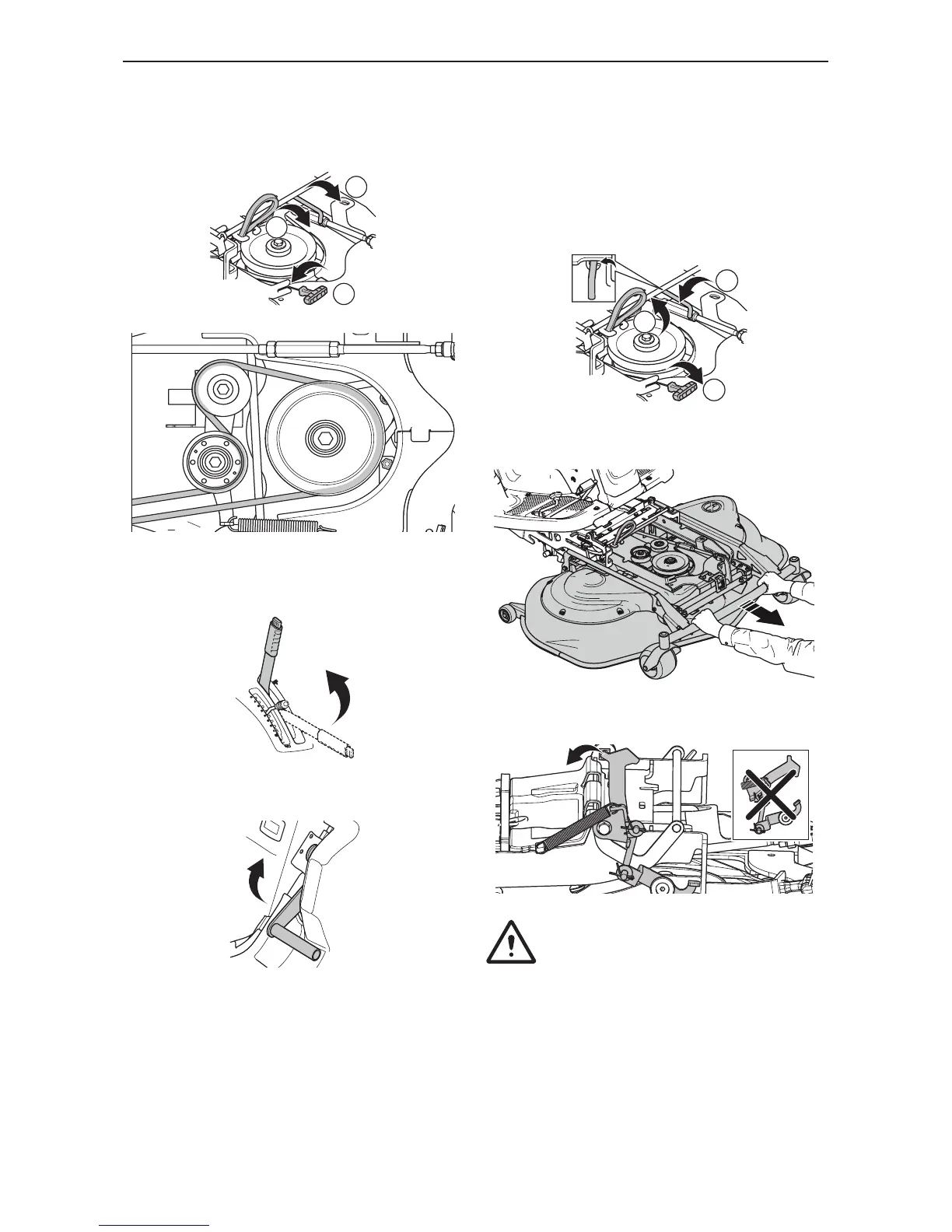

Remove the cutting deck
1. Do steps 1-6 In attach the cutting deck.
2. Pull the spring handle to the right out from the
spring holder to loosen the tension on the drive
belt tension wheel (1)
3. Hold the spring handle with your left hand and lift
o the drive belt with your right hand.
4. Pull the drive belt to the rear under the product.
Do not put it in the belt holder (2).
5. Put the spring handle in the spring holder so that
the spring does not fall down
6. Lift the cutting height stay and put in the stay
holder (3).
1
3
2
7. Grip the front edge of the cutting deck with both
hands and pull forwards until it stops.
8. Lift the service lock to vertical position.
WARNING: Fingers can get seriously
injured in the lock mechanism. To
prevent injury, put the service lock in full
vertical position and hold the front edge
of the cutting deck with both hands when you
continue to the next step.
9. Lift the front edge of the cutting deck until the
service lock rests against the frame and pull the
cutting deck out.
Cutting system
