LIFTING AND LEVELING
Using rigging with a spreader bar, the Super
Plus™ may be lifted into position. The
spreader bar is required to prevent damage to
the unit.
NOTE: This unit is slightly front heavy, due
to the Control Panel. Take necessary
precautions when lifting.
Vibration Isolation Pads are supplied with
each rack. The entire weight of the rack must
rest on these pads, with the rack cross leveled.
To adjust for slightly uneven floors, place
1 6 gauge 3x3-inch galvanized steel shims
between the vibration pads and the floor.
(Shims must be field supplied.)
Revised August 1, 1996 P/N 340272A
1 - 5

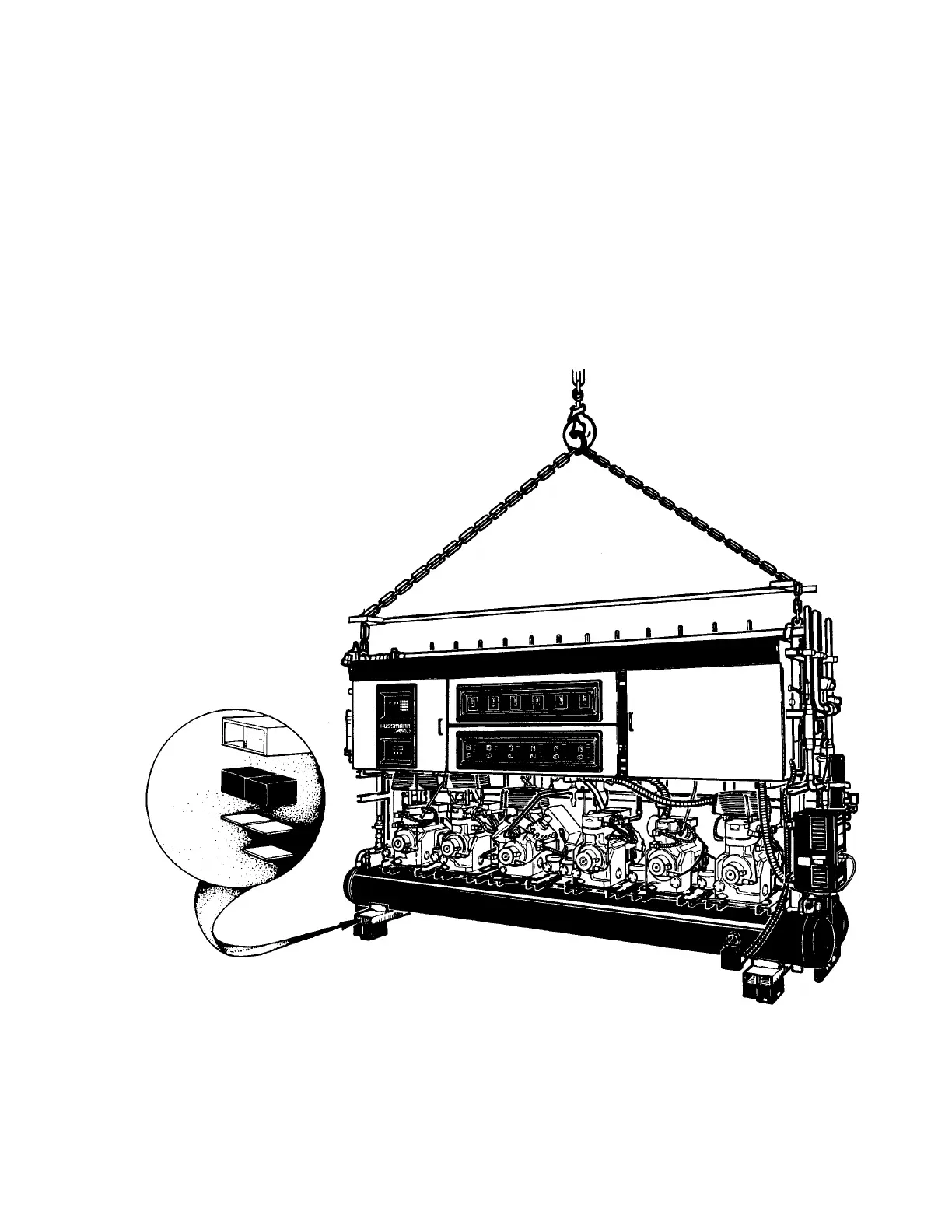

Figure 1-4 – Lifting and Leveling the Super Plus™
