Remote Satellite Components
Each Remote Satellite contains the following:
1. One Copeland, or Carlyle semi-hermetic
compressor with:
a High and Low Pressure Controls,
b. Oil Pressure Safety Control ( when required),
c. Primary Overload Protection, and
d. Compressor Cooling Fans on low
temperature application
2. Factory piping with:
a. Suction and Discharge Stubs, and
b. Oil Float
c. Suction Filter
3. Factory-wired control panel with:
a. Compressor Circuit Breaker and
Contactors, and
b. Compressor Time Delay.
Shipping Damage
All equipment should be thoroughly examined
for shipping damage before and while unloading.
This equipment has been carefully inspected at
our factory and the carrier has assumed responsi-
bility for safe arrival. If damaged, either apparent
or concealed, claim must be made to the carrier.
A p p a rent Loss or Damage
If there is an obvious loss or damage, it must be
noted on the freight bill or express receipt and
signed by the carrier's agent, otherwise, carrier
may refuse claim. The carrier will supply the
necessary claim forms.
Concealed Loss or Damage
When loss or damage is not apparent until after
equipment is uncrated, a claim for concealed
damage is made. Upon discovering damage,
make request in writing to carrier for inspection
within 15 days and retain all packing. The carrier
will supply inspection report and required claim
f o r m s .
N O T E : The compressor is pulled down on
shipping blocks. Before piping, loosen mount-
ing spring by turning spring nuts one full turn
counterclockwise. Shipping blocks can then
be removed, and spring tension is correct.
Lifting and Leveling
Single-tier Satellites require three straps, front
and two sides supported. Two-tier Satellites are
provided with lifting eyes. Use a spreader bar
and observe minimum rigging angle of 45˚.
Remote Satellite Dimensions
Satellite Length Height Depth
(in.) (in.) (in.)
Single-tier 38 40 29.5
Two-tier 38 85 29.5
Remote Satellite Weights
Shipping Weight =
the Sum of Compressor Weights
+ 115 pounds.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA
REMOTE CONDENSER, REMOTE SATELLITE Revised August 1, 1996
5 - 6

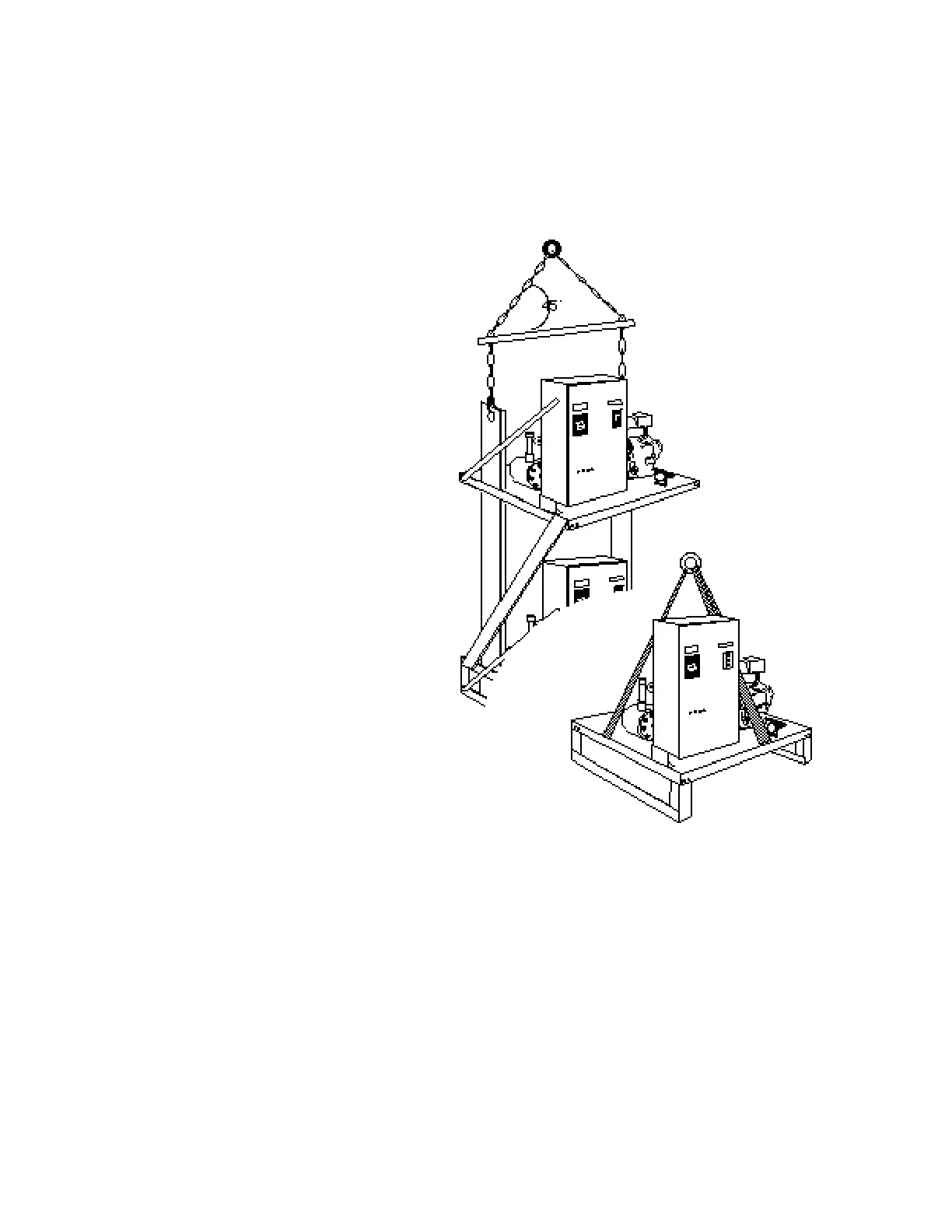

Figure 5-2. Satellite Rigging and Lifting
