Paragon Program Module Replacement
Removal
Turn off power to control panel and meter
check the Paragon to assure technician safety.
Disconnect and mark wires from the switch
at the top rear of the Module. The switch
terminals are C, NC, and NO.
Adjust the timer so all the red tabs on the
Minute Dials are facing directly front of the
timer. At the bottom rear of the Module, pull
down on the plastic latching lever and out on
the bottom of the Module.
Installation
Be sure power is off.
Set all the Modules including the one to be
installed for the same hour on the 24 hour
dials. Set all red tabs on the Minute Dials,
including the one to be installed, in a front
most position.

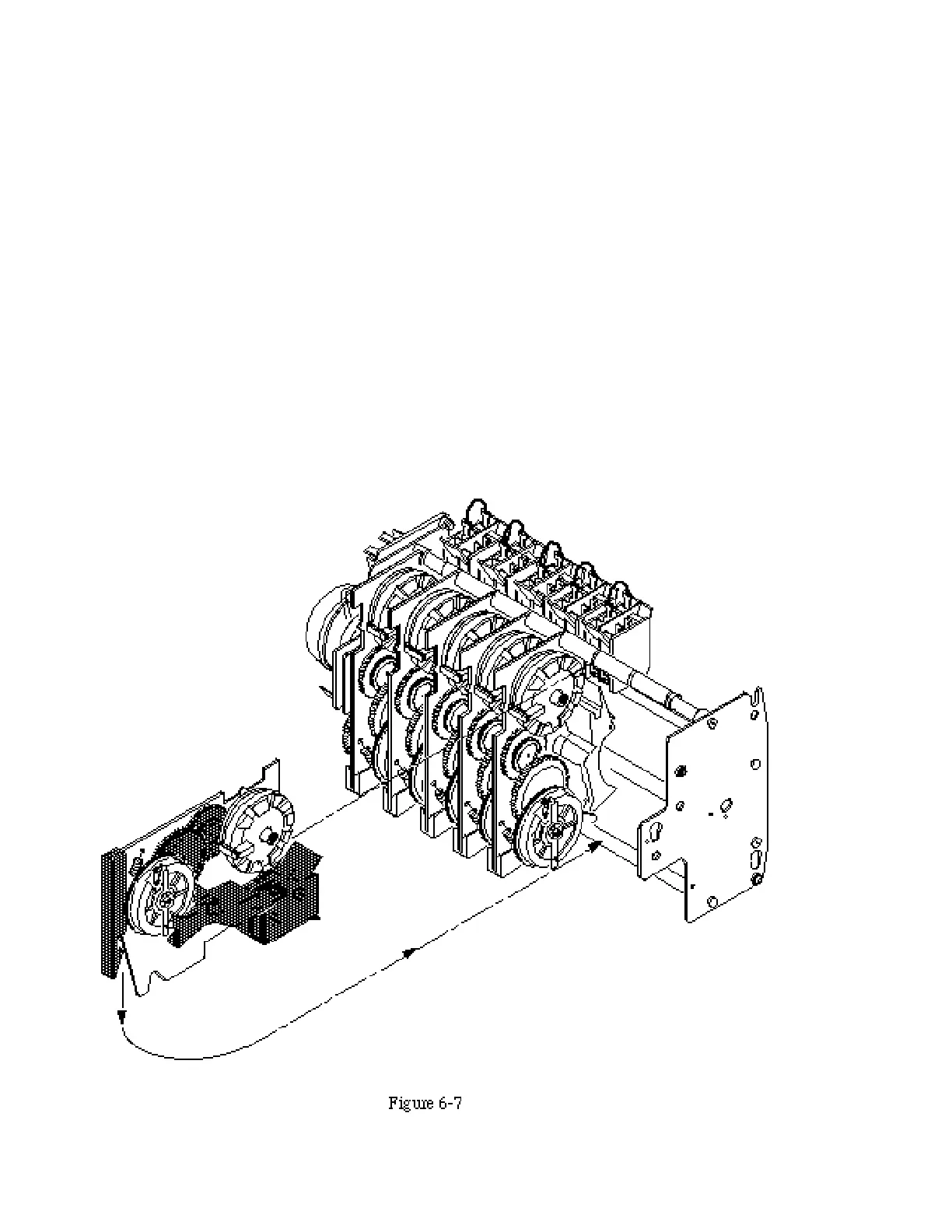

Slip the Module onto the slotted rod of the
frame top and mate the Minute Dial axle into
the axles on both sides of it.
Insure that all the red tabs are aligned, and
replace wires on switch terminals. Reset time
of day and turn on the control circuit.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA
MECHANICAL DEFROST TIMERS Revised August 1, 1996
6 - 6
