Extended racks may have an additional
cross foot. These racks are supplied with
12 isolation pads and require cross leveling
for all six load points.
SETTING WITHOUT A CRANE
In many locations crane lifting may not be
practical. Where possible use equipment
dollies centered under each foot or Johnny
bars. Do not push or pull on any of the
pipes, valves, accessories, or Control Panel
when moving the Super Plus Rack.
For mezzanine installations, a fork lift
(operated within its height and weight
limits) may be used to raise the Rack into
place.
N O T E : This unit is slightly front heavy,
due to the Control Panel. Take necessary
precautions when moving and lifting.
INSTALLATION INSTRUCTIONS Revised August 1, 1996
1 - 6
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA

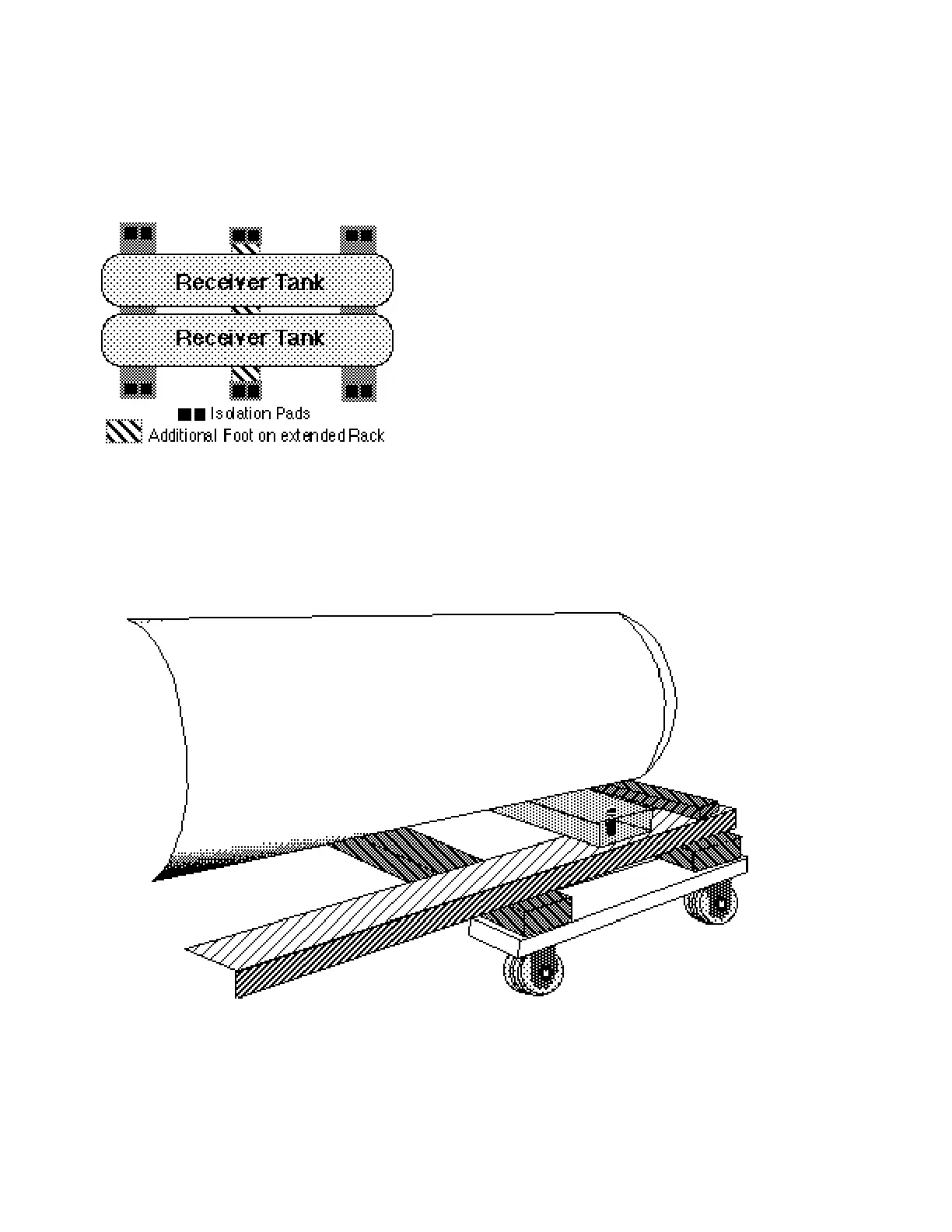

Figure 1-6
Dolly Placement
