Preliminary Electrical Check
Before working on any electric equipment,
disconnect all power supplies to it and verify
that power is off.
After the condenser is connected to its power
supply, check to see that the supply coming to
the condenser disconnect is acceptable
according to the serial plate. Be sure the dis-
connect is open and jumper the fan controls.
Close disconnect and check the following:
• Volt drop and ampere draw
• Leg balance for volts and amperes
• Fan discharge from the top of the
condenser (To reverse, change L1 and L3
at the motor.)
• (If equipped) Gravity dampers moving
freely.
Preliminary Control Setting
Set controls according to the charts in
“Control Settings” for start-up. These settings
will need to be checked and adjusted once the
system is running. The settings listed are
general guidelines and may require some
variation because of local conditions or store
design.
N O T E : Before starting any compressor,s be
sure the condenser serving that unit has power
and that all isolation valves are open.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA
REMOTE CONDENSER, REMOTE SATELLITE Revised August 1, 1996
5 - 2

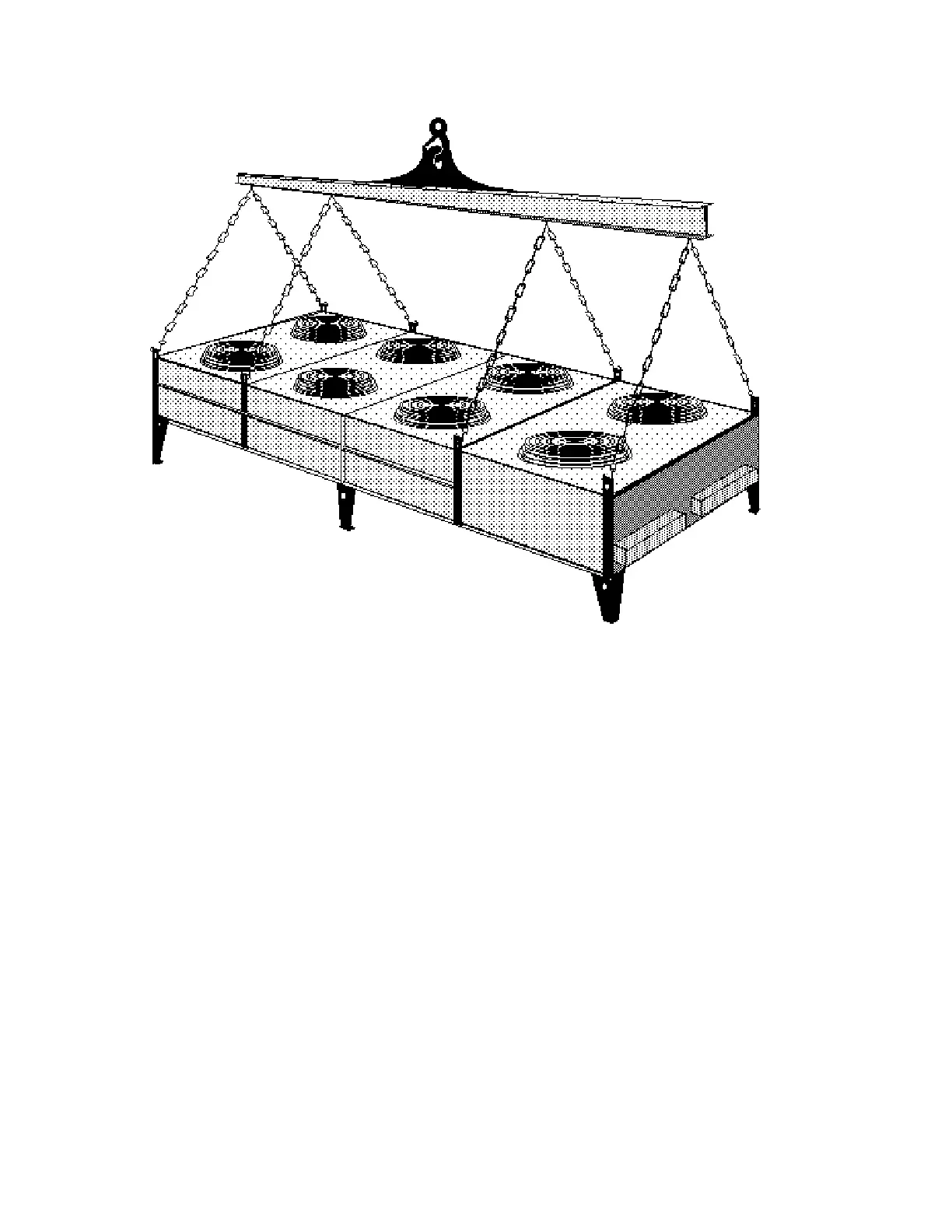

Figure 5-1. Lifting the Condenser
