HEAT RECLAIM

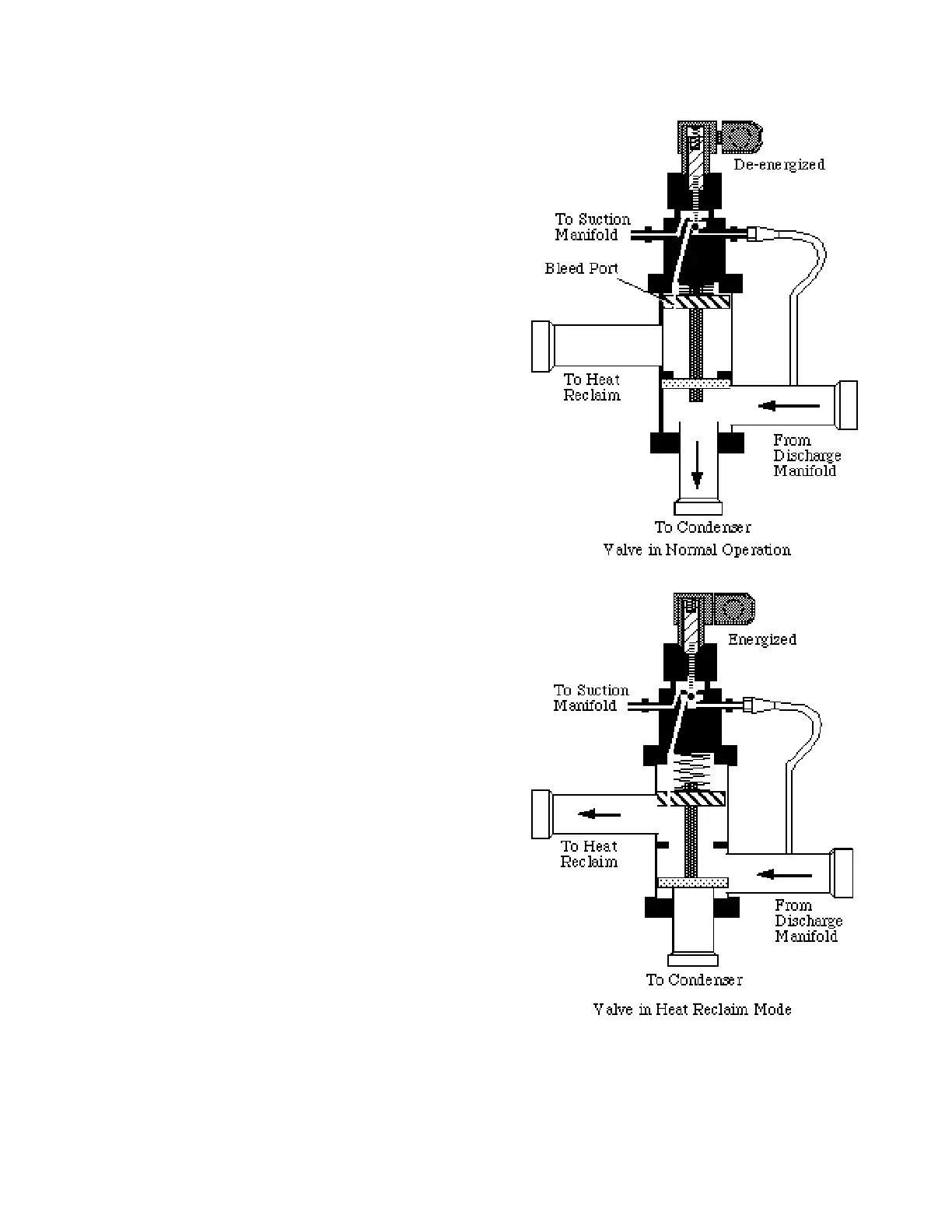

A3 - Wa y Heat Reclaim Valve directs the refriger-
ant to either the Condenser or a Heat Reclaim
Coil. When the solenoid is de-energized, t h e
valve directs the refrigerant to the condenser.
The pilot valve, a check valve, is directional.
When the solenoid is de-energized the high pres-
sure inlet is stopped and the passage between
suction and valve chamber is open. When the
solenoid is energized the suction outlet is
stopped and the passage between high pressure
and the valve chamber is open.
“B” version of the valve has a bleed port
through the drive piston to the suction mani-
fold. The bleed port provides a vent for fluids
trapped in the Heat Reclaim circuits during
normal operation.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA
Revised August 1, 1996 P/N 340272A
