PARAGON DEFROST TIMER
The Paragon Defrost Timer Consists of three
components. These are:
1. The Frame holds a Drive Motor Module,
and as many Program Modules as needed
for the defrost systems.
2. The Drive Motor Module mounts on the
frame end and powers the Program
Modules through the Main Drive Gear.
Note that the Drive Motor and the Defrost
Circuits do not have to be the same
voltage.

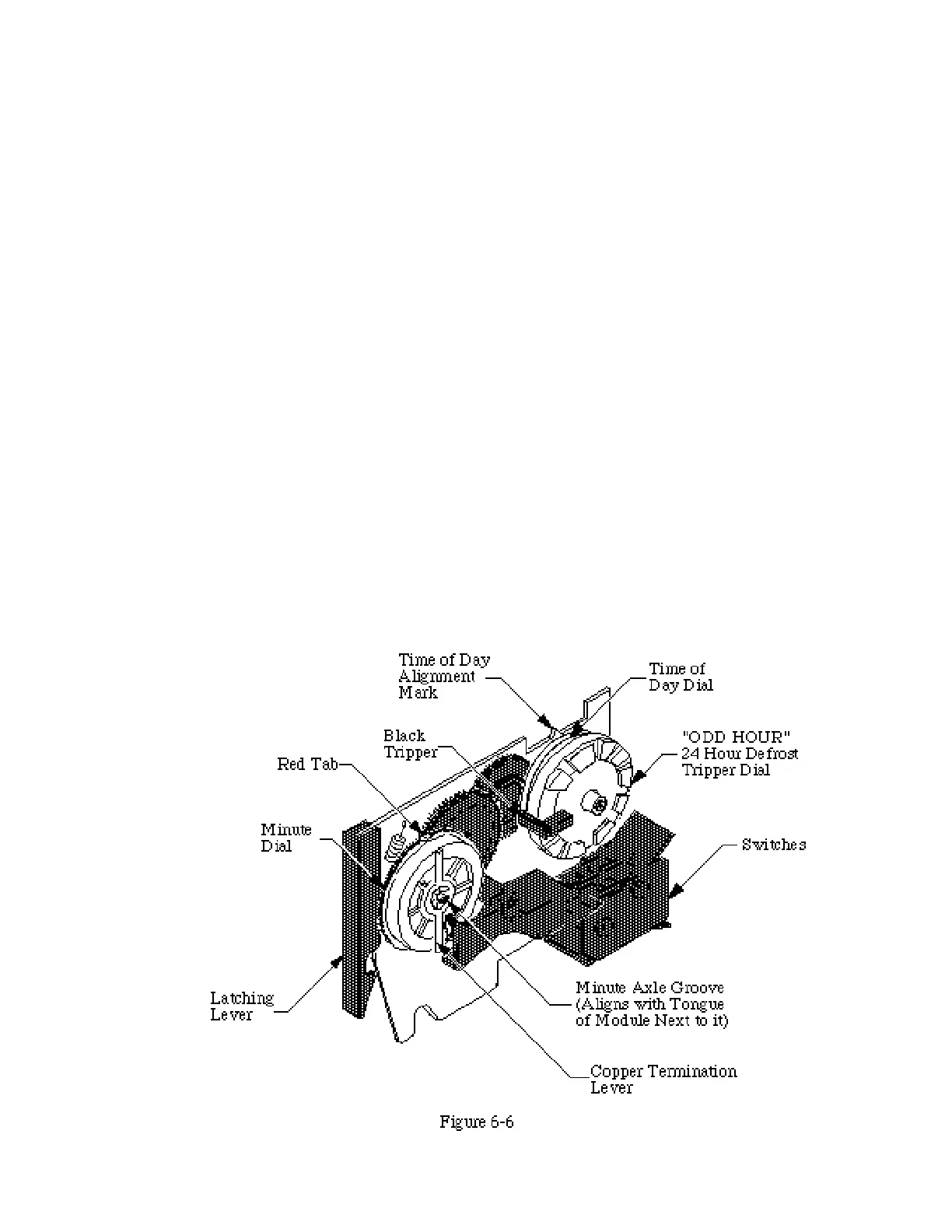

3. P r ogram Modules contain a Time of
Day Dial, which rotates once every
24 hours, and a Minute Dial, which rotates
once every defrost cycle. The Time of Day
Dial is notched to accept defrost start
trippers either on the “EVEN HOUR” or
on the “ODD HOUR” of the 24 hour dial.
These Modules c a n n o t be substituted for
each other, or converted to the other type.
Setting Paragon Defrost Timer
Setting Defrost Start Times
Insert a black tripper in white Program
Module Dial notch for each defrost start time
on a system. Remove any extra trippers.
( P.M. hours are represented by numbers 13
through 24.)
Setting Length of Defrost
Rotate the copper termination lever of the
Minute Dial to the required minutes of
defrost. Be careful not to bend the lever any
further than is necessary to disengage it from
the dial teeth. DO N O T MOVE THE RED
TAB.
Setting the Time of Day
Rotate the Main Drive Gear on the Motor
Module with an upward push of the thumb
until the correct hour on the black Time of
Day Dial aligns with the pointed alignment
mark on the modules.
