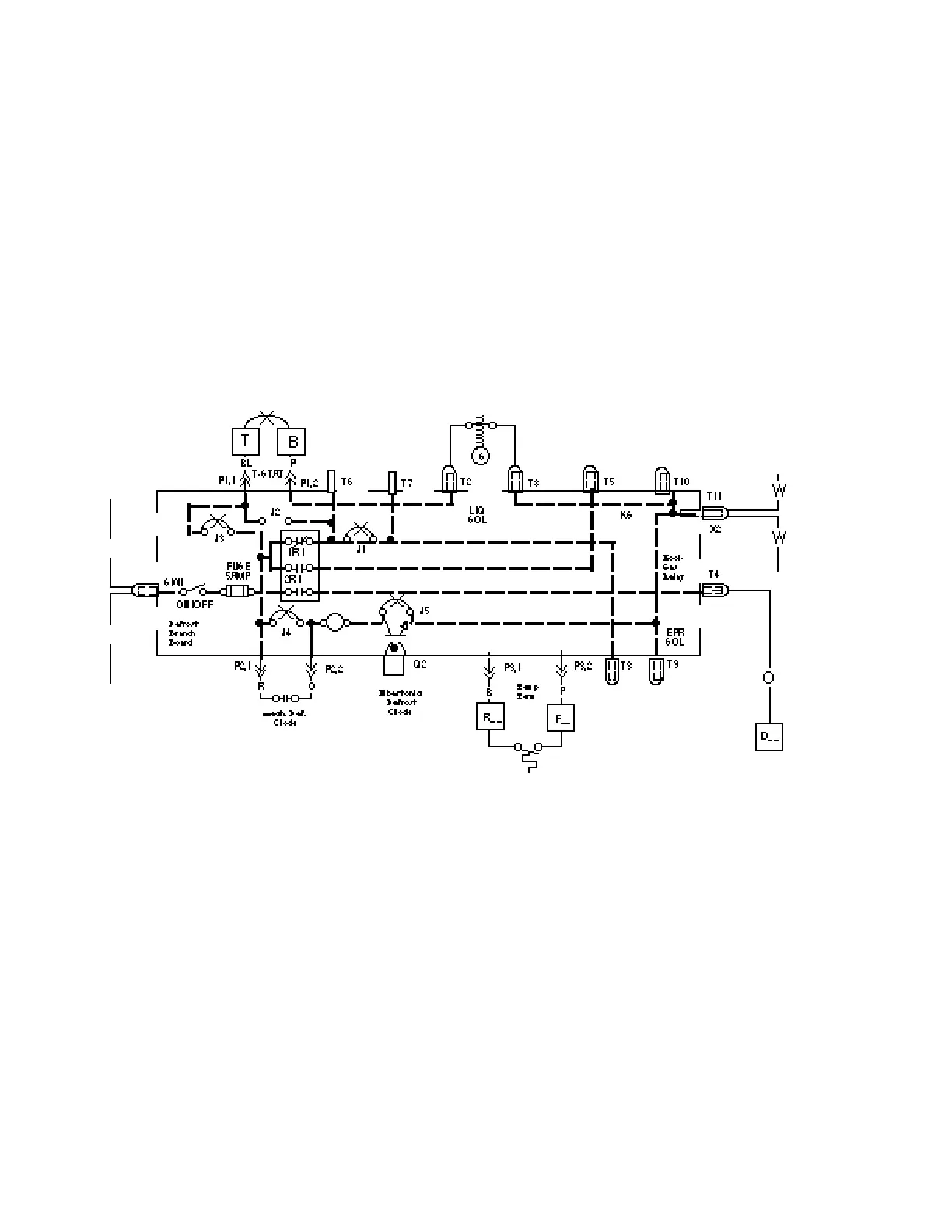

Electric Defrost
When the defrost clock energizes Defrost Relay Coil R1
Contact 1R1 will turn “OFF” the Liquid Line Solenoid
Contact 2R1 will turn “ON” Branch Defrost Contactor in the Electric Defrost Panel
power to T4
thru Orange wire to D__ terminal
thru field wiring to corresponding D__ terminal in Electric Defrost Panel.
