Paragon Program Motor Replacement
Removal
Turn off power to control panel and meter
check the Paragon to assure technician safety
Disconnect and mark wires to motor.

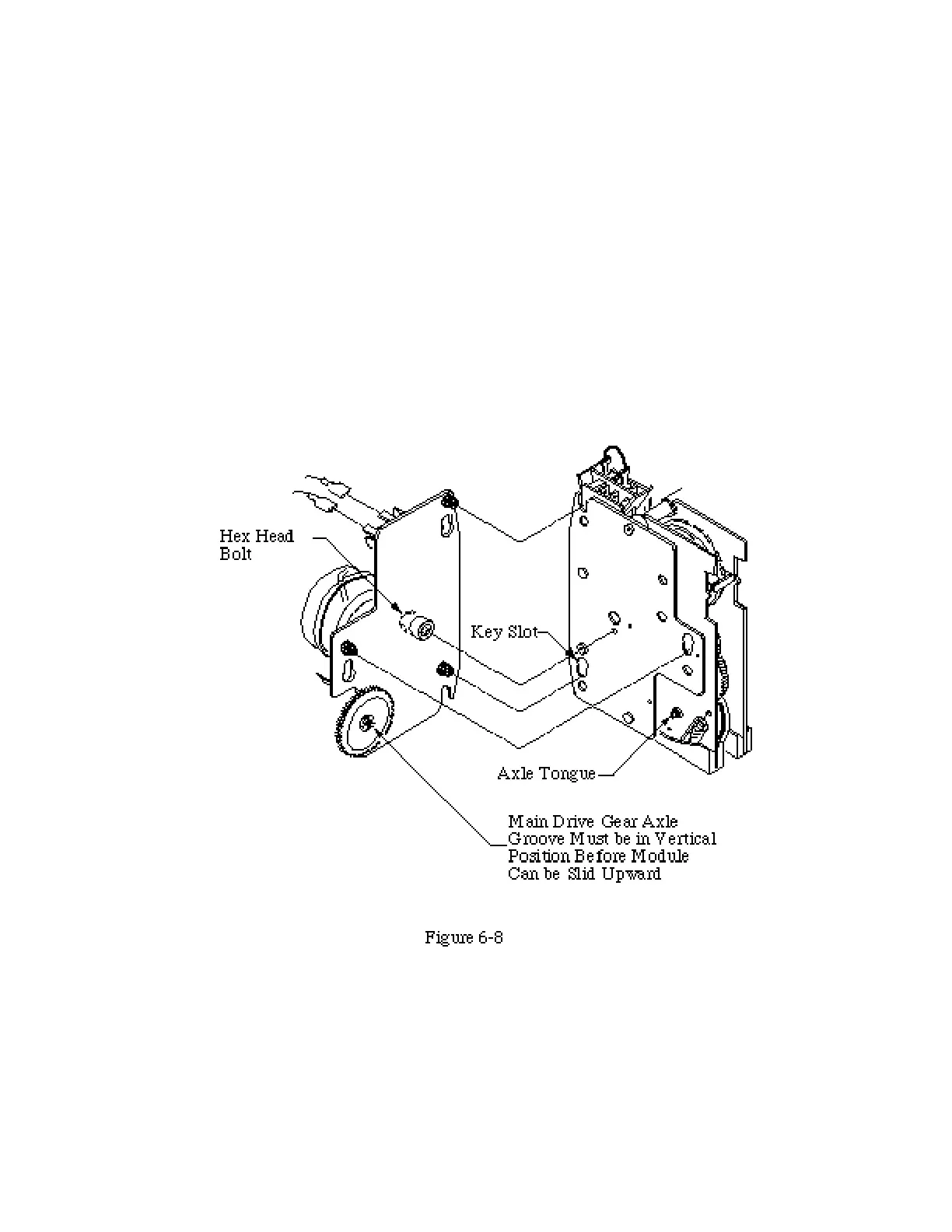

Rotate the main drive gear until the axle
tongues and grooves are vertical (red tabs will
be directly above the axle).
Loosen the hex head bolt next to the motor.
And slide the module up until the three locator
studs clear the key slots.
Installation
Be sure power is off. Check new motor
voltage application.
Rotate the main drive gear until the axle
tongues and grooves are vertical (red tabs will
be directly above the axle).
Place locator studs in key slots and slide
down. Tighten hex head bolt. Reconnect
wires.
