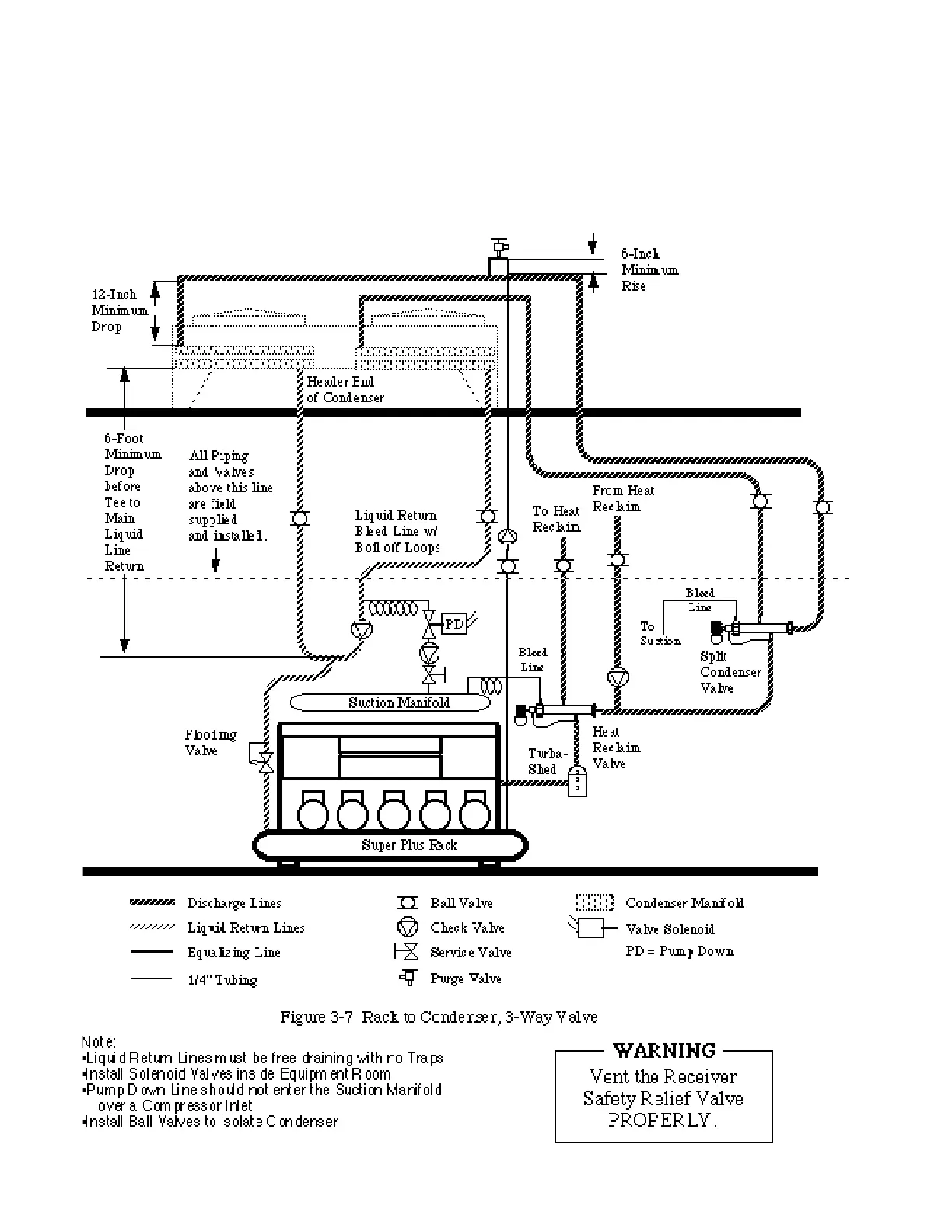

Connecting to Two Manifolds
•Discharge Line will be tee’d upstream of the
manifolds into expansion offsets with at least
a 1 foot drop to the manifolds. Provide Purge
valve at the highest point
•Liquid Return Lines will be teed into the
Main Liquid Return Line after 6 feet of verti-
cal drop from the outlet stubs. Liquid Return
Line will be pitched downstream, and provide
trapless drainage to the Super Plus.
COMPONENT PIPING Revised August 1, 1996
3 - 4
