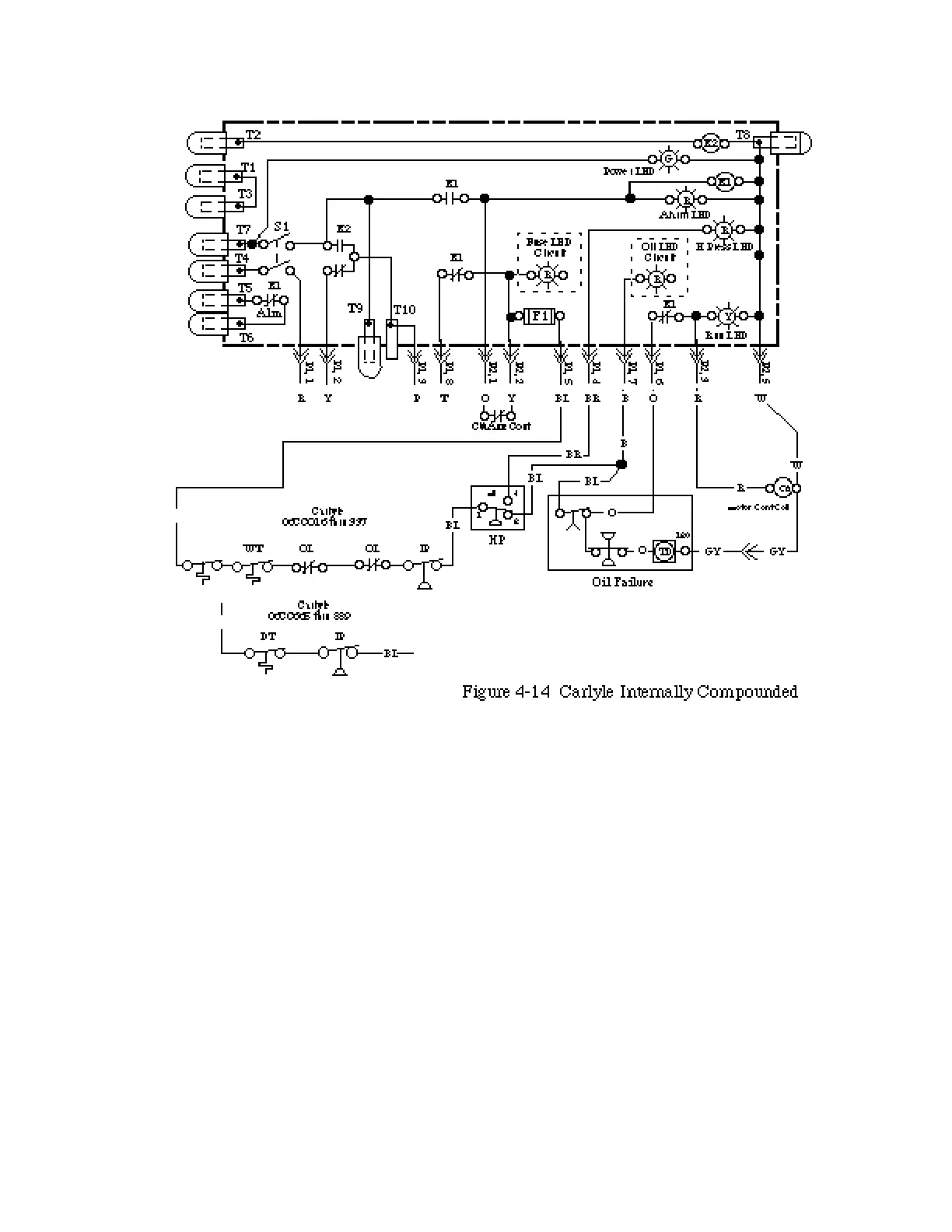

C o m p re s s o r P rotection for C a r l y l e
Internally Compounded Compressors
For these Carlyle Compressors the compres-
sor protection is wired in series with the high
pressure and oil failure controls. In this
position an open circuit will cause an alarm
condition.
The Oil LED lights for both Oil Failure and
compressor protection. To determine which
caused the failure take the following steps in
order.
1 .Turn off the compressor board switch to
reset it, then turn it on. If the compressor starts
the failure was from a compressor protector.
2 .If the compressor does not start, press the
reset for the oil safety. If the compressor starts
the failure was from Oil Failure.
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 • Printed in USA
Revised August 1, 1996 P/N 340272A
4 - 19
