HydraMaster CDS 4.8 - Recovery Tank Assembly Parts List

7-3: Assemblies and Parts Lists

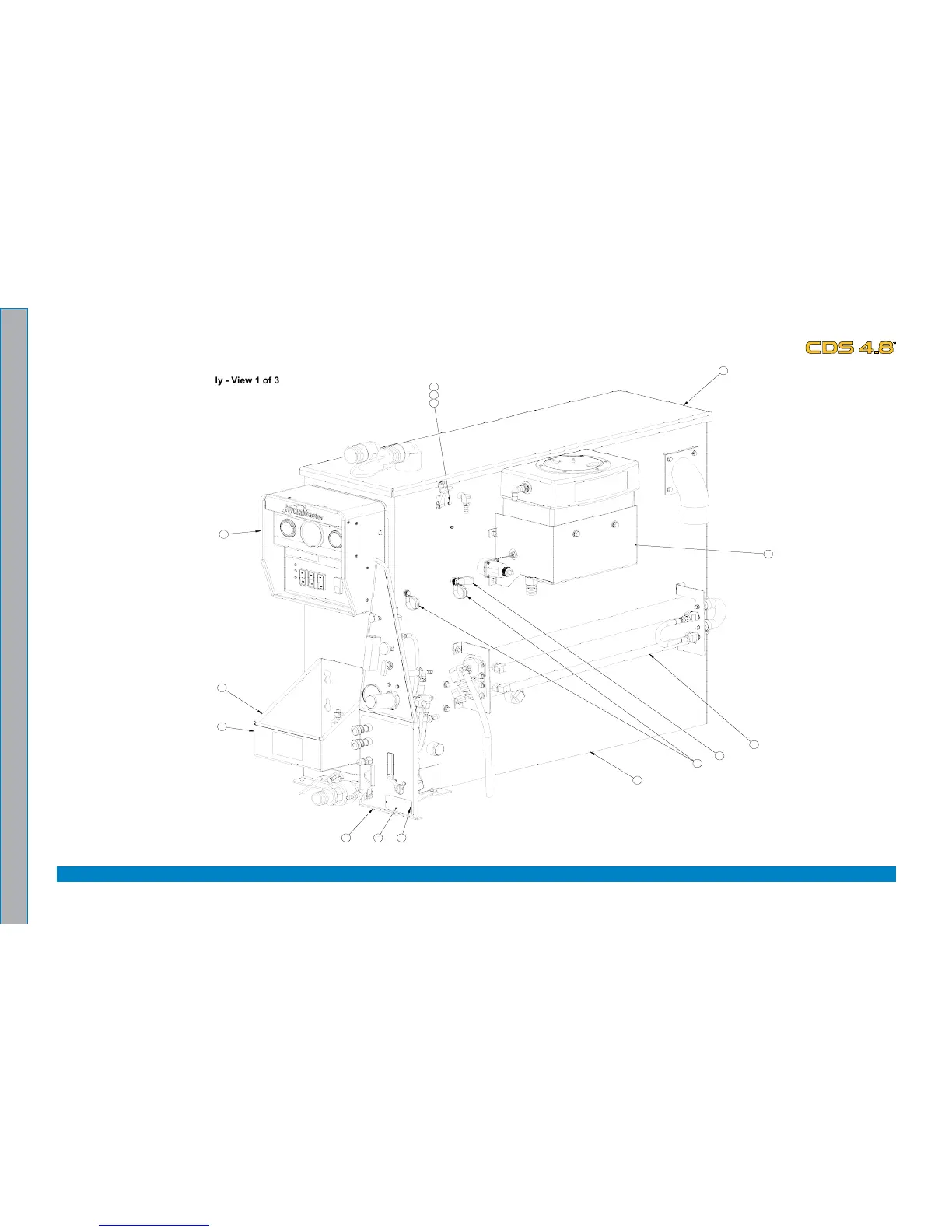

Figure 7-2. Recovery Tank Assembly - View 1 of 3
601-060-801 Rev. C
58
5
13
4
NOTES:
ITEMS ARE PART OF LABEL SET PART NO. 000-081-252. 1.
ITEM NOT SHOWN 2.
12
3
54
2X
62
2X
43
2X
2
59
7
60
47 51
2X
C
B
C
2
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
67 2 WASHER, 3/8" FLAT RUBBER BACKED S. STEEL 000-174-029
66 2 WASHER, 1/4" LOCK S/S S. STEEL 000-174-019
65 18 WASHER, 1/4" FLAT S/S STEEL 000-174-003
64 6 WASHER, 1/4" FLAT RUBBER BACKED 18-8 S. STEEL 000-174-060
63 10 WASHER, #10 FLAT S. STEEL 000-174-001
62 2 WASHER, #10 FLAT RUBBER BACKED 18-8 STAINLESS 000-174-036
61 1 VALVE, 1-1/2" FULL PORT BALL BRASS 000-169-022
60 1 TRIMLOK, 3/8 X 1/8 RUBBER RUBBER 000-131-131
59 1 TRAY, SOAP JUG - COATED 5052-H32 000-166-002
58 1 TANK, 100 GALLON UNIVERSAL RECOVERY - COATED ALUMINUM 000-159-130
57 14 SCREW, 1/4"-20UNC x 1.00" LG. HEX HEAD STEEL 000-143-002
56 2 SCREW, 1/4"-20UNC x 0.50" LG. S/S HEX HEAD S. STEEL 000-143-333
55 2 SCREW, #6-32UNC x 0.50" LG. BUTTON HEAD 18-8 S. STEEL 000-143-539
54 5 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126
53 5 SCREW, #10-24UNC x 0.375" LG. HEX HEAD S. STEEL 000-143-166
52 6 RIVET, AB8-6A ALUMINUM POP ALUMINUM 000-140-023
51 2
RIVET, AB4-3A ALUMINUM POP 1/8" x 1/4" LG. (GRIP RANGE 0.126"-
0.187")
ALUMINUM 000-140-001
50 1 PLUG, 1-1/4" NPT ABS 000-106-046
49 1 PLUG, 1-1/2" NPT ABS - BLACK 000-106-019
48 1 PLUG, 1" NPT BLACK NYLON NYLON 000-106-049
47 1 PLATE, MACHINE SERIAL I.D. 1100-H14 000-105-012
46 8 NUT, 1/4"-20UNC NYLOCK S STEEL 000-094-009
45 6 NUT, 1/4"-20UNC NEOPRENE WELLNUT NEOPRENE 000-094-113
44 2 NUT, #6-32UNC HEX NYLOCK S. STEEL 000-094-063
43 4 NUT, #10-24UNC HEX NYLOCK S. STEEL 000-094-034
42 1 NIPPLE, 1-1/2" NPT X 4" LG. S/S S. STEEL 000-052-921
41 1 LATCH, DASH STRIKE
6061-T6 OR 6063-
T6
000-086-032
40 1 LATCH, BUNGEE VARIOUS 000-086-008
39 1 LABEL SET, DASH ONLY POLYCARBONATE 000-081-099
38 1 LABEL SET, COMMON POLYCARBONATE 000-081-252
37 1 INSERT, 1-1/2" NPT x 1-1/2" BARB (GREY) PVC 000-052-226
36 3 INSERT, #46 (1/4" NPT x 3/8" BARB) BRASS 000-052-102
35 1 HOSE, 5/32" I.D. VACUUM X 82" LG. RUBBER 000-068-978
34 1 HOSE, 5/32" I.D. VACUUM X 52" LG. RUBBER 000-068-977
33 1 HOSE, 3/8" X 15" TEFLON w/ 3/8" JIC END VARIOUS 000-068-801
32 1 HOSE, 3/8" I.D. X 39" LG., CLR W/BRAID PVC 000-068-1037
31 1 HOSE, 3/8" I.D. RUBBER X 31" LG. RUBBER 000-068-1039
30 1 HOSE, 3/8" I.D. RUBBER X 17" LG. RUBBER 000-068-940
29 1 HOSE, 3/4" I.D. X 18 FT - GREEN STRIPE - CUT TO FIT EPDM 000-068-385
28 1 HOSE, 3/16" X 34" TEFLON 1/4" FJIC X 1/4" FJIC VARIOUS 000-068-203
27 1 HOSE, 1/2" X 42.5 LG w/ 3/8" NPT & 3/8" SAE F ENDS VARIOUS 000-068-734
26 1 HOSE, 1/2" I.D. RUBBER X 42" LG. RUBBER 000-068-991
25 1 HINGE, DASH BOX ALUMINUM 000-067-031
24 1 HARNESS ASSEMBLY, CDS w/SOFT START VARIOUS 000-063-081
23 2 GASKET, ADAPTER - URT RUBBER 000-057-206
22 1.5 GASKET, 1/2" X 1/8" X 100' LG. CLOSED CELL VINYL 000-131-002
21 1 GASKET, 1/2" X 1/4" x 18-1/8" LG. VINYL 000-057-026
20 1 FLOAT, LEVER SWITCH VARIOUS 000-157-091
19 1 FILTER, RECOVERY TANK BASKET VARIOUS 000-049-152
18 1 FILTER, FLAT - UNIVERSAL RECOVERY TANK VARIOUS 000-049-153
17 1 FILTER, CHEMICAL INLET HIGH PRESSURE VARIOUS 000-049-118
16 1 FILTER, AIR DEFLECTOR, URT - FABRICATED 5052-H32 000-049-154
15 1 ELBOW, 1/4" NPT STREET x 45° BRASS 000-052-082
14 1 ELBOW, 1/4" NPT STREET BRASS 000-052-085
13 2 CLAMP, 1-1/2" CUSHION LOOP S. STEEL 000-033-053
12 1 CLAMP, 1" CUSHION LOOP VARIOUS 000-033-057
11 7 CLAMP, SIZE #5 HOSE S. STEEL 000-033-005
10 4 CLAMP, SIZE #16 HOSE S. STEEL 000-033-020
9 1 BRACKET, INSTRUMENT PANEL TO VACUUM TANK STABILIZER 5052-H32 000-015-1208
8 1 BRACKET, FLAT FILTER SECURING - UNCOATED 5052-H32 000-015-932
7 1 ASSEMBLY, WATER BOX VARIOUS 601-010-701
6 1 ASSEMBLY, VACUUM RELIEF VALVE - URT VARIOUS 610-026-724
5 1 ASSEMBLY, RECOVERY TANK COVER VARIOUS 601-029-701
4 1 ASSEMBLY, INSTRUMENT PANEL W/O APO E-10 VARIOUS 601-019-801
3 1 ASSEMBLY, DUAL HEAT EXCHANGER VARIOUS 601-006-701
2 1 ASSEMBLY, DASH BOX - HM FACE PLATE E10 VARIOUS 601-018-800
1 1 ADAPTER, Ø3.0 TANK TO x 90° BLOWER HOSE - COATED STEEL 000-001-135
