HydraMaster CDS 4.8 - Dual Heat Exchanger Assembly Parts List

Assemblies and Parts Lists: 7-26
Dual Heat Exchanger Assembly Parts List
1 000-015-1159 BRACKET, HEAT EXCHANGER MOUNTING - COATED 2
2 000-052-064 BUSHING, 1/2 M X 3/8 F 4
3 000-033-003 CLAMP, SIZE #4 MINI HOSE 1
4 000-033-029 CLAMP, SIZE #12 HOSE 2
5 000-052-086 ELBOW, 3/8” NPT STREET 4
6 000-052-589 ELBOW, 3/4” NPT X 3/4” BARB 1
7 000-052-733 FITTING, 3/4” NPT STREET ELBOW - MODIFIED 1
8 000-038-046 HEAT EXCHANGER, WATER TO WATER
HI-PSI 2”x36” 1” NPT ENDS 2
9 000-068-066 HOSE, 3/4” I.D w/ 180~ BEND FOR HX 1
10 000-068-091 HOSE, 3/8” I.D. CLEAR - BULK 1
11 000-068-070 HOSE, 3/8” I.D. X 11” LG w/ 3/8” MPT & 3/8” JIC END 1
12 000-068-196 HOSE, 3/8” x 12” LG. TEFLON w/ JIC ENDS 1
13 000-052-602 INSERT, #1212 BRASS 3
14 000-131-042 INSULATION, 4-1/8” x 1/2” 1
15 000-052-528 NIPPLE, 3/8” M JIC x 3/8” NPT 1
16 000-094-010 NUT, 1/4”-20UNC HEX S/S 8
17 000-094-113 NUT, 1/4”-20UNC NEOPRENE WELLNUT 4
18 000-143-002 SCREW, 1/4”-20UNC x 1.00” LG. HEX HEAD 12
19 000-169-205 VALVE,PETCOCK 90 DEG 1
20 000-174-003 WASHER, 1/4” FLAT S/S 8
21 000-174-002 WASHER, 1/4” FLAT 4
22 000-174-060 WASHER, 1/4” FLAT RUBBER BACKED 4
23 000-174-019 WASHER, 1/4” LOCK 8
Item Part Number Description Qty
* Use P/N 000-038-015 for Product Support (see Figure 7-15).

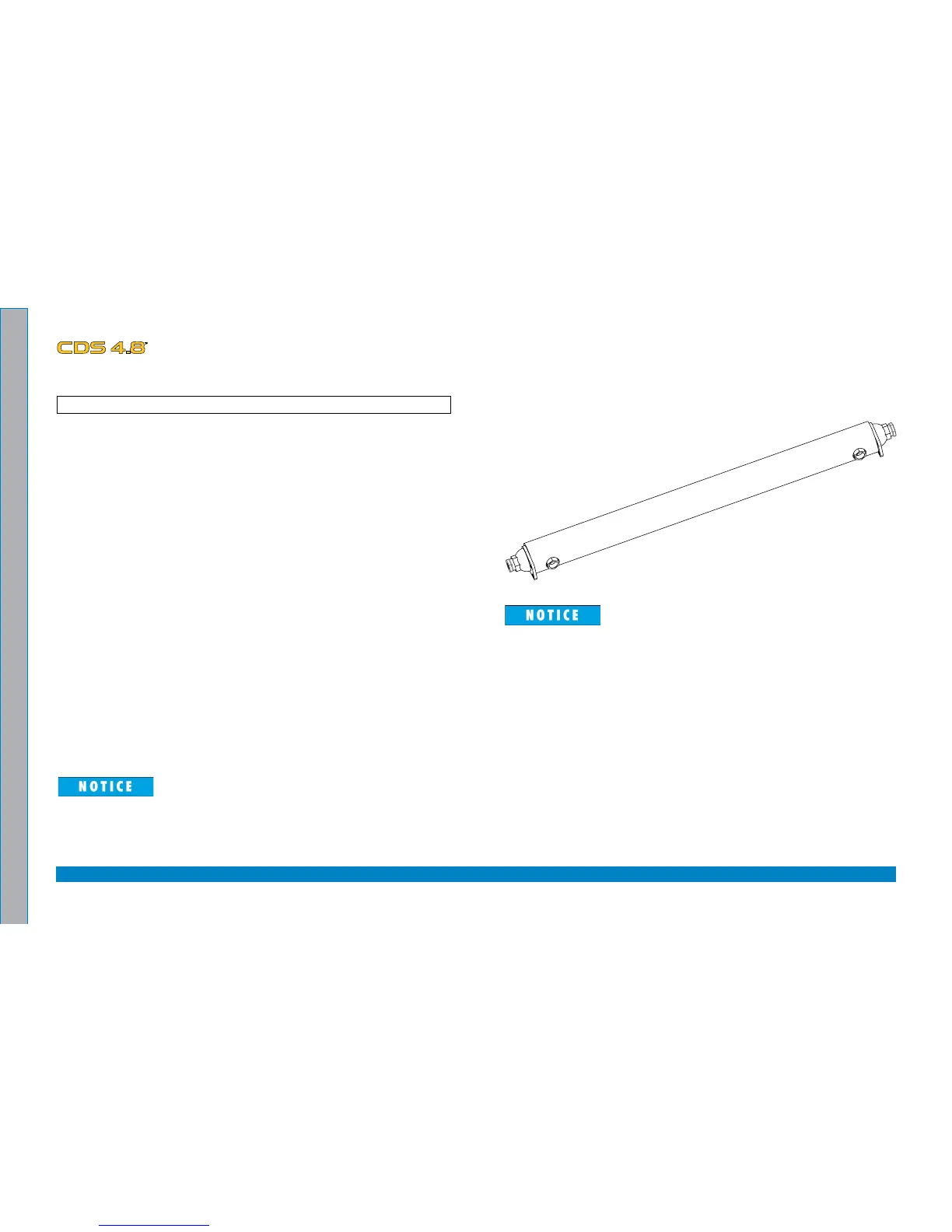

Figure 7-15. CDS Heat Exchanger Core Assembly - Product Support
000-038-015 Rev. C
Order two P/N 000-038-015 when replacing original P/N 000-038-046 and
P/N 000-131-042.
