7-35: Assemblies and Parts Lists

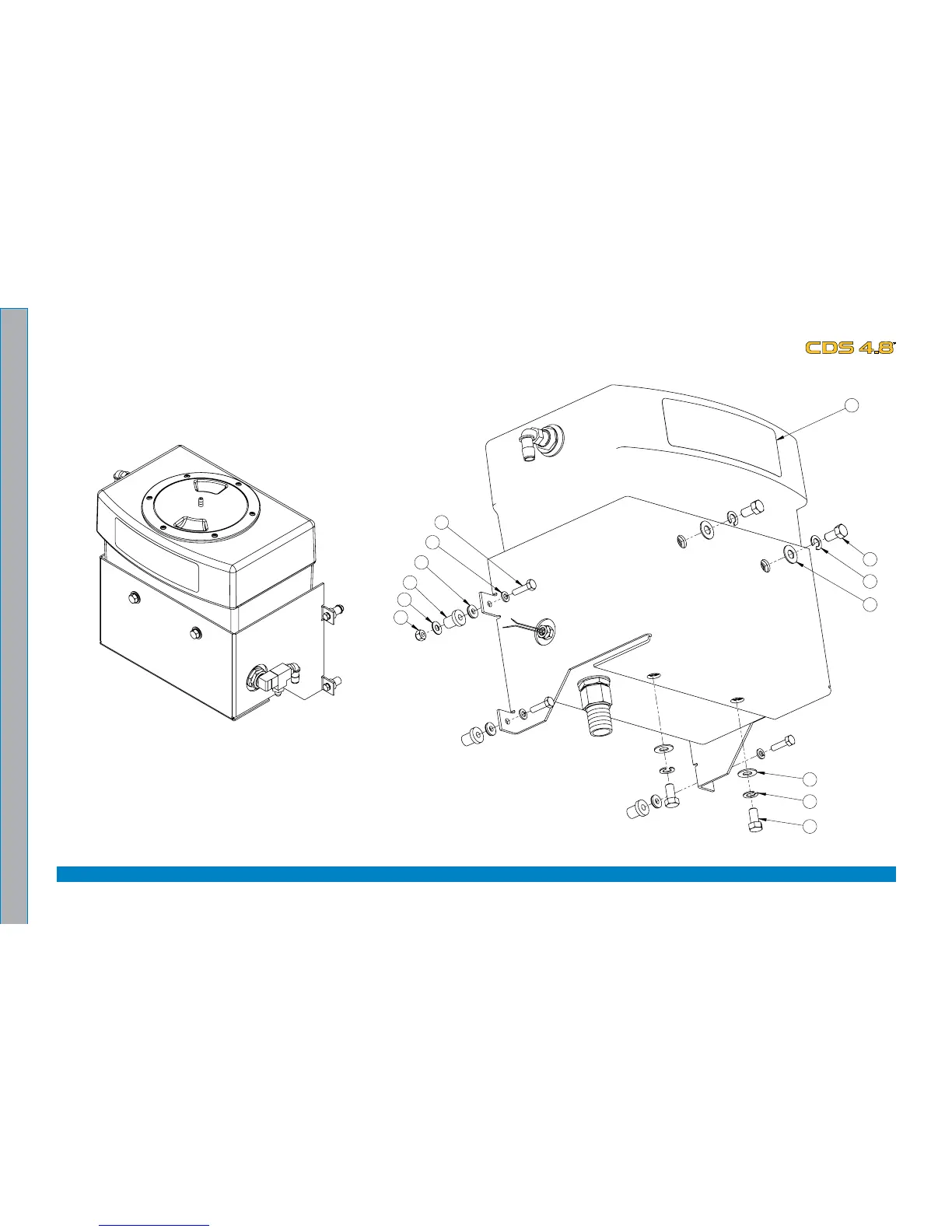

Figure 7-23. Water Box Assembly - View 1 of 2
601-010-701 Rev. H
7
23
22
24
16
13
28
8
5
3
6
1
11
18
6X
8
9
28
16
16
4 17
17
HIDDEN
21
6
10
31
27
2X
29
2X
20
2X
30
4X
19
4X
15
4X
12
20
2X
27
2X
29
2X
26
4X
25
2X
14
2X
H
H
NOTES:
REFERENCE P/N 601-050-105.
1.
2
ITEM
12
IS PART OF LABEL SET P/N 000-081-252.
2
2
G
G
G
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
G
REPLACED 000-033-005 WITH 000-033-003, QTY.
WAS 2; REPLACED 000-052-155 WITH 000-052-156;
REMOVED 000-052-104.
ECR #2717
6/9/2016
PE
C.I.R.
ECRB
H
ADDED 2 QTY. 000-174-003, 2 QTY. 000-094-009.
ECR #2740
10/25/2016
PE
L.O.L.
ECRB
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
31 2
WASHER, 7/8" I.D. x 1.50" O.D. x 0.090" THK.
S. STEEL
000-174-028
30 4
WASHER, 1/4" LOCK
STEEL
000-174-017
29 4
WASHER, 3/8" FLAT
AISI 304
000-174-032
28 2
WASHER, 1.5" O.D. x 1.073" I.D. x 0.075" THK.
S. STEEL
000-174-063
27 4
WASHER, 3/8" LOCK
S. STEEL
000-174-057
26 4
WASHER, 1/4" FLAT RUBBER BACKED
18-8 S. STEEL
000-174-060
25 2
WASHER, 1/4" FLAT S/S
S. STEEL
000-174-003
24 1
TEE, 3/8" NPT MALE STREET
BRASS
000-052-023
23 1
TEE, 1/4" PLASTIC
UHMW
POLYPROPYLEYNE,
BLACK
000-052-156
22 1
TANK, POLY WATER BOX - MODIFIED
POLYETHELYNE
000-159-107
21 1
SWITCH, w/PROTECTOR, POLYPROPELENE BARREL - NC
VARIOUS
000-157-0801
20 4
SCREW, 3/8"-16UNC x 0.75" LG. HEX HEAD GRD. 8
STEEL
000-143-017
19 4
SCREW, 1/4"-20UNC x 1.00" LG. HEX HEAD
STEEL
000-143-002
18 6
SCREW, #8 x 1/2" LG. PAN HEAD
S. STEEL
000-143-314
17 2
O-RING, 1/2" BULK HEAD
BUNA-N
000-097-041
16 3
NUT, 1"-14UNS BRASS
UNS#36000
000-094-097
15 4
NUT, 1/4"-20UNC NEOPRENE WELLNUT
NEOPRENE
000-094-113
14 2
NUT, 1/4"-20UNC NYLOCK
S STEEL
000-094-009
13 1
NIPPLE, 3/8" NPT x 1/4" M SAE BRASS
000-052-662
12 1
LABEL, WATER BOX
POLYCARBONATE
000-081-335
11 1
INSERT, #F1216 (3/4" FPT x 1" BARB)
BRASS
000-052-754
10 1
HOSE, 3/8" I.D. CLEAR w/ BRAID SOLUTION
VARIOUS
000-068-326
9 1
ELBOW, 3/8" NPT STREET
BRASS
000-052-086
8 2
ELBOW, 3/8" NPT x 1/2" HOSE
GFBN
000-052-355
7 1
COVER, 6" ACCESS
POLYPROPYLENE
000-041-005
6 2
CLAMP, SIZE #4 MINI HOSE
S. STEEL
000-033-003
5 1
BULKHEAD, 3/8" FPT x 3/8" FPT
BRASS
000-052-660
4 1
BULKHEAD, 1/2" FPT
UNS C36000 / ASTM
B16 H02
000-052-728
3 1
BRACKET, WATER BOX MOUNTING - COATED
ASTM A1008 CS
TYPE B
000-015-938
2 1
ASSEMBLY, ROBERT FLOAT VALVE
VARIOUS
000-169-235
1 1
ASSEMBLY, DIFFUSER FILTER
VARIOUS
000-049-151
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
601-010-701
REV
ASSEMBLY, WATER BOX
H
- - -
CDS 4.8
601-060-701
- - - - - -
- - -- - -
- - - - - -
- - - - - -
W.B.
C.I.R.
L.O.L.
DRAWN
CHECKED
APPVD
06/06/2007
06/06/2007
10/25/2016
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
30.29
