HydraMaster CDS 4.8 - Blower Assembly Parts List

Assemblies and Parts Lists: 7-10

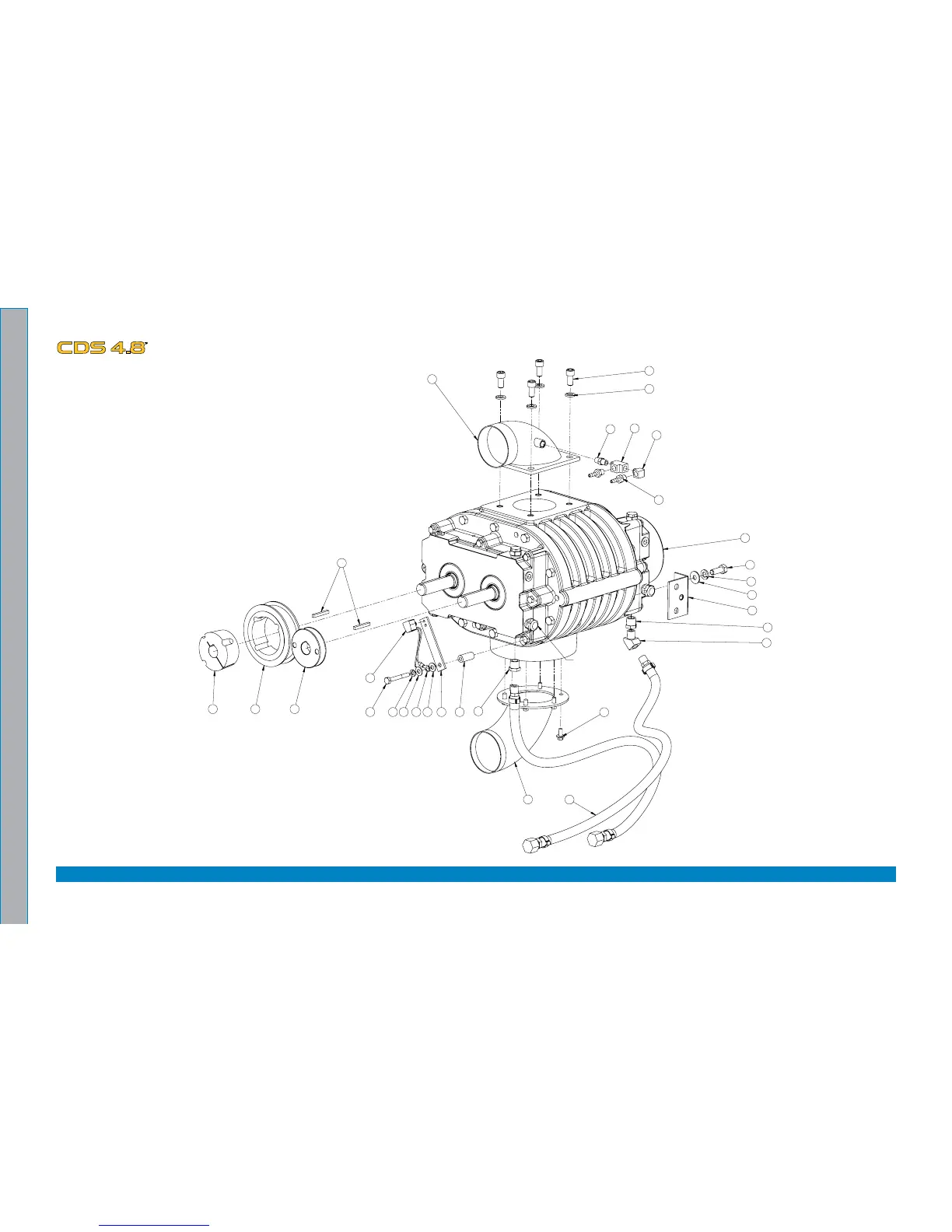

Figure 7-7. Blower Assembly
601-002-701 Rev. E
3
17
2X
1
2
16
6X
4
2X
26
2X
6
18
4X
25
4X
8
6
25
2X
12
11
21
9
10
2X
7 14 13
15 24 23 22 23 5 20
19
27
2X 000-026-112
CAP, OIL SIGHT GLASS
2 X
E
D
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
27 2 HOSE, CDS BLOWER OIL DRAIN VARIOUS 000-068-149
26 2 WASHER, 5/16" FLAT, USS STEEL 000-174-004
25 6 WASHER, 3/8" LOCK STEEL 000-174-021
24 1 WASHER, 1/4" LOCK S. STEEL 000-174-019
23 2 WASHER, 1/4" FLAT S/S S. STEEL 000-174-003
22 1 TERMINAL,5/16 RING-16 AWG VARIOUS 000-037-015
21 1 TEE, 1/8" FPT BRASS 000-052-092
20 1 SPACER, TACH, SENSOR STEEL 000-154-153
19 1 SENSOR, CDS MAGNETIC TACH VARIOUS 000-149-010
18 4 SCREW, 3/8"-16UNC x 0.75" LG. SOCKET HEAD STEEL 000-143-094-1
17 2 SCREW, 3/8"-16UNC x 1" LG. HEX HEAD - GRADE 8 STEEL 000-143-018
16 6 SCREW, 1/4"-20UNC x 0.50" LG. WHIZ LOCK S. STEEL 000-143-141
15 1 SCREW, 1/4"-20UNC x 2" LG. HEX HEAD GRADE 5 STEEL 000-143-373
14 1 PULLEY, 40 TOOTH GT2 8MX-10S-21 ENGINE & BLOWER STEEL 000-109-057
13 1 PULLEY, 2 3/4" x 7/8" PUMP DRIVE - MACHINED STEEL 000-109-009
12 2 KEY, 3/16" X 1 1/2" LONG STEEL 000-077-011
11 1 NIPPLE, 1/8" NPT HEX BRASS 000-052-069
10 2 INSERT, #23 (1/8" NPT x 3/16" BARB) BRASS 000-052-293
9 1 ELBOW, 1/8" NPT STREET BRASS 000-052-084
8 1 ELBOW, 1/4" NPT STREET x 45° BRASS 000-052-082
7 1 BUSHING, 7/8" TAPER-LOCK STEEL 000-020-020
6 2 BUSHING, 3/8" NPT x 1/4" FPT BRASS 000-052-061
5 1 BRACKET, TACH. MAGNETIC EXTENSION - COATED STEEL 000-015-930
4 2 BRACKET, BLOWER MOUNTING - COATED
ASTM A1008
CS TYPE B
000-015-801
3 1 BLOWER, 4007 DOMINATOR STEEL 000-111-147
2 1 ADAPTER, BLOWER OUTLET - COATED STEEL 000-001-042
1 1 ADAPTER, BLOWER INLET - COATED STEEL 000-001-041
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
D REPLACED 001-090 WITH 001-041.
ECR #2695
1/13/2016 PE M.B.B. M.B.B.
E
REPLACED 6QTY. PN 143-001 WITH 6 QTY. 143-141;
REMOVED 6 QTY. PN 174-003 AND 6 QTY. 174-019.
ECR #2701
04/12/2016 PE C.I.R.
ECRB
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:2
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
601-002-701
REV
ASSEMBLY, BLOWER
E
ZR-CDS 601-004-741
601-004-701
CDS 4.8
- - -- - -
- - - - - -
601-004-701 CDS CTS 4.8
M.B.B.
M.B.B.
KW
DRAWN
CHECKED
APPVD
08/04/2009
01/13/2016
04/12/2016
TOLERANCES
.X=
.1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
149.01
