HydraMaster CDS 4.8 - Differential Valve Assembly Parts List; Figure 7-20. Differential Valve Assembly

Assemblies and Parts Lists: 7-32

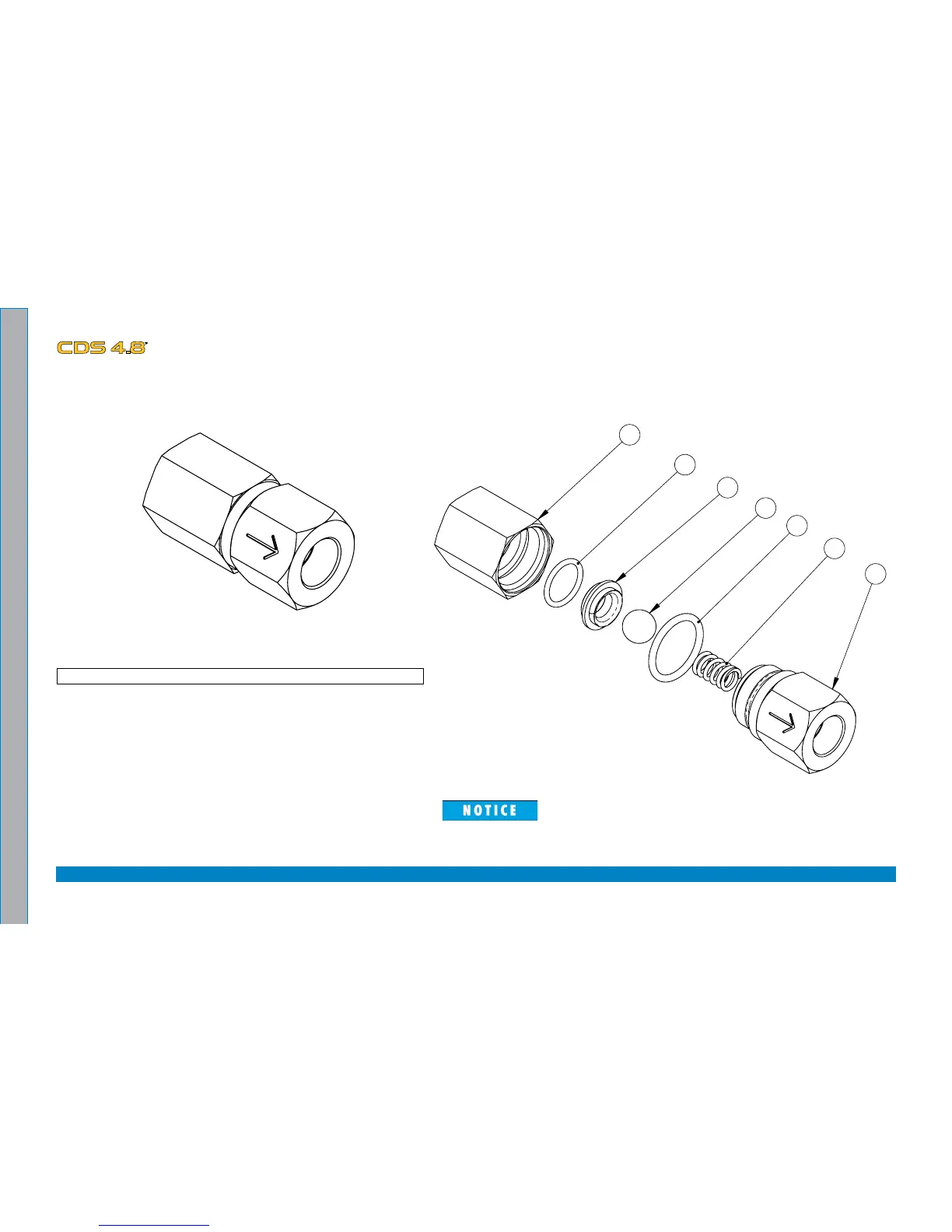

Figure 7-20. Di󰀨erential Valve Assembly
000-169-236 Rev. B
3
7
1
6
2
4
5
Di󰀨erential Valve Assembly Parts List
1 000-005-012 Ball, 0.500 dia S/S 1
2 000-107-258 Body, Di󰀨erential Check Valve 1
3 000-106-180 Cap, Di󰀨erential Check Valve 1
4 000-097-056 O-Ring, Check Valve Plug, AN Size 1
5 000-097-054 O-Ring, Chemical Pump Valve Viton-Parker 1
6 000-148-012 Seat, Di󰀨erential Check Valve 1
7 000-155-106 Spring, Di󰀨erential Check Valve 1
Item Part Number Description Qty
:
Apply O-ring grease or equivalent to items 5 and 4 prior to installation.
