HydraMaster CDS 4.8 - Dash Box Assembly Parts List

Assemblies and Parts Lists: 7-22

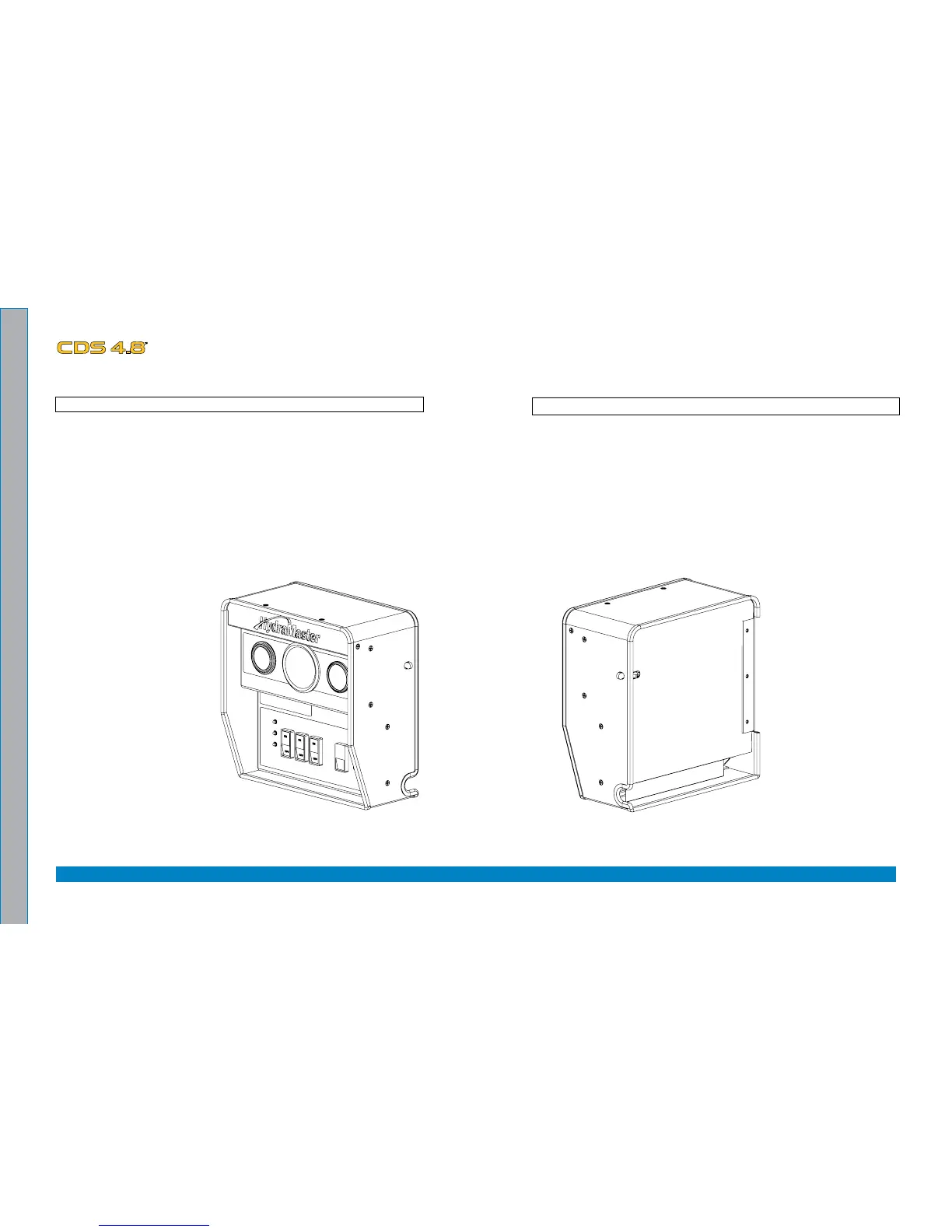

Dash Box Assembly Parts List
Item Part Number Description Qty
1 601-020-701 ASSEMBLY, DASH PANEL 1
2 000-013-025 BOX, DASH - COATED 1
3 000-015-183 BRACKET, GROUNDING BUS - FABRICATED 1
4 000-056-006 FUSE HOLDER, IN-LINE - WEATHERPROOF 2
5 000-056-010 FUSE, 25 AMP 1
6 000-056-003 FUSE, 15 AMP PLUG IN 1
7 000-060-002 GROMMET, LARGE WIRING 2
8 000-086-104 LATCH, DASH SECURING 1
9 000-084-016 RELFECTOR, 1.625” x 11” NEW HM LOGO 1
10 000-143-046 SCREW, #6-32 x .500” LG. PHP 2
11 000-143-166 SCREW, #10-24UNC x 0.375” LG. HEX HEAD 12
12 000-143-114 SCREW, #10-24UNC x 0.50” LG. FLAT HEAD PHILLIPS 12
13 000-143-126 SCREW, #10-24UNC x 0.50” LG. HEX HEAD 3
14 000-108-013 SHIELD, DRIP - DASH 1
15 000-157-022 SWITCH, RELAY 2
16 000-131-027 TRIMLOK, 1/8” I.D. x 3/8” x 105” LG 1
17 000-174-043 WASHER, #6 LOCK 2
18 000-174-015 WASHER, #10 OUTSIDE STAR 3
Item Part Number Description Qty
