7-31: Assemblies and Parts Lists

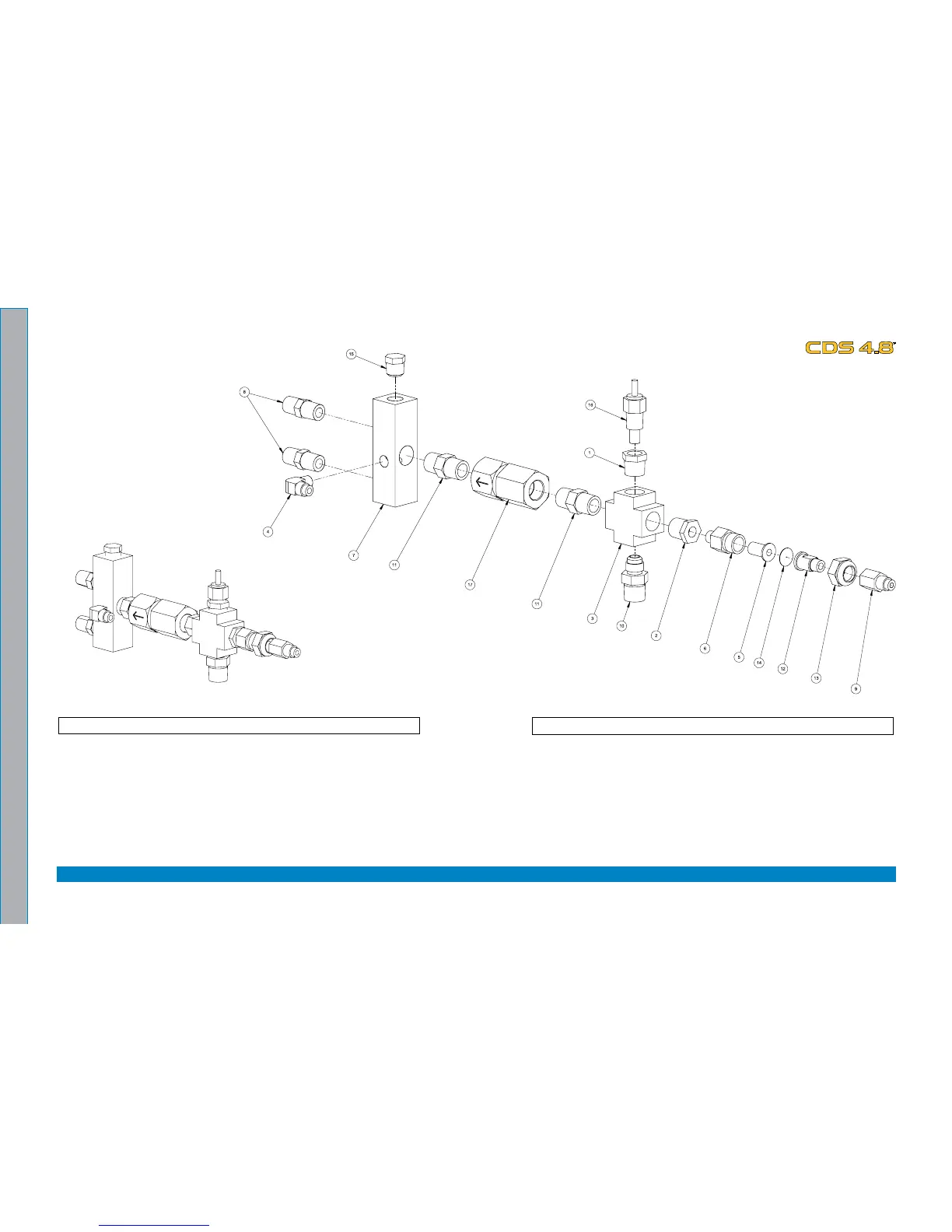

Figure 7-19. Hi-PSI Manifold Assembly
601-008-701 Rev. E
Hi-PSI Manifold Assembly Parts List
1 000-052-061 Bushing, 3/8” NPT X 1/4” FPT 1
2 000-052-060 Bushing, 3/8” NPT X 1/8” FPT 1
3 000-052-113 Cross, 3/8” FPT 1
4 000-052-531 Elbow, 1/8” NPT X 1/4” SAE 1
5 000-049-052 Filter Cartridge,1/4” Brass 1
6 000-052-153 Housing, Stabilizer Nozzle 1
7 000-090-008 Manifold, High Pressure 1
8 000-052-071 Nipple, 1/4” NPT Hex 2
9 000-052-586 Nipple, 1/8” FPT X 1/4” SAE 1
10 000-052-528 Nipple, 3/8” M JIC X 3/8” NPT 1
11 000-052-074 Nipple, 3/8” NPT Hex 2
12 000-052-582 Nipple, Tee Jet Style Collar X 1/8” NPT 1
13 000-094-028 Nut, Brass Jet Assembly 1
14 000-180-009 Orice, 0.027” Plate 1
15 000-106-002 Plug, 1/4” NPT Hex 1
16 000-149-039 Sender, Temperature 1
17 000-169-236 Valve, Di󰀨erential 1
Item Part Number Description Qty
Item Part Number Description Qty
