HydraMaster CDS 4.8 - Figure 7-12. Dash Box Assembly

7-21: Assemblies and Parts Lists

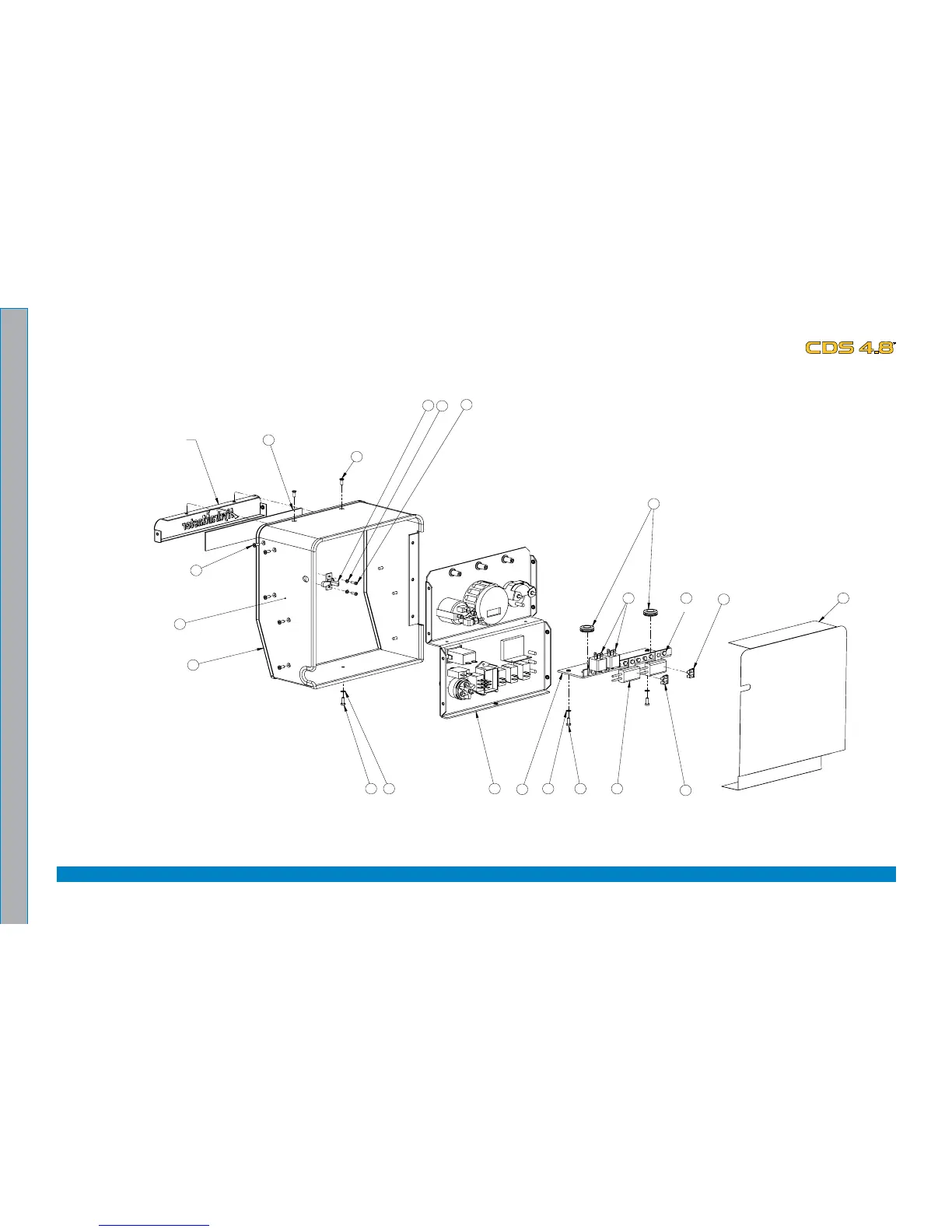

Figure 7-12. Dash Box Assembly
601-018-701 Rev. F
12 10X
17
2X
4
2
7
18 1
8
10
2X
13 13
2X
18
2X
11
12X
6
15
3
16
12
2X
9
000-105-053
PLATE, DASH NAME - COATED
5
14
NOTES:
1. REFERENCE DRAWINGS:
WIRING DIAGRAM 000-179-068
ELECTRICAL SCHEMATIC 000-179-069
E
E
F
F
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
18 3 WASHER, #10 OUTSIDE STAR STEEL 000-174-015
17 2 WASHER, #6 LOCK STEEL 000-174-043
16 1 TRIMLOK, 1/8" I.D. x 3/8" x 105" LG VARIOUS 000-131-027
15 2 SWITCH, RELAY VARIOUS 000-157-022
14 1 SHIELD, DRIP - DASH
POLYCARBON
ATE CLEAR
000-108-013
13 3 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126
12 12 SCREW, #10-24UNC x 0.50" LG. FLAT HEAD PHILLIPS S. STEEL 000-143-114
11 12 SCREW, #10-24UNC x 0.375" LG. HEX HEAD S. STEEL 000-143-166
10 2 SCREW, #6-32 x .500" LG. PHP S.STEEL 000-143-046
9 1 RELFECTOR, 1.625" x 11" NEW HM LOGO VARIOUS 000-084-016
8 1 LATCH, DASH SECURING ALUMINUM 000-086-104
7 2 GROMMET, LARGE WIRING RUBBER 000-060-002
6 1 FUSE, 15 AMP PLUG IN VARIOUS 000-056-003
5 1 FUSE, 25 AMP VARIOUOS 000-056-010
4 2 FUSE HOLDER, IN-LINE - WEATHERPROOF VARIOUS 000-056-006
3 1 BRACKET, GROUNDING BUS - FABRICATED 5052-H32 000-015-183
2 1 BOX, DASH - COATED 5052-H32 000-013-025
1 1 ASSEMBLY, DASH PANEL VARIOUS 601-020-701
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
E ADDED 000-056-006 QTY. WAS 1 AND 000-056-010.
ECR #2657
5/13/2016 PE C.I.R. ECRB
E01
REIVED 601-020-701. WIRE DIAGRAM WAS 000-179-
060; ELECTRICAL SCHEMATIC WAS 000-179-061
ECR #2812
01/12/2018 M.B.B. L.O.L. M.B.B.
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
short 7-21 601-018-701
REV
ASSEMBLY, DASH BOX
E01
CDS 4.8 601-060-030
- - - - - -
- - -- - -
- - - - - -
- - - - - -
B.M.T.
B.M.T.
L.O.L.
DRAWN
CHECKED
APPVD
02/17/1999
02/18/1999
05/13/2016
TOLERANCES
.X=
.1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
10.70
