HydraMaster CDS 4.8 - CDS Front End Assembly - Chevy

7-17: Assemblies and Parts Lists

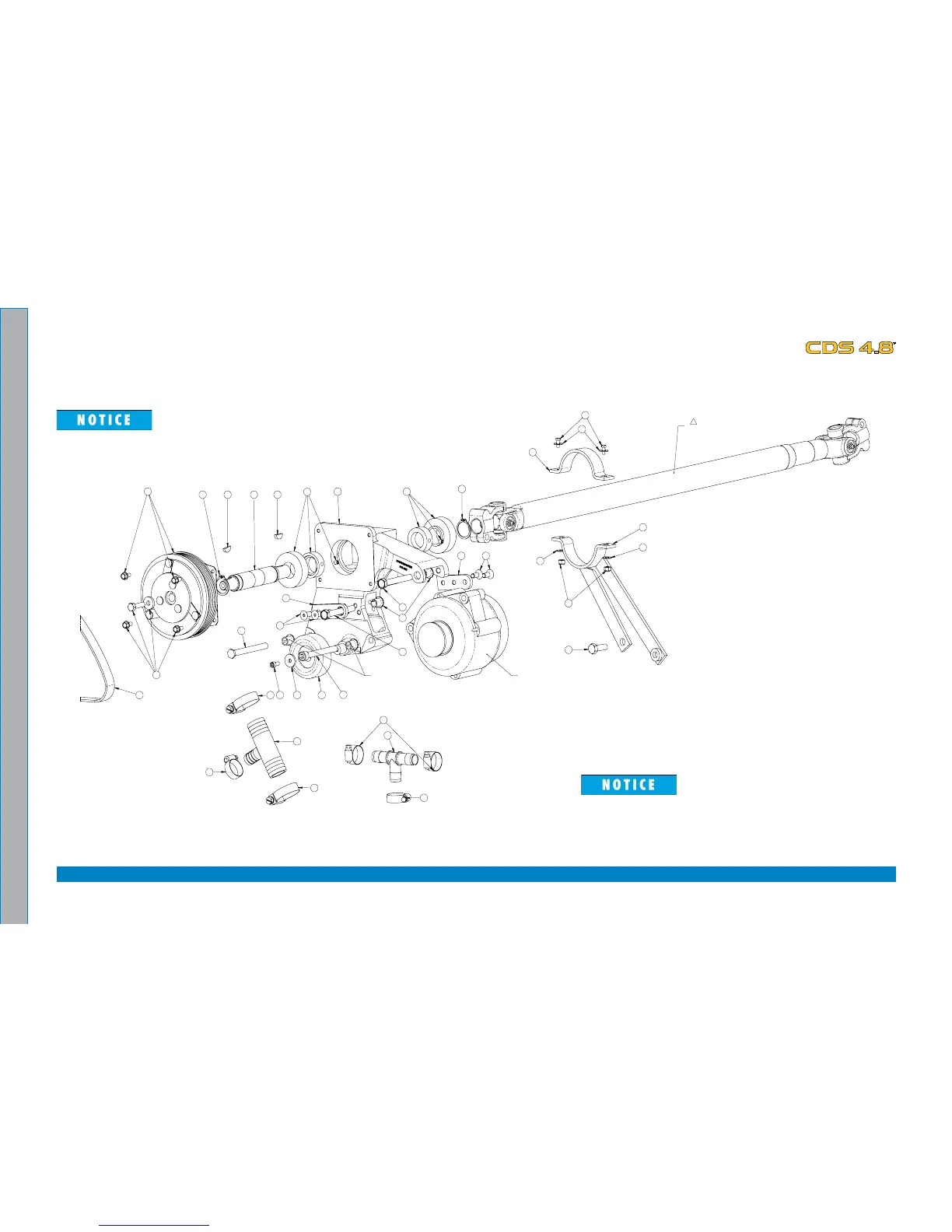

Figure 7-11. CDS Front End Assembly - Chevy
601-021-132 Rev. G
1011
9
9
16 24
1
4 1
16
19
27
14
13
27
27
22
183
20
6
21
152817
20
5
18
23
26
8
8
7
7
25
7
NOTES:
ITEM
7
HAS FOUR CLAMPS NOT SHOWN. THEY ARE USED FOR
SECURING THE CUSTOM CUT GREEN STRIPE HOSE IN 601-050-741.
1
1
2
000-150-174
DRIVE LINE AXLE
ALTERNATOR (PART OF VAN) BUSHING (COMES W/ VAN)
G
12
F
F
F
28 1 WASHER, CHEVY CDS IDLER CASTING 6061-T6 000-174-104
27 4 WASHER, 1/4" FLAT S. STEEL 000-174-003
26 1 TEE, UPPER COOLANT - GMC 2003 ALUMINUM 000-052-716
25 1 TEE, 3/4" BARB X 3/4" BARB GFBN 000-052-717
24 1 SHAFT, ELECTRIC CLUTCH
AISI 1144 MODIFIED
STRESS PROOF STEEL
000-150-009
23 1 SCREW, M10x1.5 x 90MM LG. MOD. THIN HEAD - MACHINED STEEL 000-143-558
22 1 SCREW, M10 x 30MM LG. STEEL 000-143-078
21 1 SCREW, M10 X 1.5 X 90MM LG. SOCKET HD S. STEEL 000-143-563
20 2 SCREW, M10 X 1.5 X 80MM LG. HEX HEAD S. STEEL 000-143-564
19 2 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126
18 4 SCREW, 5/16-18UNC X 0.75" LG. FLAT HEAD ALLEN S. STEEL 000-143-562
17 1 SCREW, 1/4"-20UNC x 0.5" LG. SOCKET HEAD S.STEEL 000-143-079
16 2 RING,CDS CLUTCH SHAFT STEEL 000-139-005
15 1 PULLEY, 76MM CDS IDLER - GATES W/ DOUBLE RO VARIOUS 000-109-095
14 1 PROTECTOR, FLY STRAP - TOP CLAMP - COATED ASTM A36 000-108-009
13 1 PROTECTOR, FLY STRAP - COATED ASTM A36 000-108-127
12 2 NUT, 1/4"-20UNC NYLOCK S STEEL 000-094-009
11 1 KEY,5/32 X 3/4" WOODRUFF STEEL 000-077-008
10 1 KEY,3/16" X 3/4" WOODRUFF STEEL 000-077-009
9 1 CLUTCH ASSY, 6" CDS POLY GROOVE VARIOUS 000-036-003
8 2 CLAMP, SIZE #20 HOSE S. STEEL 000-033-008
7 8 CLAMP, SIZE #12 HOSE STEEL 000-033-029
6 2 BUSHING, CDS IDLER CASTING - ALTERNATOR MOTOR SPRING ST 000-154-141
5 1 BRACKET, IDLER CASTING - FRONT AISI 304 2B 000-015-879
4 1 BRACKET, CDS FRONT END IDLER CASTING
ANSI 356 Sr MOD.
ALUMINUM
000-015-002
3 1 BRACKET, 2003 CHEVY IDLER CASTING - REAR AISI 304 2B 000-015-880
2 1 BELT, 2003 + CH-8 POLY POLYCARBONATE 000-010-118
1 2 BEARING, CDS CLUTCH VARIOUS 000-008-011
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
F
REMOVED DRIVE SHAFT FROM BOM; ITEM 6 WAS
QTY. 4; 094-009 WAS 094-010.
ECR #2540
9/24/2014 L.O.L. L.R.K. L.R.K.
G DRIVESHAFT NOTE WAS 150-173.
ECR #2493
10/23/2014 L.O.L. L.R.K. L.R.K.
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:8
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
601-021-132
REV
ASSEMBLY, CDS FRONT END - GMC 2003+
G
CDS ZR 700-014-149
700-014-150
CDS ZR-EWS
- - -- - -
- - - - - -
- - - - - -
L.R.K.
L.R.K.
L.O.L.
DRAWN
CHECKED
APPVD
09/30/2002
09/24/2014
10/23/2014
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
49.05
Order P/N 000-078-391 for the after-market Chevy Front End replacement kit.
Item 7: 4 out of the 8 clamps are not shown in this illustration. They
are used for securing the custom cut green stripe hose in the top
level assembly.
