HydraMaster CDS 4.8 - Figure 7-22. Vacuum Relief Valve Assembly; Vacuum Relief Valve Assembly Parts List

Assemblies and Parts Lists: 7-34

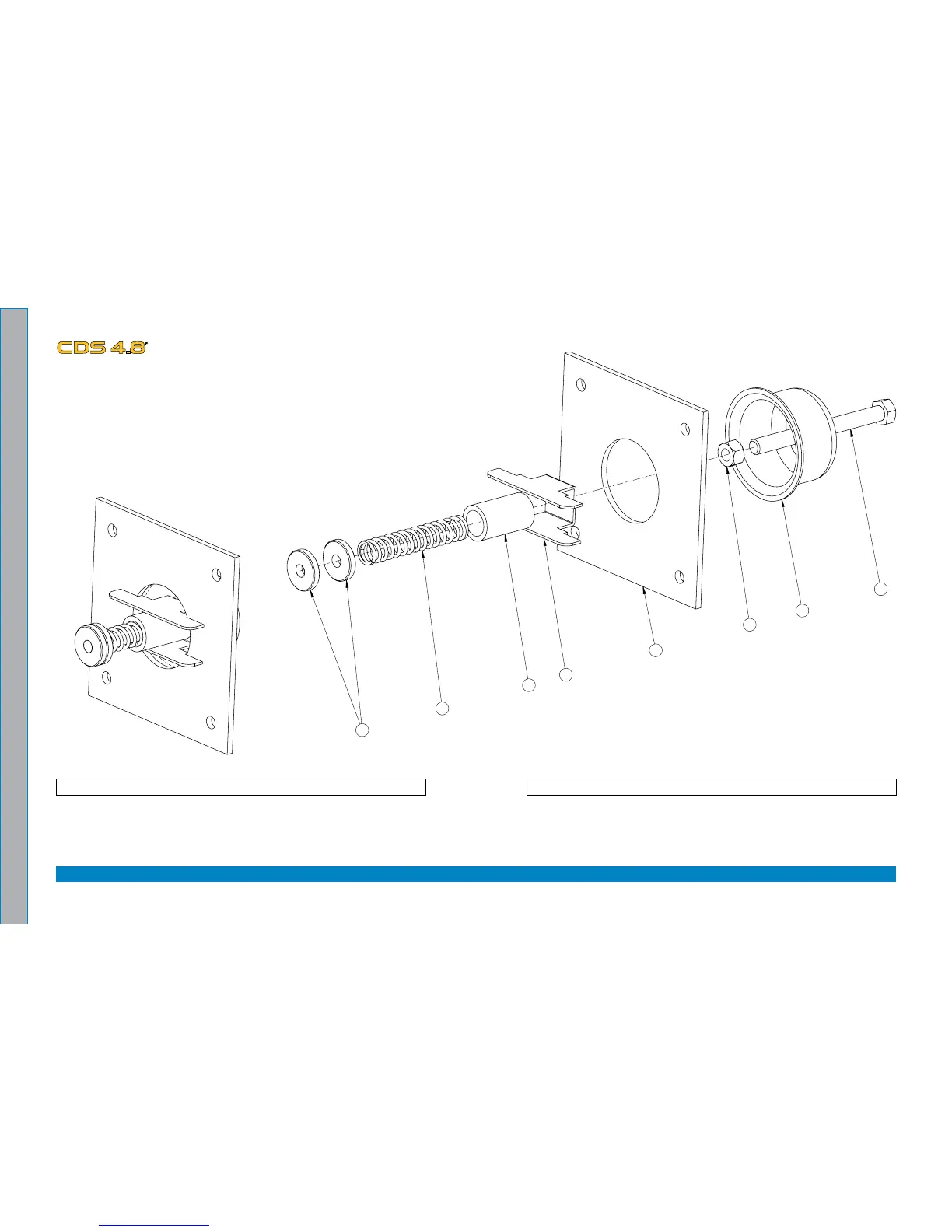

Figure 7-22. Vacuum Relief Valve Assembly
610-026-724 Rev. B
Vacuum Relief Valve Assembly Parts List
1 000-015-182 Bracket, Vacuum Relief Valve - Fabricated 1
2 000-027-032 Cap, Spun Vacuum Relief Valve 1
3 000-094-101 Nut, 3/8”-16UNC Hex Jam 1
4 000-094-077 Nut, 3/8”-16UNC X 1.00” O.D. Knurled 2
Item Part Number Description QtyItem Part Number Description Qty
4
7
8
1
5
3
6
2
5 000-105-332 Plate, Vacuum Relief Valve Mounting - Coated 1
6 000-143-198 Screw, 3/8”-16UNC X 4” Lg.HH 1
7 000-155-026 Spring, Vacuum Relief Valve 1
8 000-125-111 Tube, Vacuum Relief Spring Guide 1
