HydraMaster CDS 4.8 - Figure 7-33. 120 Gallon Pump-In Tank Fitting Assembly; Gallon Pump-In Tank Fitting Assembly Parts List

7-49: Assemblies and Parts Lists

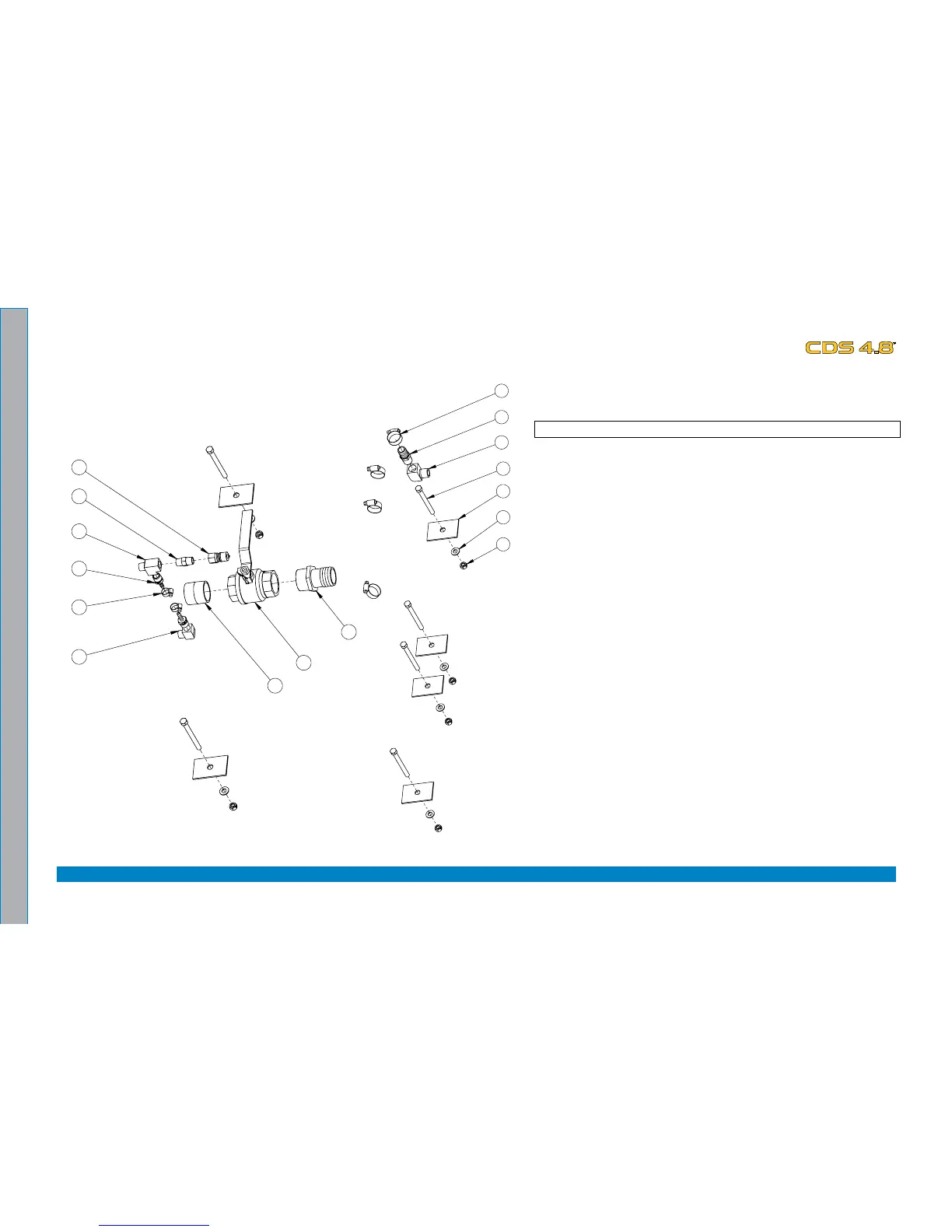

Figure 7-33. 120 Gallon Pump-In Tank Fitting Assembly
000-052-299 Rev.B
120 Gallon Pump-In Tank Fitting Assembly Parts List
Item Part Number Description Qty
1 000-014-102 6 X 6 Zip Lock Bag 1
2 000-033-003 Clamp, Size #4 Mini Hose 2
3 000-033-029 Clamp, Size #12 Hose 4
4 000-052-087 Elbow, 1/2” NPT Street 1
5 000-052-086 Elbow, 3/8” NPT Street 1
6 000-052-226 Insert, 1-1/2” NPT X 1-1/2” Barb (Gray) 1
7 000-052-103 Insert, #64 (3/8” NPT X 1/4” Barb) 2
8 000-052-129 Insert, #812, 1/2NPT X 3/4 Hose 1
9 000-052-182 Nipple, 1-1/2” NPT Close 1
10 000-052-074 Nipple, 3/8” NPT Hex 1
11 000-094-015 Nut, 3/8”-16UNC Hex 2-Way Locking 6
