HydraMaster CDS 4.8 - By-Pass Valve Assembly Parts List

Assemblies and Parts Lists: 7-30

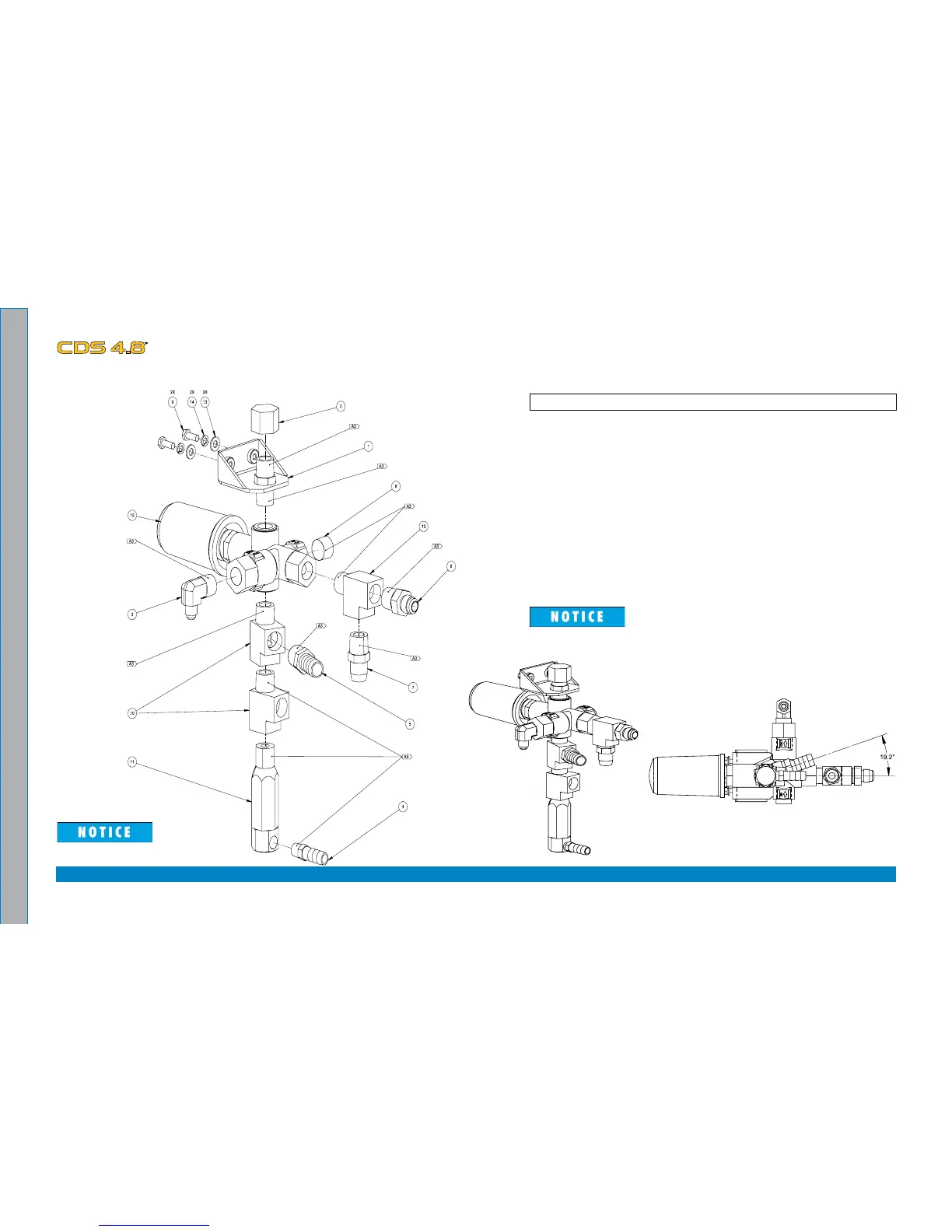

Figure 7-18. By-Pass Valve Assembly
601-009-701 Rev. C
By-Pass Valve Assembly Parts List
1 000-015-515 Bracket, By-Pass Valve Mount - Weldment 1
2 000-027-008 Cap, 3/8” Brass Pipe 1
3 000-052-764 Elbow, 1/4” SAE X 3/8” MPT X 90 Degree 1
4 000-052-099 Insert, #26 (1/8” NPT X 3/8” Barb) 1
5 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 1
6 000-052-528 Nipple, 3/8” M JIC X 3/8” NPT 1
7 000-052-128 Nipple, 3/8” MPT X 3/8” SAE Flare 1
8 000-106-008 Plug, 3/8” NPT Allen Head 1
9 000-143-126 Screw, #10-24UNC X 0.50” Lg. Hex Head 2
10 000-052-023 Tee, 3/8” NPT Male Street 3
11 000-169-027 Valve, 165 Degrees F Thermal 1
12 000-169-351 Valve, Pressure Regulator-Modied * 1
13 000-174-014 Washer, #10 Lock 2
Item Part Number Description Qty
BOTTOM VIEW
SCALE 1:2
See Figure 7-1 for adhesive/sealant
information.
* Order P/N 000-078-582 for the valve repair kit.
