HydraMaster CDS 4.8 - Dash Panel Assembly

7-23: Assemblies and Parts Lists

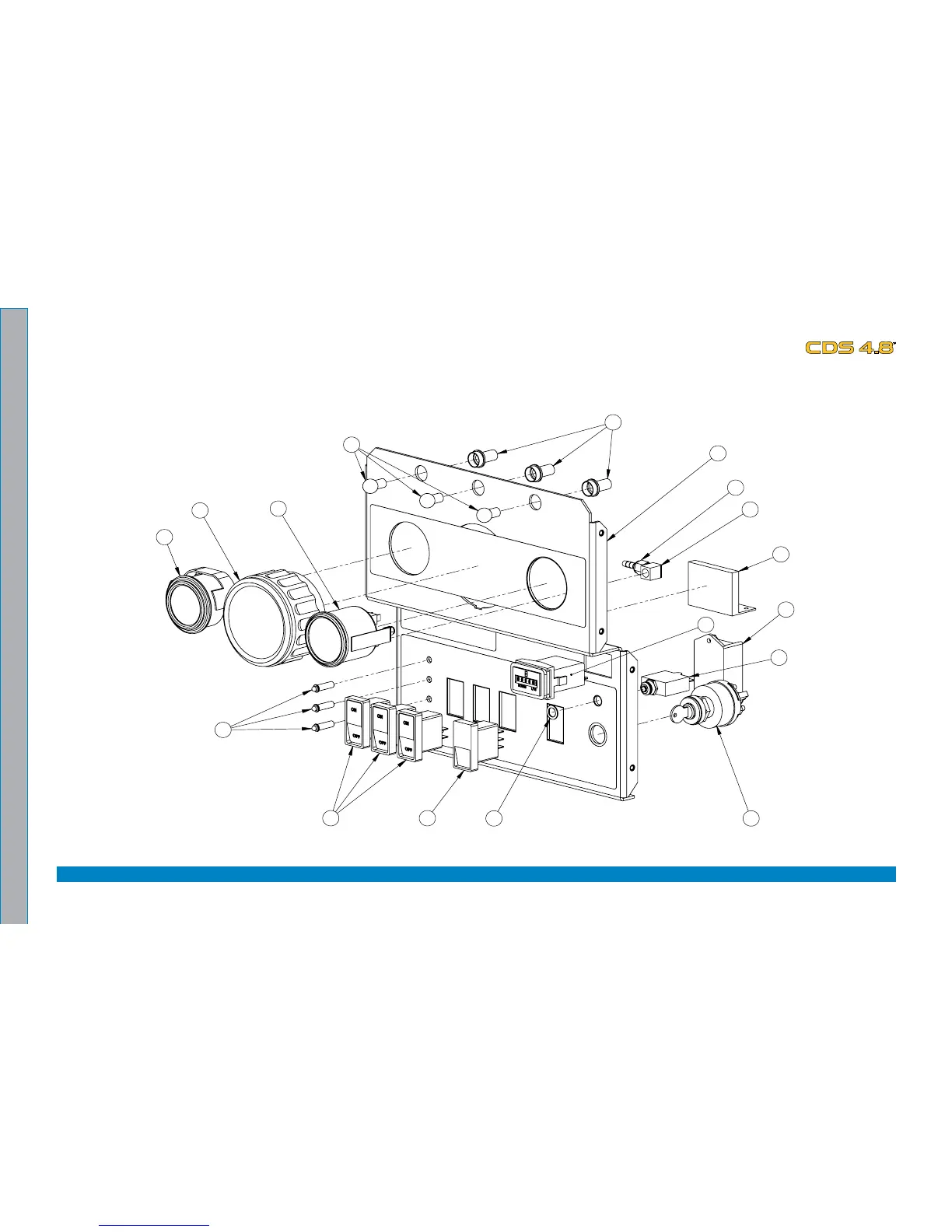

Figure 7-13. Dash Panel Assembly
601-020-701 Rev. F
4
5
10
6
17
19
11
12
16
14
9
3
13
1
18
15
2
ITEM
NO.
QTY. DESCRIPTION MATERIAL PART NO.
19 1 WASHER, 3/8" FLAT NYLON 000-174-052
18 1 SWITCH, IGNITION VARIOUS 000-157-008
17 1 SWITCH, 3 WAY SPEED CONTROL VARIOUS 000-157-131
16 3 SWITCH, 20 AMP ROCKER VARIOUS 000-157-040
15 1 RELAY, THROTTLE CONTROL DELAY VARIOUS 000-157-166
14 1 PANEL, DASH - COATED 5052-H32 000-100-071
13 1 METER, RECTANGULAR W/O BEZEL VARIOUS 000-074-170
12 3 LIGHT, RED LED INDICATOR MINI VARIOUS 000-084-011
11 3 LAMP, SOCKET - DASHBOARD STEEL 000-084-009
10 3 LAMP, REPLACEMENT GAUGE VARIOUS 000-084-004
9 1 INSERT, #F23 (1/8" FPT x 3/16" BARB) BRASS 000-052-096
8 1 HARNESS, CDS DASH SET 2 WIRING VARIOUS 000-063-065
7 1 HARNESS, CDS DASH SET 1 WIRING VARIOUS 000-063-064
6 1 GAUGE, VACUUM 10-30" - Ø2-1/16" CHROME BEZEL VARIOUS 000-074-006
5 1 GAUGE, TEMPERATURE VARIOUS 000-074-016
4 1 GAUGE, TACH. MAG PICK UP 3-3/8" DIAL CHEV 03+ VARIOUS 000-074-034
3 1 ELBOW, 1/8" NPT STREET BRASS 000-052-084
2 1 CONTROLLER, CDS SOFT START VARIOUS 000-074-054
1 1 BREAKER, 25 AMP CIRCUIT VARIOUS 000-018-004
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, DASH PANEL
E01
REV
short 601-020-701
04/20/2016
02/17/1999
02/17/1999
USED ON NEXT ASSY
APPLICATION WEIGHT:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
L.O.L.
B.M.T.
B.M.T.
CDS 4.8
- - - - - -
601-018-800
- - -- - -
- - -- - -
- - - - - -
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE: 4.09
