7-45: Assemblies and Parts Lists

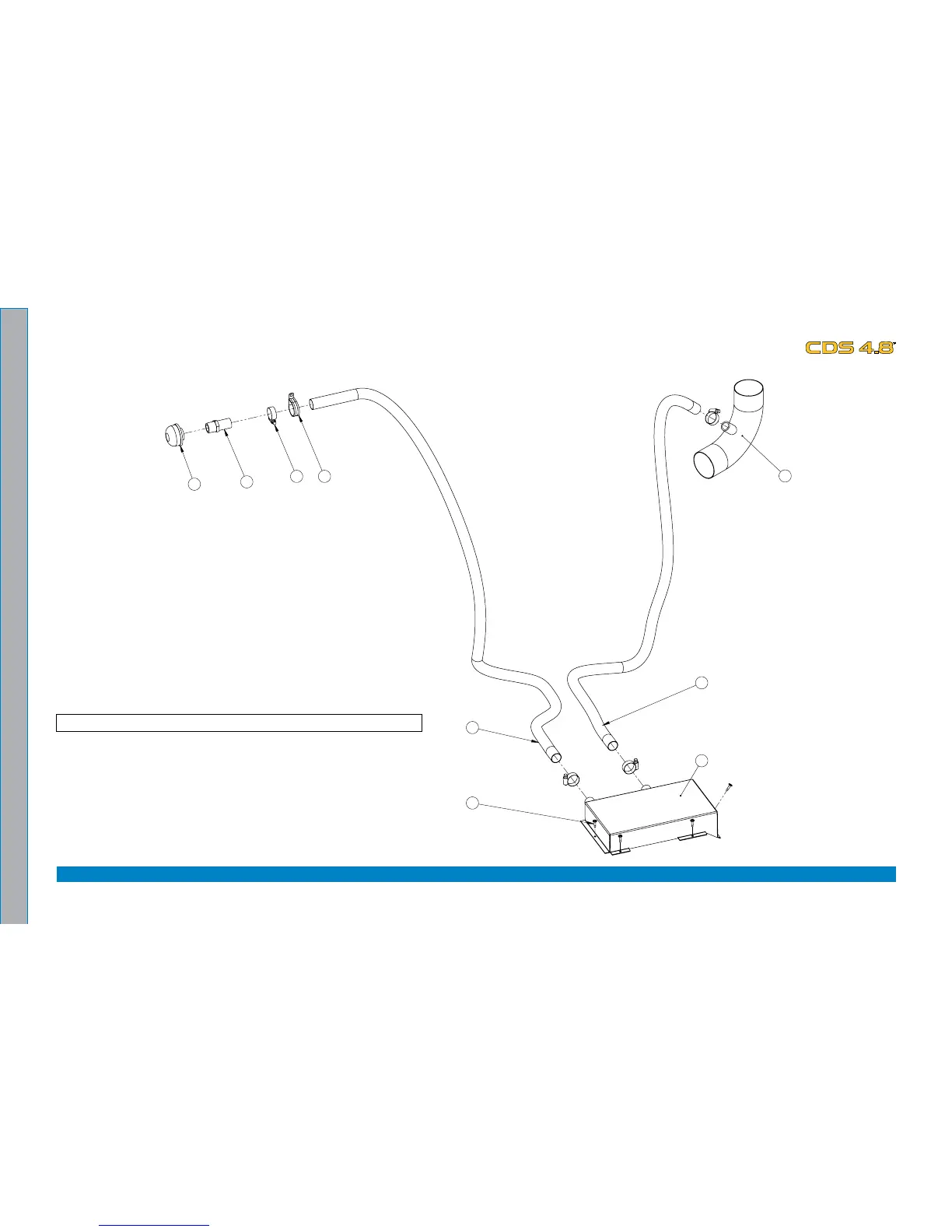

Figure 7-30. Yaw Sensor Cooling Kit Assembly (Chevy)
000-079-130 Rev. B
Yaw Sensor Cooling Kit Parts List
Item Part Number Description Qty
1 000-033-053 Clamp, 1-1/2” Cushion Loop 1
2 000-033-029 Clamp, Size #12 Hose 4
3 000-049-020 Filter Screen - Medium 1
4 000-052-034 Fitting, Yaw Sensor Cooling 1
5 000-068-829 Hose, 1” Vacuum - Gray W - 72” 1
6 000-068-828 Hose, 1” Vacuum - Gray W - 84” 1
7 000-052-908 Insert 3/4 X 1 Hose w/o Barb 1
8 000-143-058 Screw, #8 TEK X 3/4” LG. 4
9 000-041-323 Weldment, Yaw Sensor Cooling - Chevy 1
8
9
4X
6
4
1
7
3
5
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
9 4
SCREW, #8 TEK X 3/4" LG.
STEEL
000-143-058
8 1
COVER, YAW SENSOR AND SDM WELD
S. STEEL
000-041-323
7 1
INSERT 3/4 X 1 HOSE W-O BARB
GLASS FILLED
NYLON - BLACK
000-052-908
6 1
HOSE, 1" VACUUM - GRAY W - 84"
VARIOUS
000-068-828
5 1
HOSE, 1" VACUUM - GRAY W - 72"
VARIOUS
000-068-829
4 1
FITTING, YAW SENSOR COOLING
6061-T1
000-052-034
3 1
FILTER SCREEN - MEDIUM
S. STEEL
000-049-020
2 4
CLAMP, SIZE #12 HOSE
S. STEEL
000-033-029
1 1
CLAMP, 1-1/2" CUSHION LOOP
S. STEEL
000-033-053
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASED DRAWING.
NEW
11/27/2012
S.M.W.
L.O.L. L.O.L.
B
REPLACED 000-41-312 WITH 000-041-323;
REMOVED 2 QTY. 000-143-112, ADDED 4 QTY. 000-
143-058.
ECR #2684
ECR #2708
04/13/2016
PE
C.I.R.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:12
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
000-079-130
REV
KIT, YAW SENSOR COOLING - CHEVY
B
CTS CDS 4.8
000-193-013
601-050-701
CDS 4.8
- - -- - -
- - - - - -
700-014-149
ZR-CDS
L.O.L.
L.O.L.
S.M.W.
DRAWN
CHECKED
APPVD
11/27/2012
11/27/2012
04/13/2016
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
2°
CODE:
6.086
