HydraMaster CDS 4.8 - Frame Assembly Parts List

Assemblies and Parts Lists: 7-16

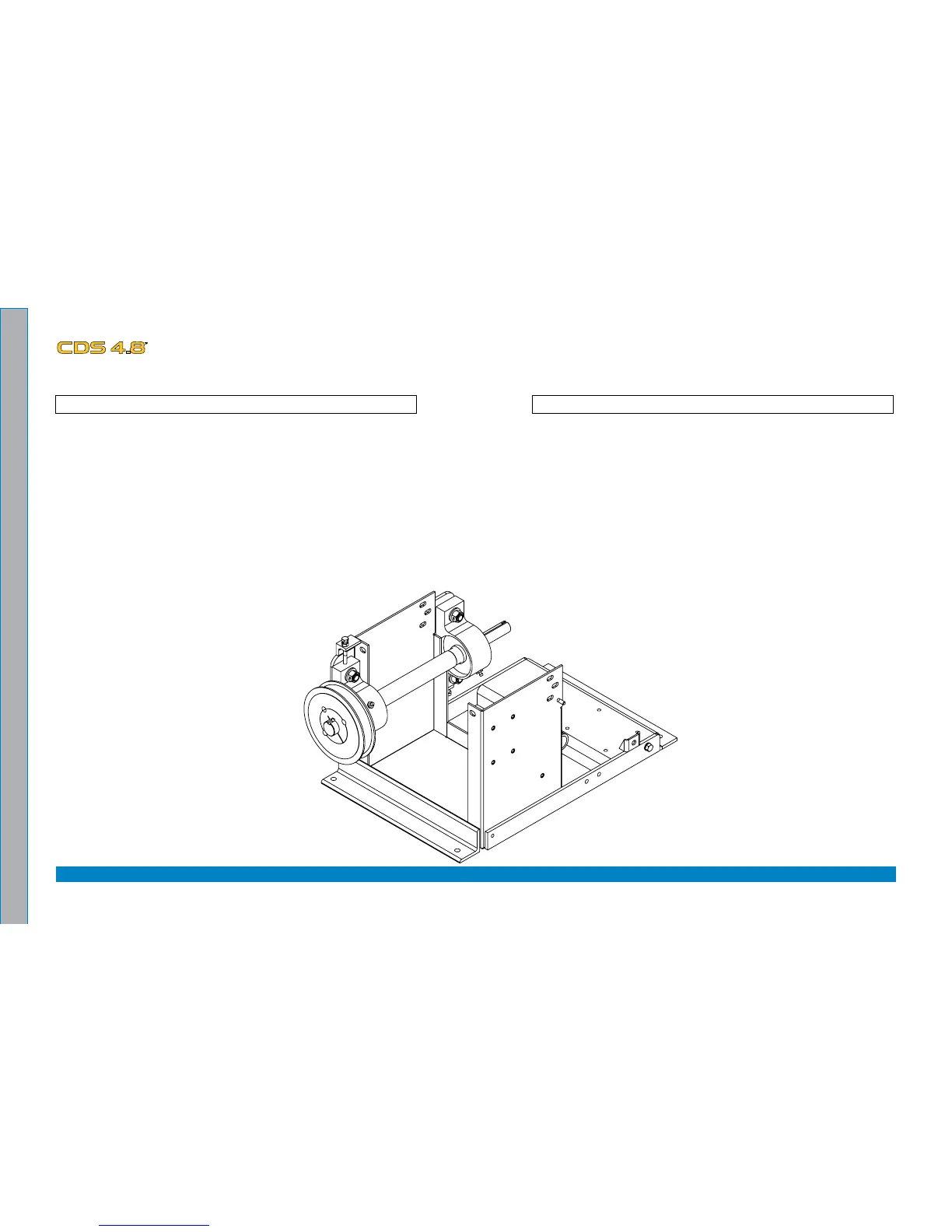

Frame Assembly Parts List
Item Part Number Description Qty
1 000-008-020 Bearing, Pillow Block - 1-3/16” Bore 2
2 000-020-026 Bushing, 1-1/8” Taper-Lock 1
3 000-033-057 Clamp, 1” Cushion Loop 1
4 000-055-028 Frame, Pump and Blower - Coated 1
5 000-077-010 Key, 1/4” X 1-1/2” Lg. Class 2 Fit 1
6 000-077-012 Key, 3/16” X 2.5” Lg. Class 2 Fit 1
7 000-094-037 Nut, 1/2-13UNC 2 Way Locking 4
8 000-094-010 Nut, 1/4”-20UNC Hex 1
9 000-109-058 Pulley, 56 Tooth GT2 8MX-56S-21 Engine and Blower 1
10 000-143-132 Screw, #10-24UNC X 0.75” Lg. Hex Head 1
11 000-143-240 Screw, 1/2”-13UNC X 1.75” Lg. Hex Head - Grade 5 4
12 000-143-002 Screw, 1/4”-20UNC X 1.00” Lg. Hex Head 1
13 000-143-548 Screw, 1/4”-20UNC X 2.00” Lg. Hex Head 1
14 000-143-013 Screw, 5/16”-18UNC X 1.00” Lg. Hex Head Grade 8 1
15 000-150-040 Shaft, Drive Sprocket 1
16 000-139-021 Snap Ring, 1-3/16” Shaft 2
17 000-174-001 Washer, #10 Flat 1
18 000-174-014 Washer, #10 Lock 1
19 000-174-012 Washer, 1/2 SAE H/D 4
20 000-174-018 Washer, 5/16” Lock 1
Item Part Number Description Qty
