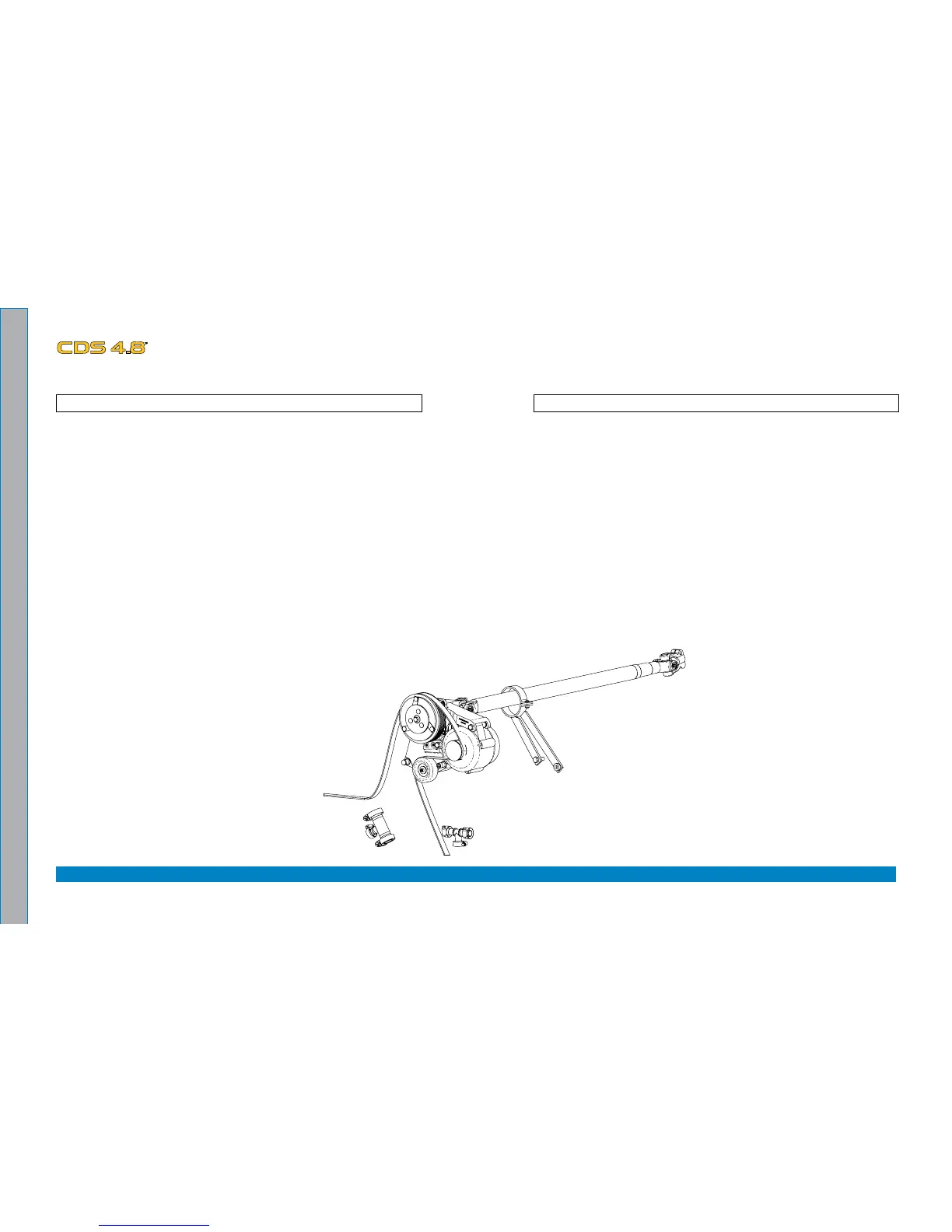

CDS Front End Assembly Parts List - Chevy
Item Part Number Description Qty
1 000-008-011 Bearing, CDS Clutch 2
2 000-010-118 Belt, Ch-8 Poly 1
3 000-015-880 Bracket, 2003 Chevy Idler Casting - Rear 1
4 000-015-002 Bracket, CDS Front End Idler Casting 1
5 000-015-879 Bracket, Idler Casting - Front 1
6 000-154-141 Bushing, CDS Idler Casting - Alternator Motor 2
7 000-033-029 Clamp, Size #12 Hose 8
8 000-033-008 Clamp, Size #20 Hose 2
9 000-036-003 Clutch Assy, 6” CDS Poly Groove 1
10 000-077-009 Key,3/16” X 3/4” Woodru󰀨 1
11 000-077-008 Key,5/32 X 3/4” Woodru󰀨 1
12 000-094-009 Nut, 1/4”-20UNC Nylock 2
13 000-108-127 Protector, Fly Strap - Coated 1
14 000-108-009 Protector, Fly Strap - Top Clamp - Coated 1
15 000-109-095 Pulley, 76mm CDS Idler - Gates w/ Double Ro 1
16 000-139-005 Ring,CDS Clutch Shaft 2
17 000-143-079 Screw, 1/4”-20UNC X 0.5” Lg. Socket Head 1
18 000-143-562 Screw, 5/16-18UNC X 0.75” Lg. Flat Head Allen 4
19 000-143-126 Screw, #10-24UNC X 0.50” Lg. Hex Head 2
20 000-143-564 Screw, M10 X 1.5 X 80mm Lg. Hex Head 2
21 000-143-563 Screw, M10 X 1.5 X 90mm Lg. Socket Hd 1
22 000-143-078 Screw, M10 X 30mm Lg. 1
23 000-143-558 Screw, M10x1.5 X 90mm Lg. Mod. Thin Head 1
24 000-150-009 Shaft, Electric Clutch 1
25 000-052-379 Tee, 3/4” Barb Brass 1
26 000-052-716 Tee, Upper Coolant 1
27 000-174-003 Washer, 1/4” Flat 4
28 000-174-104 Washer, Chevy CDS Idler Casting 1
Item Part Number Description Qty
