Hypertherm Powermax 85 Service Manual

OperatiOn
powermax 65/85 Service Manual 4-15

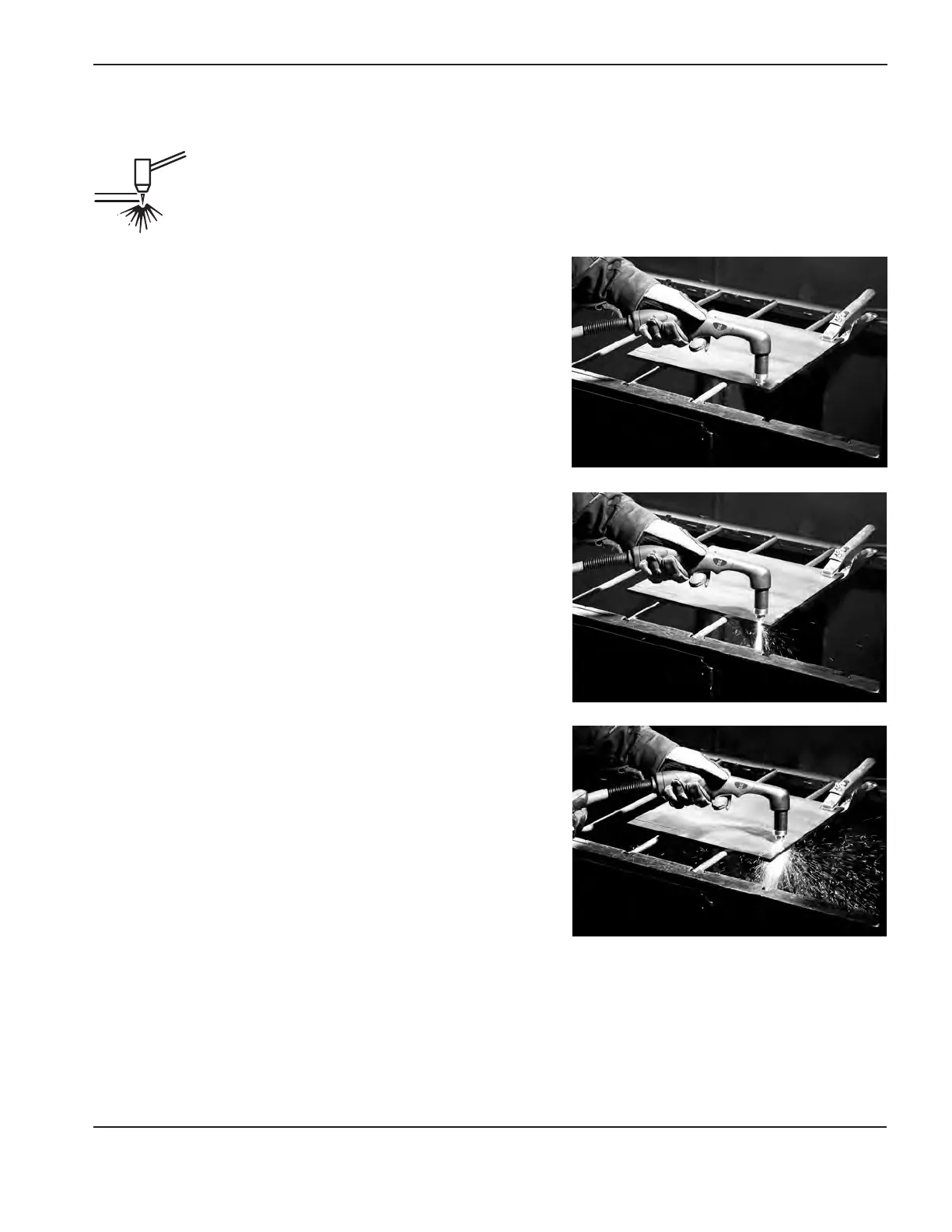

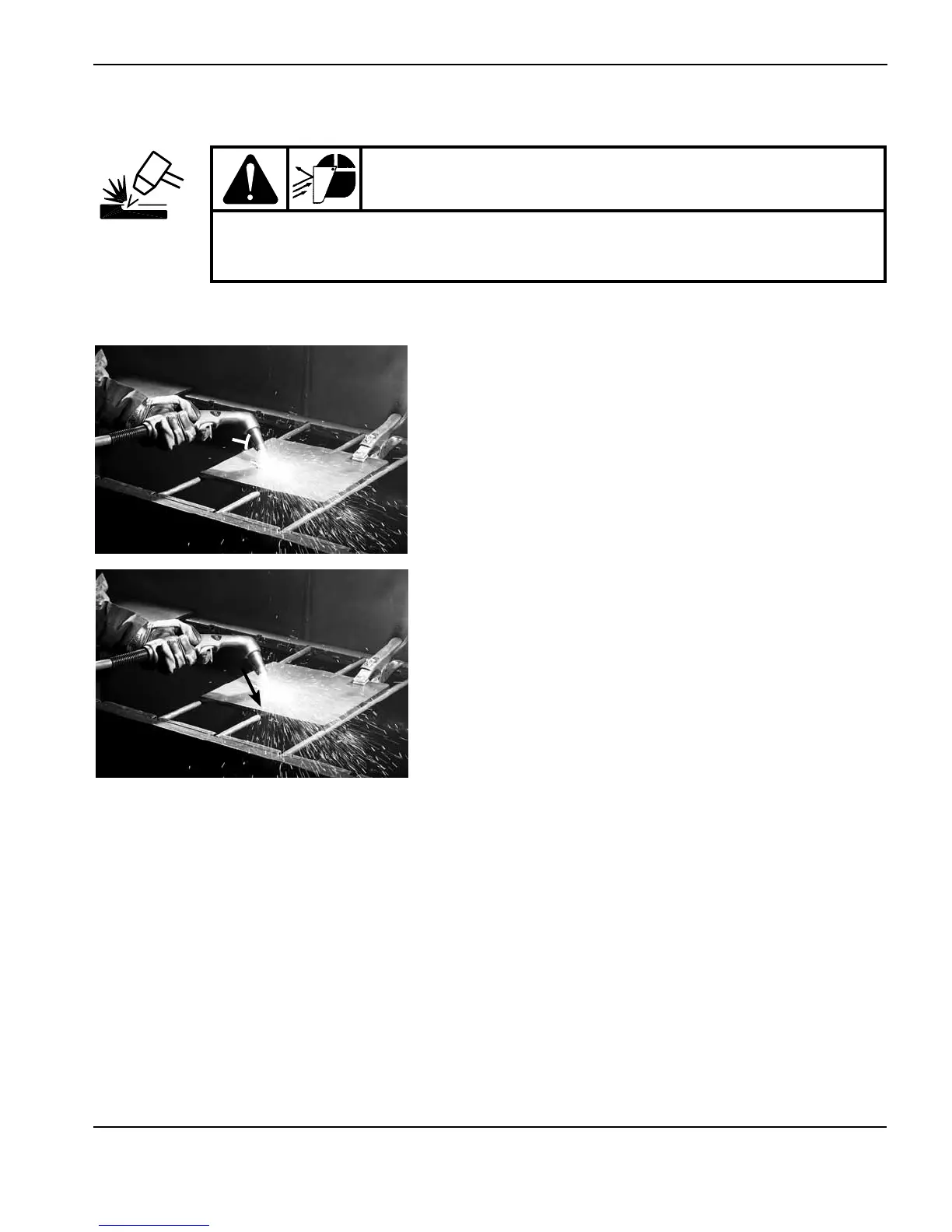

Start a cut from the edge of the workpiece
1. With the work clamp attached to the workpiece, hold the
torch nozzle perpendicular (90°) to the edge of the workpiece.
2. Press the torch’s trigger to start the arc. Pause at the edge
until the arc has cut completely through the workpiece.
3. Drag the torch tip lightly across the workpiece to proceed
with the cut. Maintain a steady, even pace.

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
