Hypertherm Powermax 85 Service Manual

Parts
7-8 powermax 65/85 Service Manual
Item Part number Description
1 228803 Kit: Powermax65 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor with thermal grease
3 228704 Kit: Powermax65 inverter IGBT with thermal grease
4 228742 Kit: Powermax65 CSA/CE, Powermax85 CE input diode bridge with thermal grease
5 228692 Kit: Powermax65 pilot arc IGBT with thermal grease
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor with thermal grease
7 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor with thermal grease
8 228707 Kit: Powermax65 PFC IGBT with thermal grease
9 228740 Kit: Powermax65 and Powermax85 damper resistor with thermal grease
127128 Thermal grease, T-grease 2500
TM
, 10cc
7

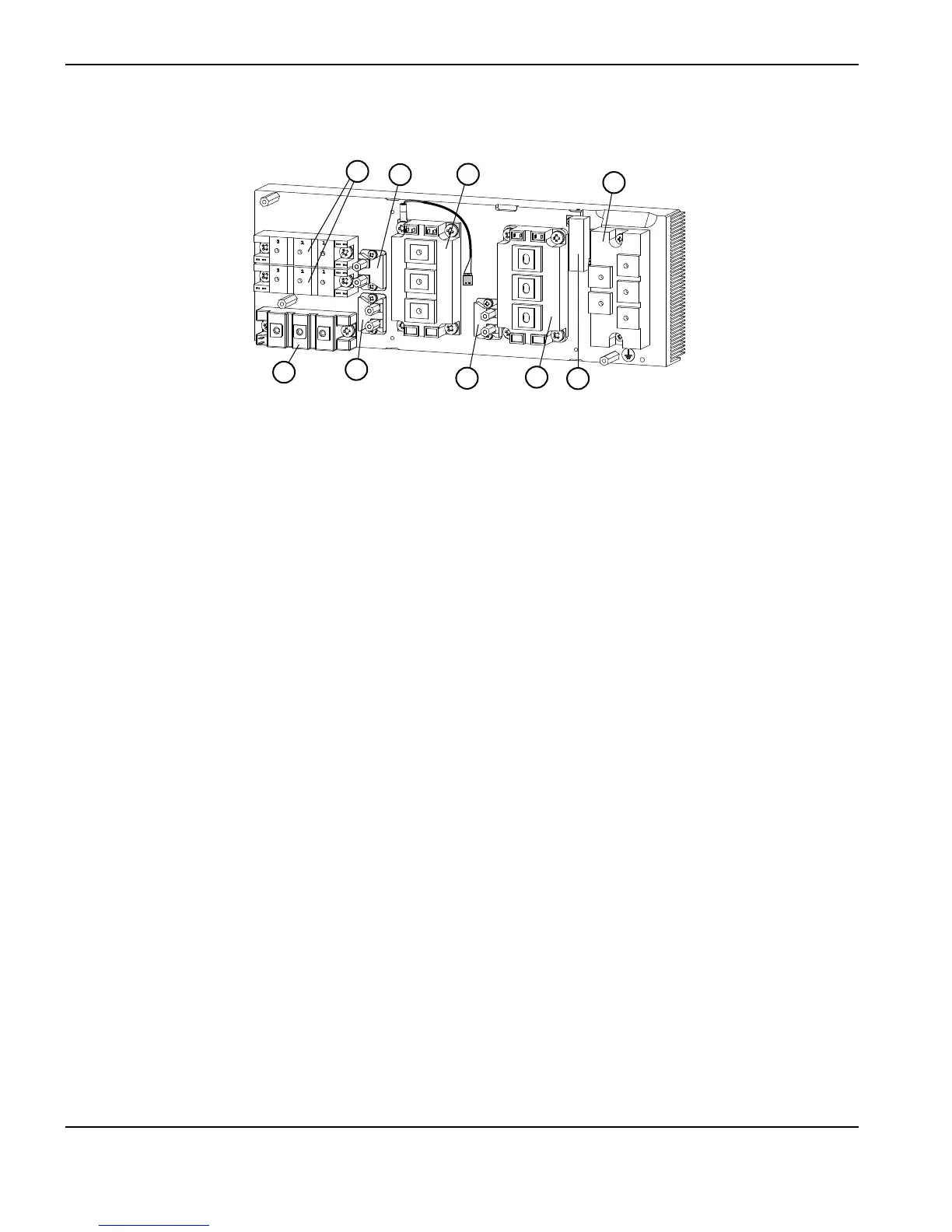

Heat sink assembly
65A CSA
1
2
3
4
5
6
8
9

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
