Hypertherm Powermax 85

PARTS
powermax 65/85 Service Manual 7-9
65A CE

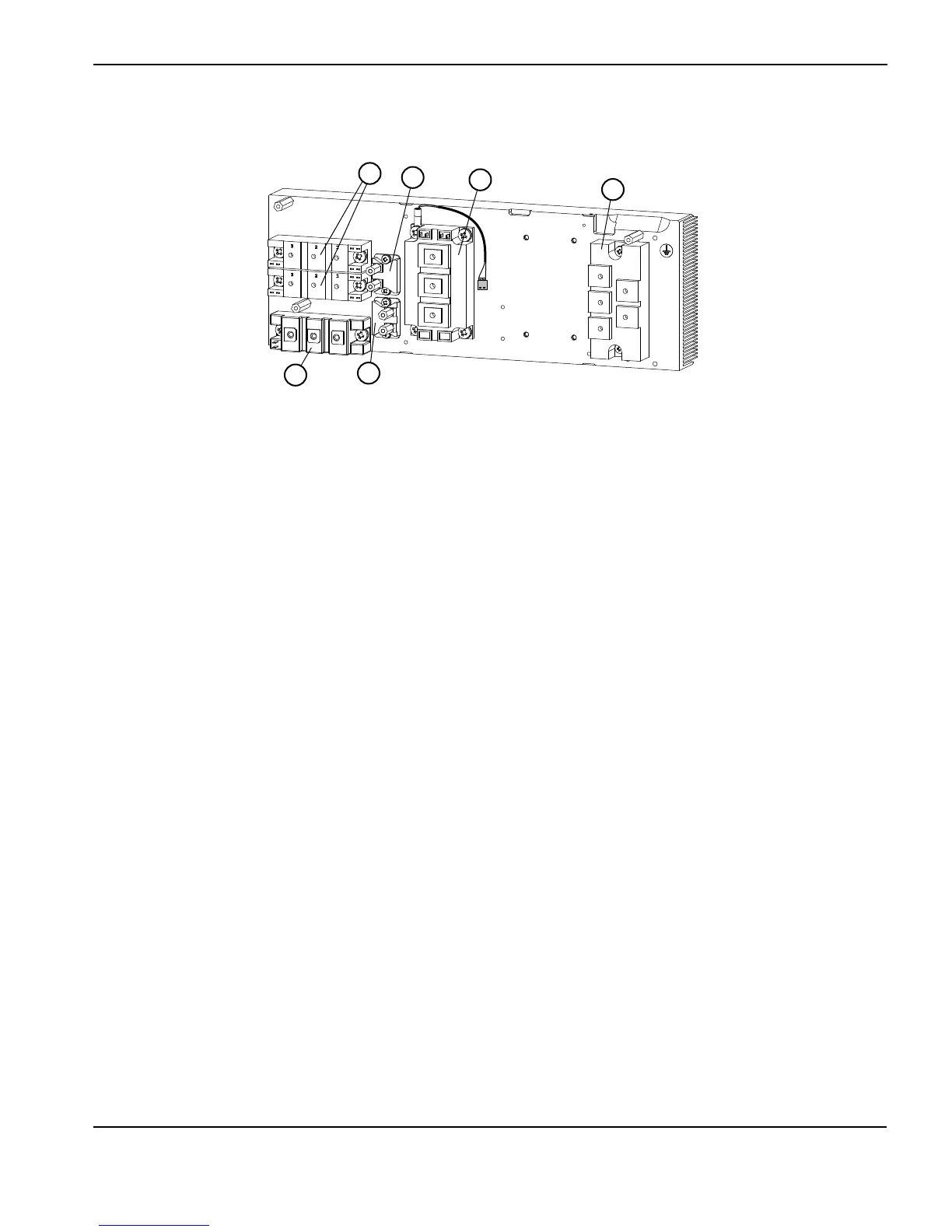

Item Part number Description
1 228803 Kit: Powermax65 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor
3 228703 Kit: Powermax85 CSA, Powermax65 CE inverter IGBT
4 228742 Kit: Powermax65 CSA/CE, Powermax85 CE input diode bridge
5 228692 Kit: Powermax65 pilot arc IGBT
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor
127128 Thermal grease, T-grease 2500
TM
, 10cc
1
2
3
4
5
6
