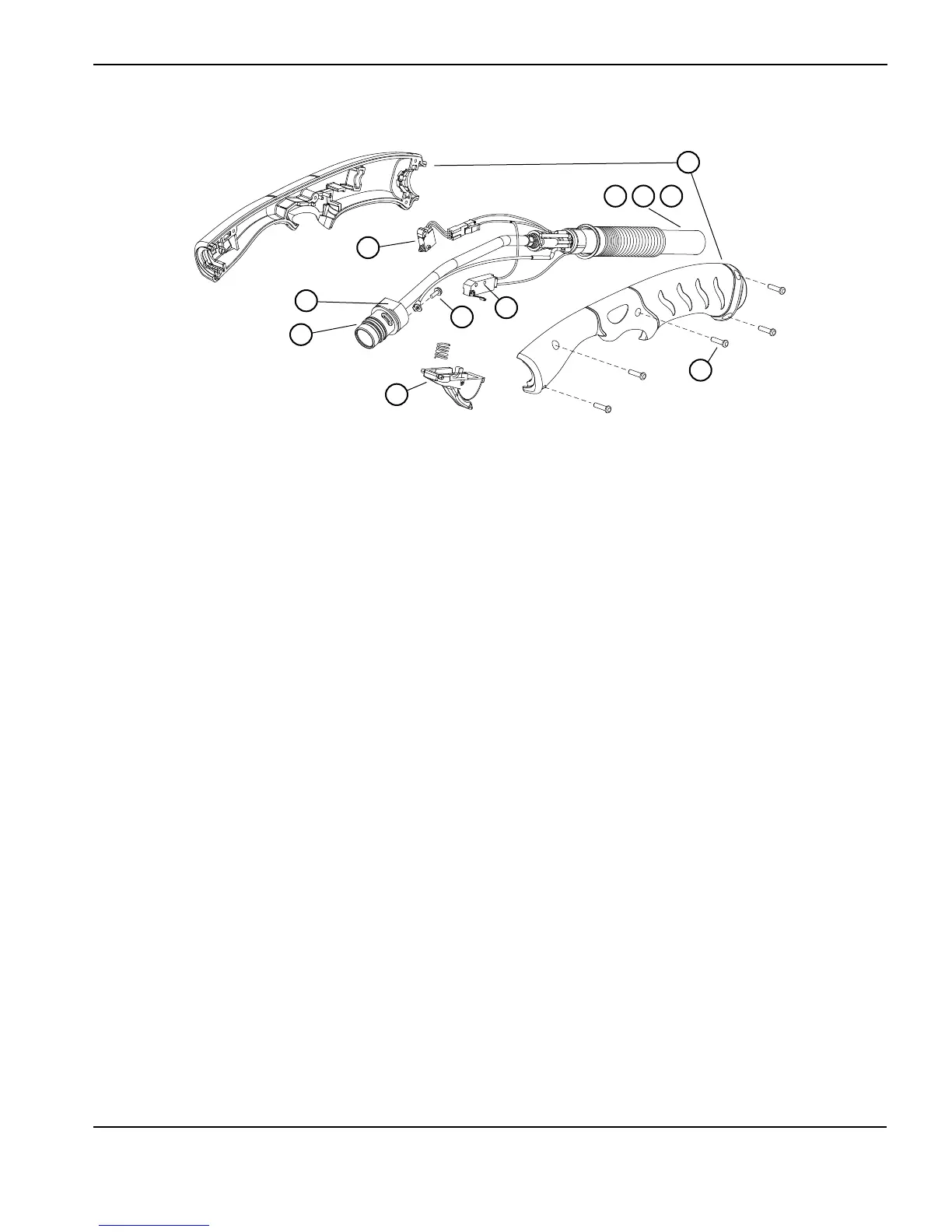

H65s/H85s Hand torch replacement parts
1
2
3
4
5
6
7 8 9
11
* The torch assembly also includes one set of the drag-cutting consumables listed on 7-14.
The entire hand torch and lead assembly can be replaced, or individual component parts can be replaced. Part numbers
starting with 083 and 087 indicate complete torch and lead assemblies.
Item Part number Description
083251* H65s Hand torch assembly with 25 ft (7.6 m) lead
083252* H65s Hand torch assembly with 50 ft (15.2 m) lead
083253* H65s Hand torch assembly with 75 ft (22.9 m) lead
087089* H85s Hand torch assembly with 25 ft (7.6 m) lead
087090* H85s Hand torch assembly with 50 ft (15.2 m) lead
087091* H85s Hand torch assembly with 75 ft (22.9 m) lead
1 228718 Kit: H65s/H85s Torch handle replacement
2 075714 Handle screws, #4 x 1/2 slotted TORX pan head, S/B
3 228721 Kit: H65/H85/H65s/H85s Safety trigger with spring replacement
4 058519 O-ring: VITON .673 X .063
5 075504 Pilot terminal screw: MSCR:4-40 X 5/16 SW CN SEM PH PAN S/Z
6 228109 Kit: H65s/H85s Cap-sensor switch replacement
7 228727 Kit: H65s/H85s Torch lead replacement, 25 ft (7.6 m)
8 228728 Kit: H65s/H85s Torch lead replacement, 50 ft (15.2 m)
9 228729 Kit: H65s/H85s Torch lead replacement, 75 ft (22.9 m)
10 128642 Trigger start switch
11 228715 Kit H65s/H85s torch head replacement
228314 Kit: Quick Disconnect repair (latch, spring)
