Hypertherm Powermax 85

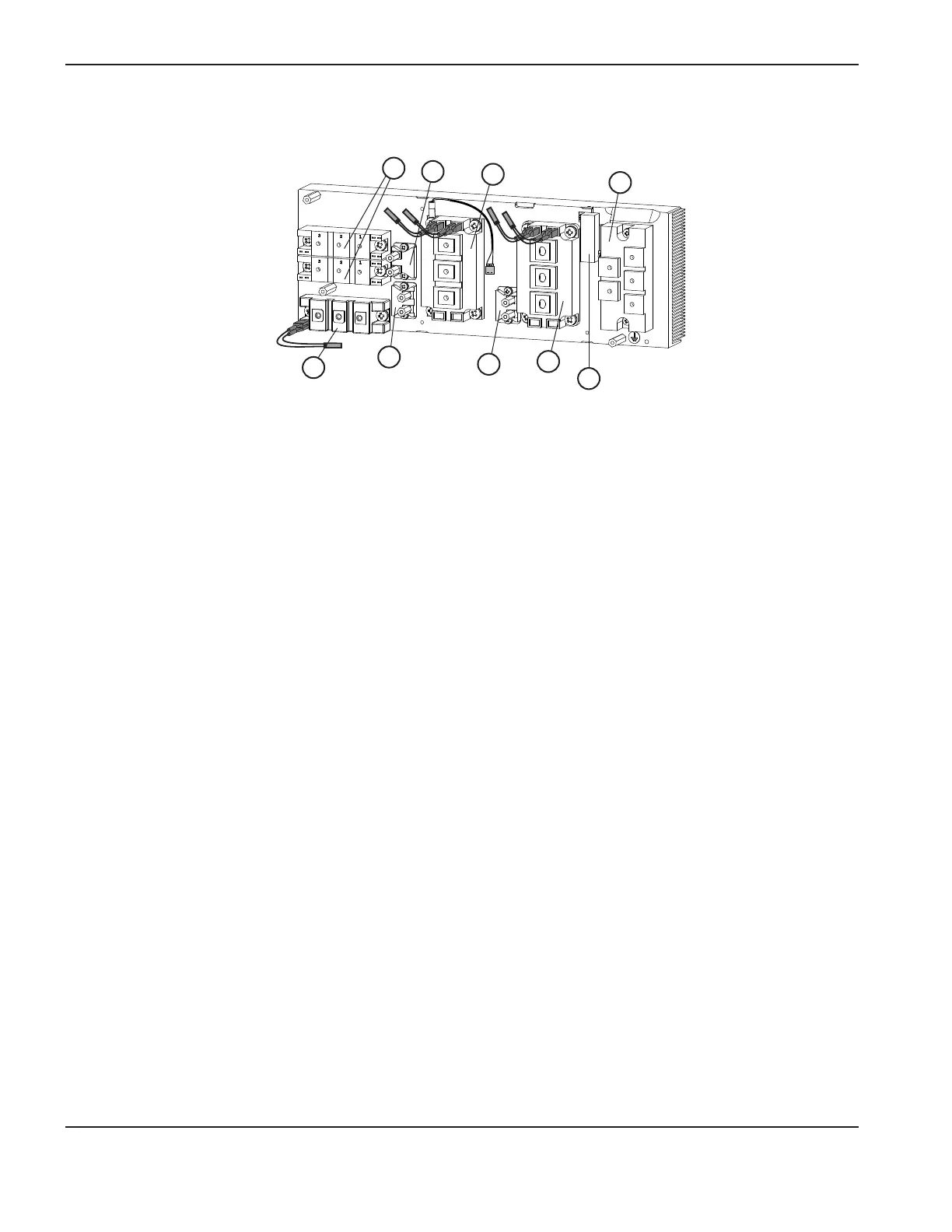

PARTS
7-12 powermax 65/85 Service Manual

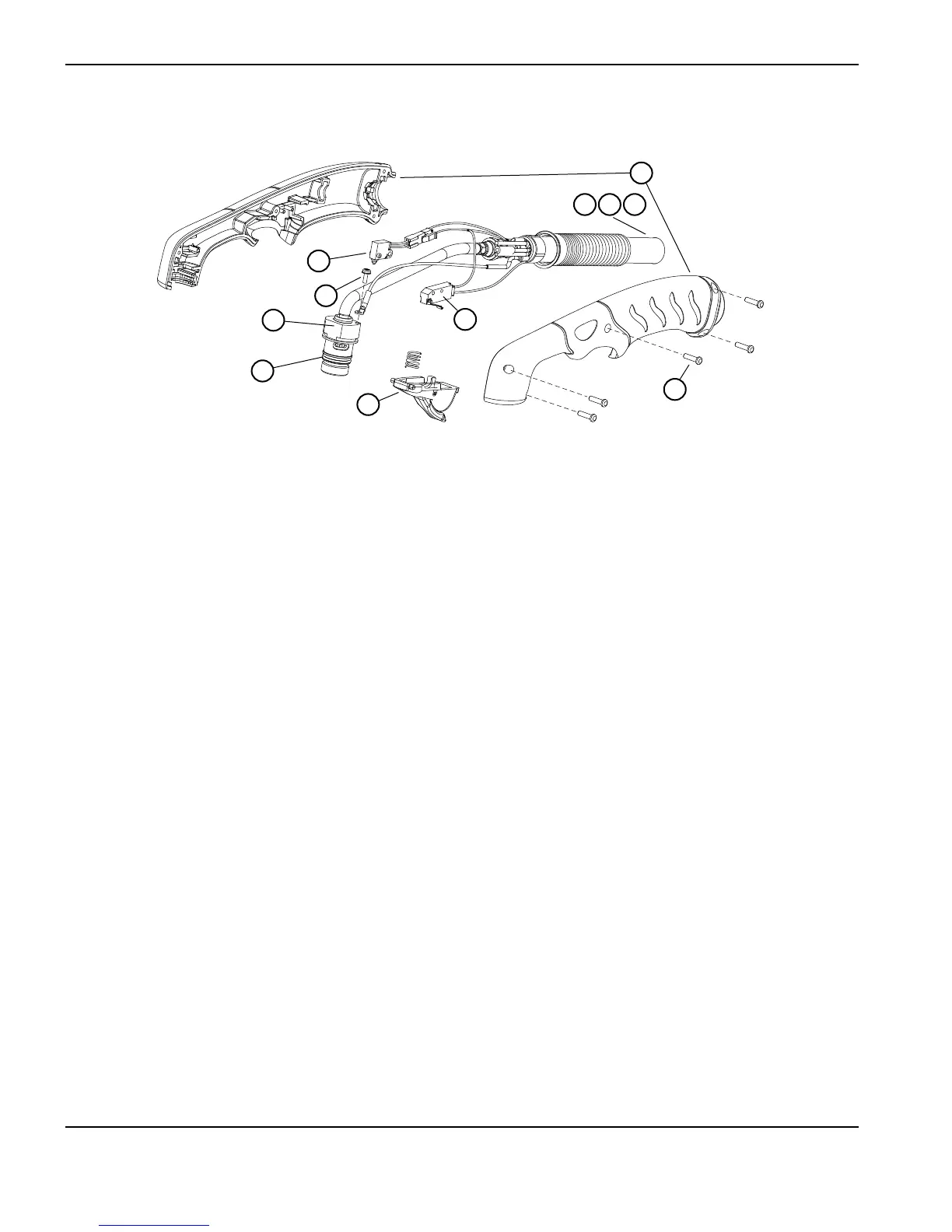

H65/H85 Hand torch replacement parts
1
2
3
4
5
6
7
8
9
10
11
* The torch assembly also includes one set of the drag-cutting consumables listed on 7-14.
Item Part number Description
083247* H65 Hand torch assembly with 25 ft (7.6 m) lead
083248* H65 Hand torch assembly with 50 ft (15.2 m) lead
083249* H65 Hand torch assembly with 75 ft (22.9 m) lead
087085* H85 Hand torch assembly with 25 ft (7.6 m) lead
087086* H85 Hand torch assembly with 50 ft (15.2 m) lead
087087* H85 Hand torch assembly with 75 ft (22.9 m) lead
1 228717 Kit: H65/H85 Torch handle replacement
2 075714 Handle screws, #4 x 1/2 slotted TORX pan head, S/B
3 228721 Kit: H65/H85/H65s/H85s Safety trigger with spring replacement
4 058519 O-ring: VITON .673 X .063
5 075504 Pilot terminal screw: MSCR:4-40 X 5/16 SW CN SEM PH PAN S/Z
6 228719 Kit: H65/H85 Cap-sensor switch replacement
7 228723 Kit: H65/H85 Torch lead replacement, 25 ft (7.6 m)
8 228724 Kit: H65/H85 Torch lead replacement, 50 ft (15.2 m)
9 228725 Kit: H65/H85 Torch lead replacement, 75 ft (22.9 m)
10 128642 Trigger start switch
11 228714 Kit: H65/H85 torch head replacement
228314 Kit: Quick Disconnect repair (latch, spring)
The entire hand torch and lead assembly can be replaced, or individual component parts can be replaced. Part numbers
starting with 083 and 087 indicate complete torch and lead assemblies.
