Hypertherm Powermax 85 Service Manual

Component ReplaCement
6-10 powermax 65/85 Service Manual

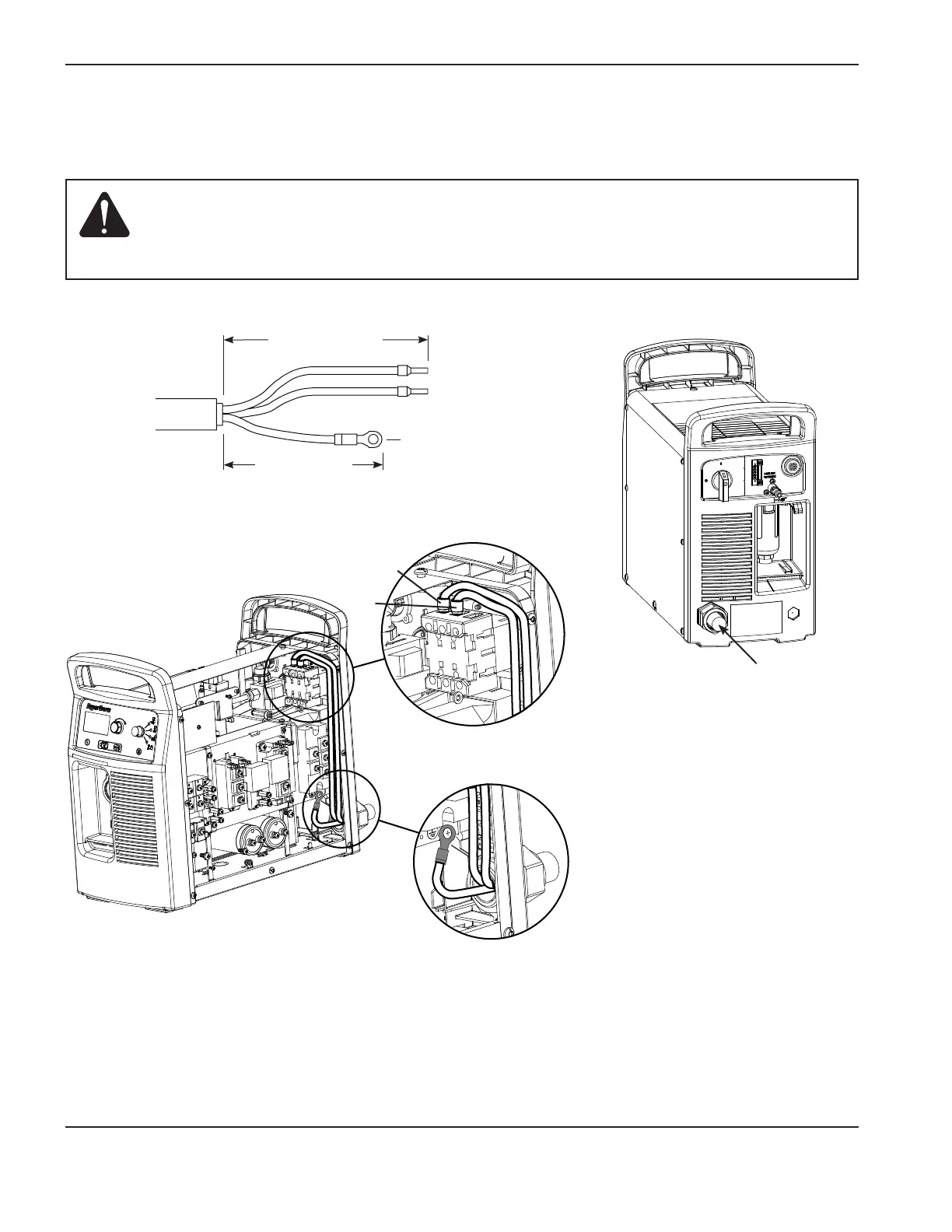

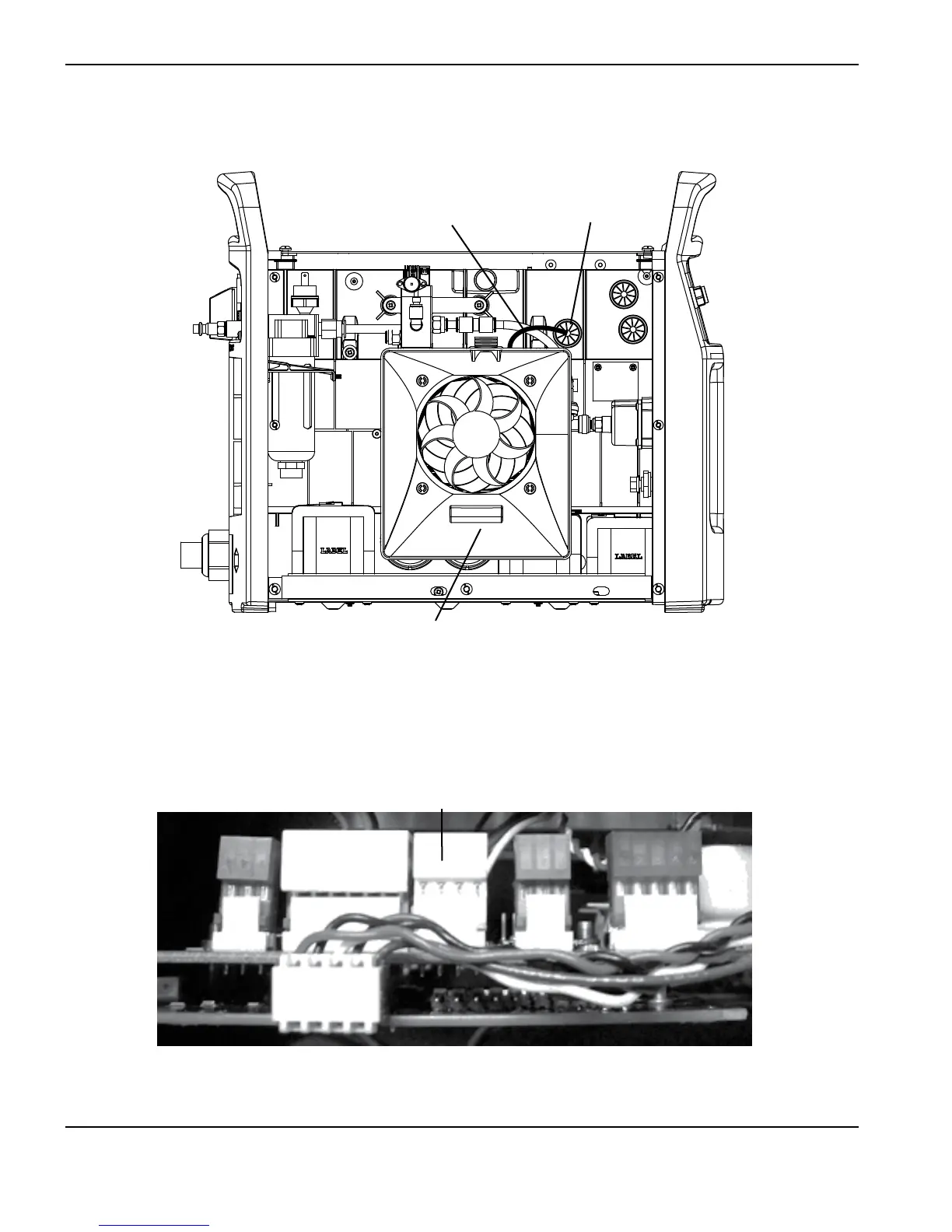

Replace the power cord (200 – 480 V 1-phase CSA)
To operate your Powermax on 1-phase power, you will need to install an appropriate power cord.
Strip and prepare the power cord wires as shown below.
L1
L2
Ground (GND)
#10
14.5 in (368 mm)
6 in (152 mm)
L1
L2
Power switch
Ground screw
Route lead through
strain relief and tighten
Caution: When using the Powermax85 CSA model power supply (CE model is 3-phase
only) with a 1-phase power source, replace the supplied power cord with a
6AWG (16 mm
2
) 3-wire power cord. The power cord must be connected by
alicensed electrician.
Install a plug on the power cord (CSA)
Use a plug that meets national and local electrical codes. The plug must be connected to the power cord by a licensed
electrician.

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
