Hypertherm Powermax 85

TORCH SETUP
3-6 powermax 65/85 Service Manual

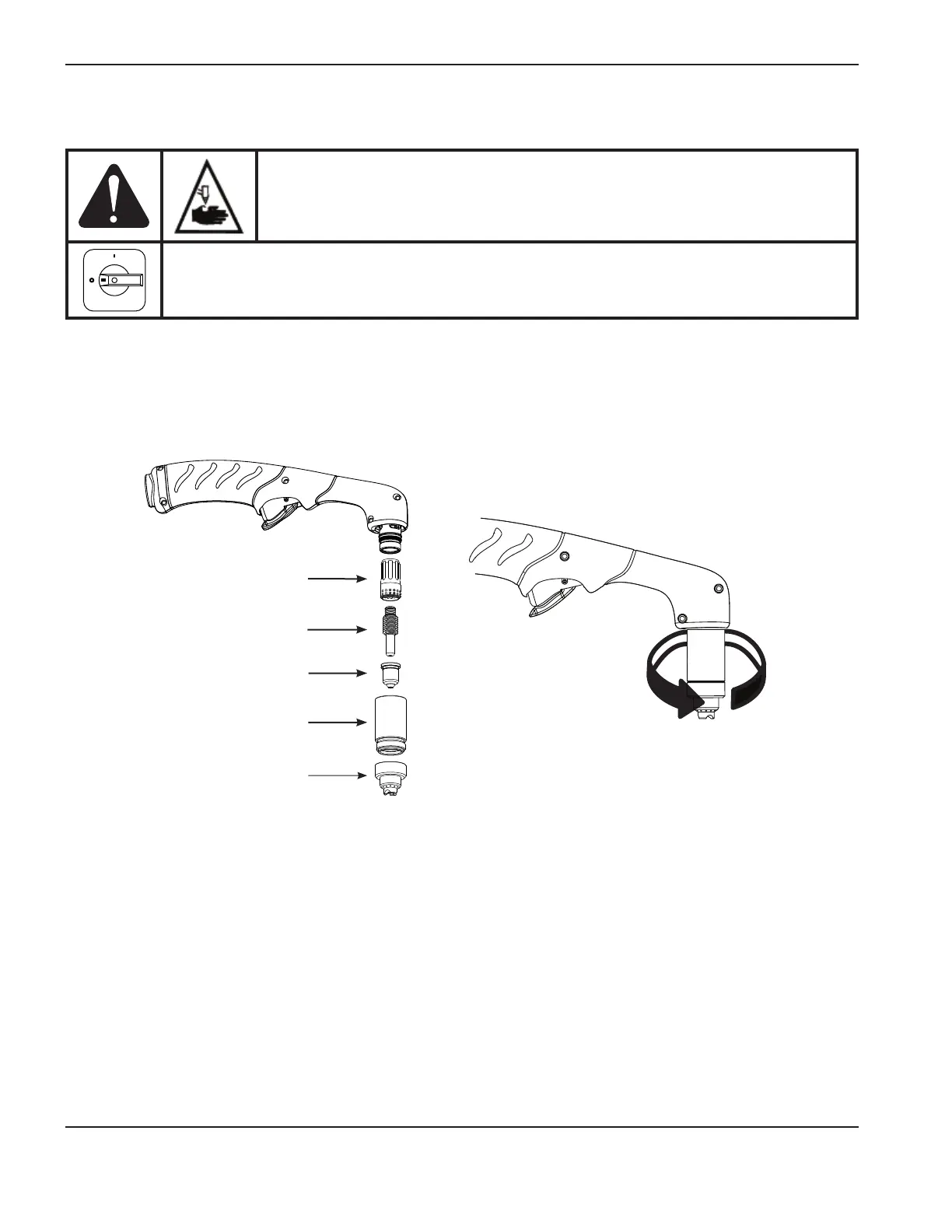

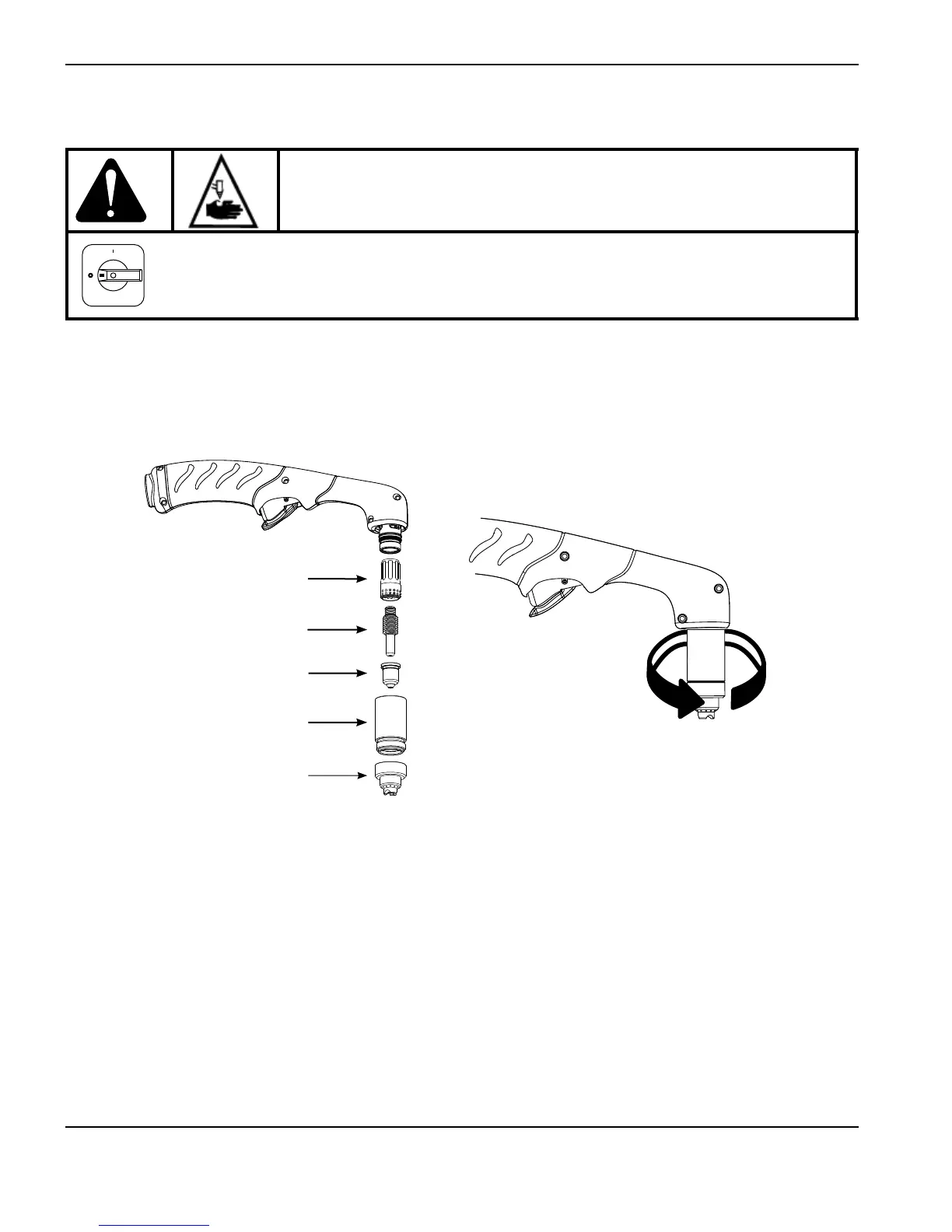

Install the hand torch consumables
To operate the hand torch, a complete set of consumable parts must be installed: shield, retaining cap, nozzle,
electrode, and swirl ring.
With the power switch in the OFF (O) position, install the torch consumables asshown below.
Retaining cap
Nozzle
Electrode
Swirl ring
WARNING:
INSTANTON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
Shield
The plasma arc comes on im me di ate ly when the torch trigger is
activated. Make sure the power is OFF before changing consumables.
