Hypertherm Powermax 85

PARTS
powermax 65/85 Service Manual 7-3

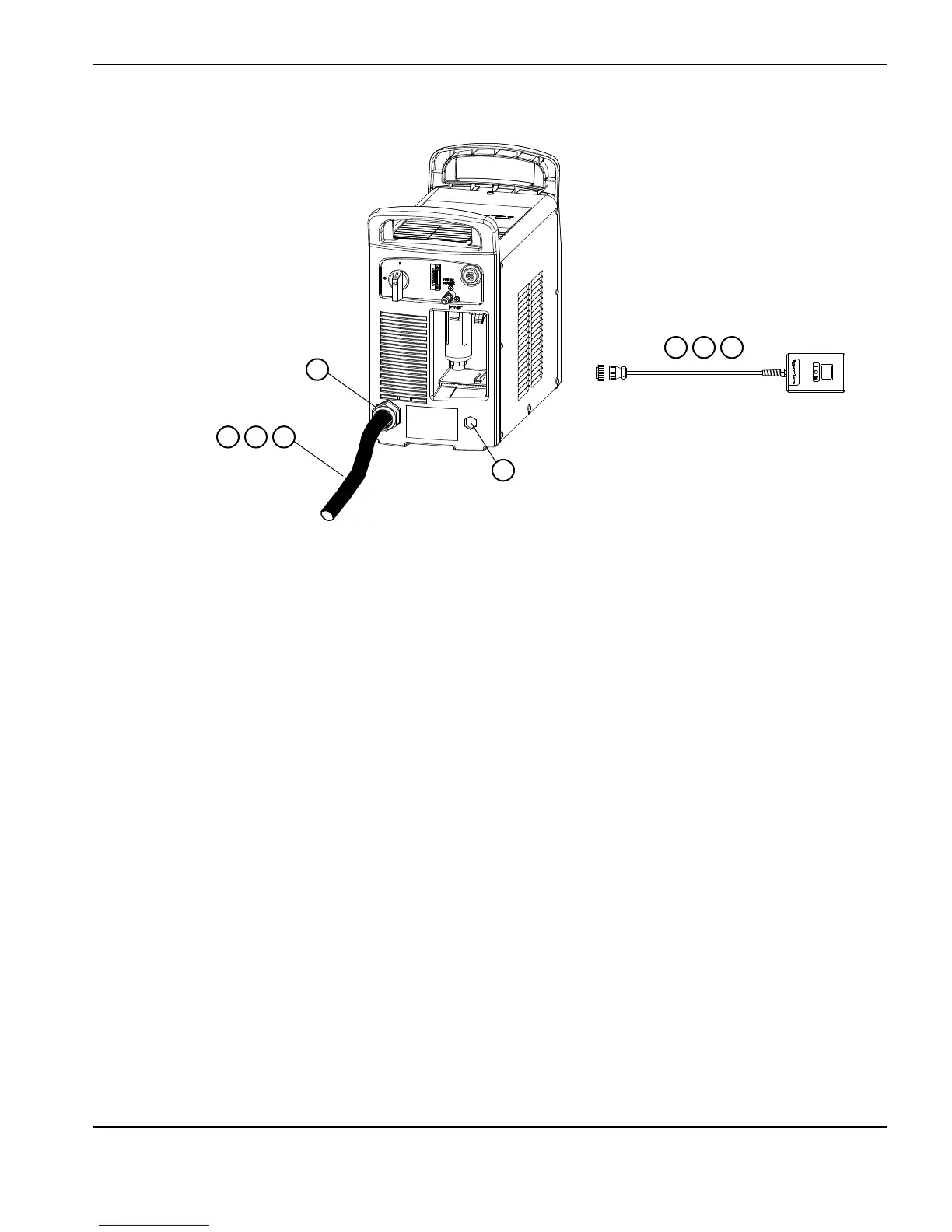

Exterior rear
Item Part number Description
1 228691 Kit: Powermax65 and Powermax85 CSA power cord
2 228679 Kit: Powermax65 CE power cord
3 228678 Kit: Powermax85 CE power cord
4 228680 Kit: Powermax65 and Powermax85 power cord strain relief
5 128650 Remote start pendant for machine torch, 25 ft (7.6 m)
6 128651 Remote start pendant for machine torch, 50 ft (15.2 m)
7 128652 Remote start pendant for machine torch, 75 ft (22.9 m)
8 228711 Kit: Powermax65 and Powermax85 Mach interface strain relief kit, raw arc voltage
023206 Machine interface cable (start plasma, arc transfer, ground), 25 ft (7.6 m), spade connectors
023279 Machine interface cable (start plasma, arc transfer, ground), 50 ft (15.2 m), spade
connectors
228350 Machine interface cable (start plasma, arc transfer, adjustable voltage divider, ground), 25 ft
(7.6 m), spade connectors
228351 Machine interface cable (start plasma, arc transfer, adjustable voltage divider, ground), 50 ft
(15 m), spade connectors
123896 Machine interface cable (start, stop, transfer signals), 50 ft (15.2 m), D-sub connector with
screws
127204 Powermax45, Powermax65, and Powermax85 Machine interface (CPC) receptacle cover
228697 Kit: Powermax65 and Powermax85 Machine Interface Cable, internal cable with voltage
divider board (CPC port upgrade)
228539 Kit: RS485 board with internal cables (65/85)
1
2
3
4
5
6
7
8
