Hypertherm Powermax 85 Service Manual

Parts
7-4 powermax 65/85 Service Manual

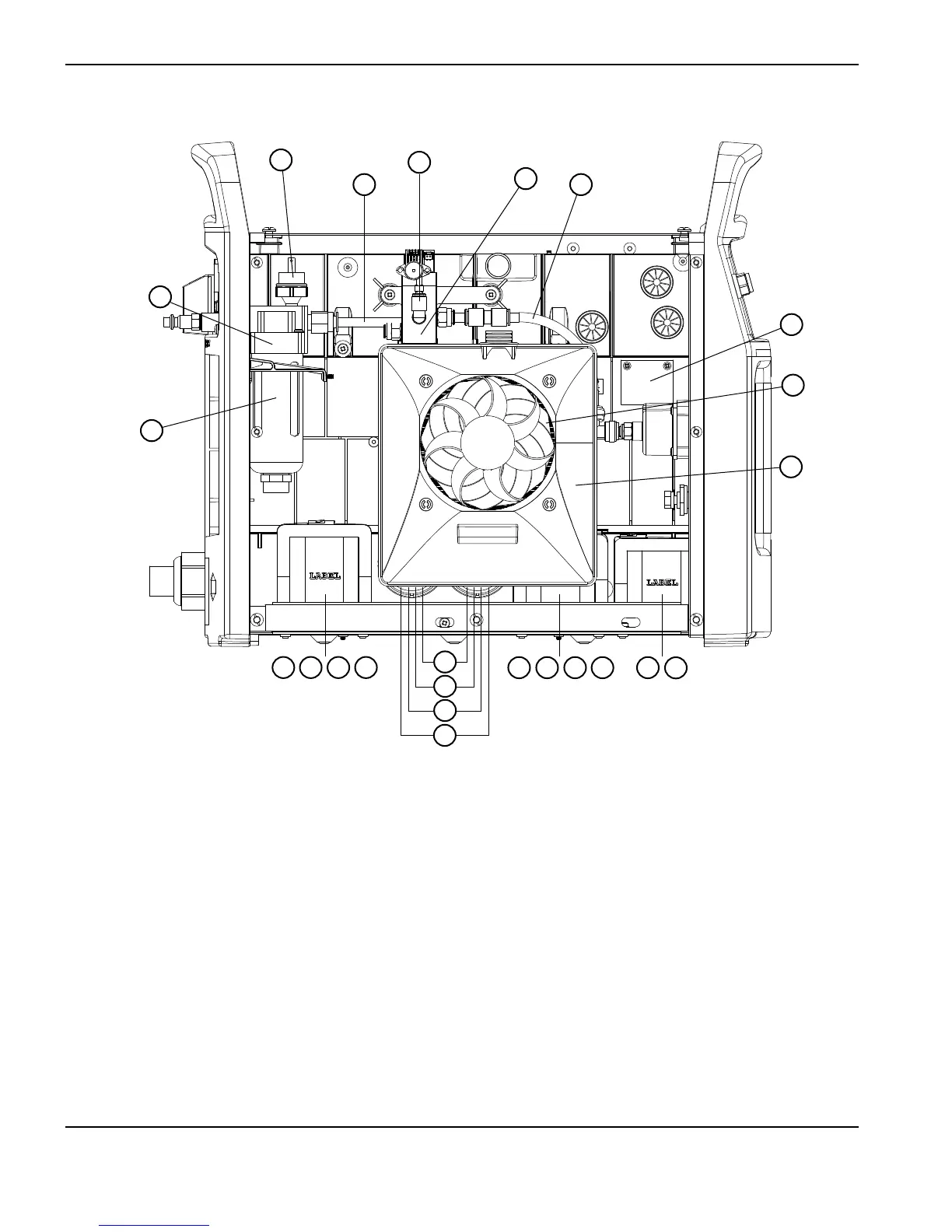

Interior, power board side (200 – 600V CSA)
WORK
LEAD
BLK
BLK
J13
J16J17J18J19
J26
J29
TP12
J28
TP10
TP11
1
2
3
4
5
6
7
Item Part number Description
1 228657 Kit: Powermax65 control board
2 228658 Kit: Powermax85 control board
3 228656 Kit: Powermax65 and Powermax85 DSP board
4 228659 Kit: Powermax65 Power board CSA
5 228662 Kit: Powermax85 Power board CSA
6 228644 Kit: Powermax65 CSA Power Switch
7 228655 Kit: Powermax85 CSA Power Switch
228690 Kit: Powermax65 CSA wire group
228700 Kit: Powermax85 CSA wire group
228705 Kit: Powermax65 and Powermax85 Mylar barrier

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
