TroubleshooTing and sysTem TesTs
powermax 65/85 Service Manual 5-3
Fault LED
(yellow)
Power ON LED
(green)
Status screen
Automatic/manual pressure
setting mode selector
Current/gas
selector
Operating
mode switchAdjustment knob

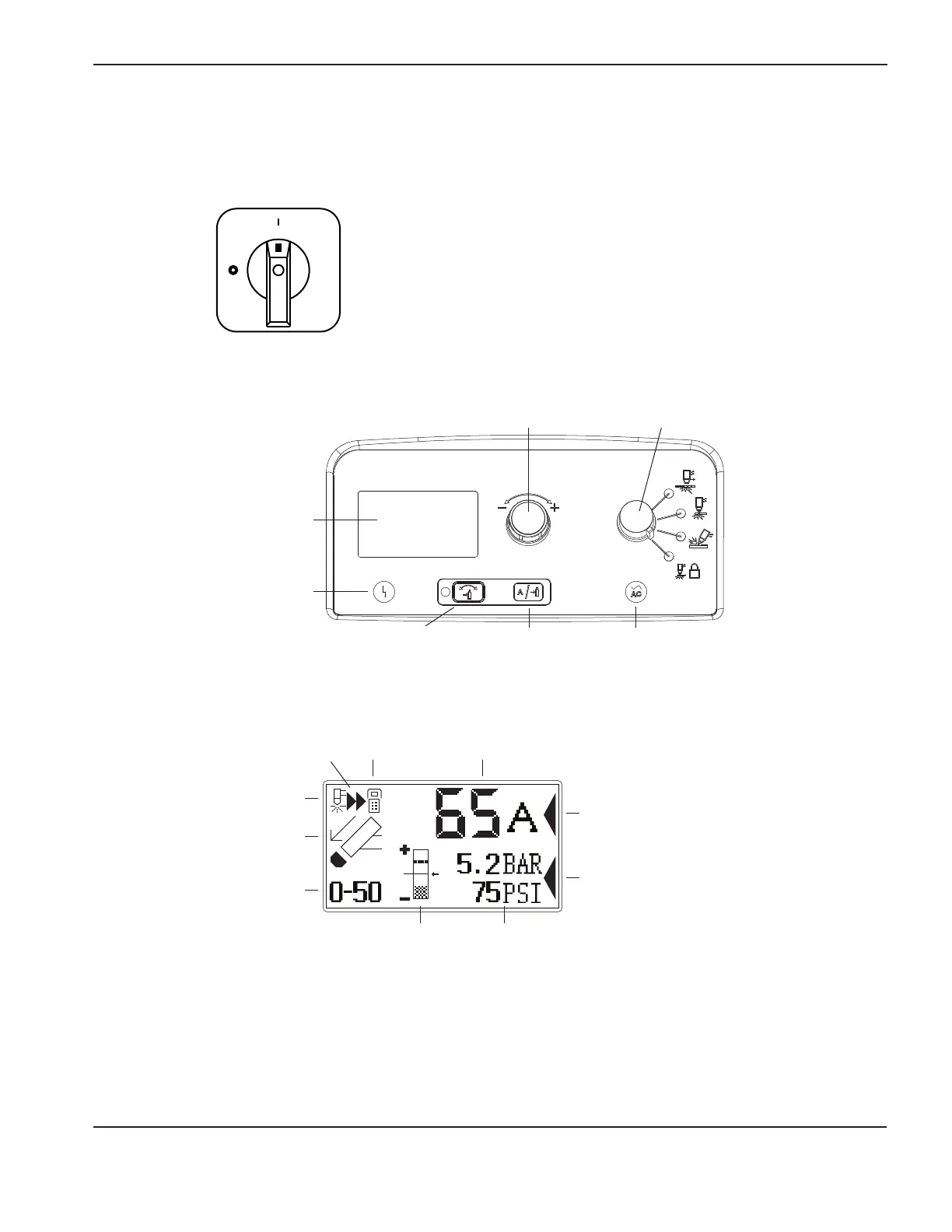

Controls and indicators
The Powermax65 and Powermax85 controls and indicators are described in Section 4, Operation. These figures are
included for reference.
ON (I)/OFF (O) power switch
Activates the power supply and its control circuits.
Torch started
Fault icon
Fault code
Arc is
transferred
Remote
connected
Current
setting
(amps)
Current selection cursor
Pressure selection cursor
Pressure
setting
Visual pressure
setting

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
