Hypertherm Powermax 85 Service Manual

TroubleshooTing and sysTem TesTs
powermax 65/85 Service Manual 5-13
IGBT test preparation

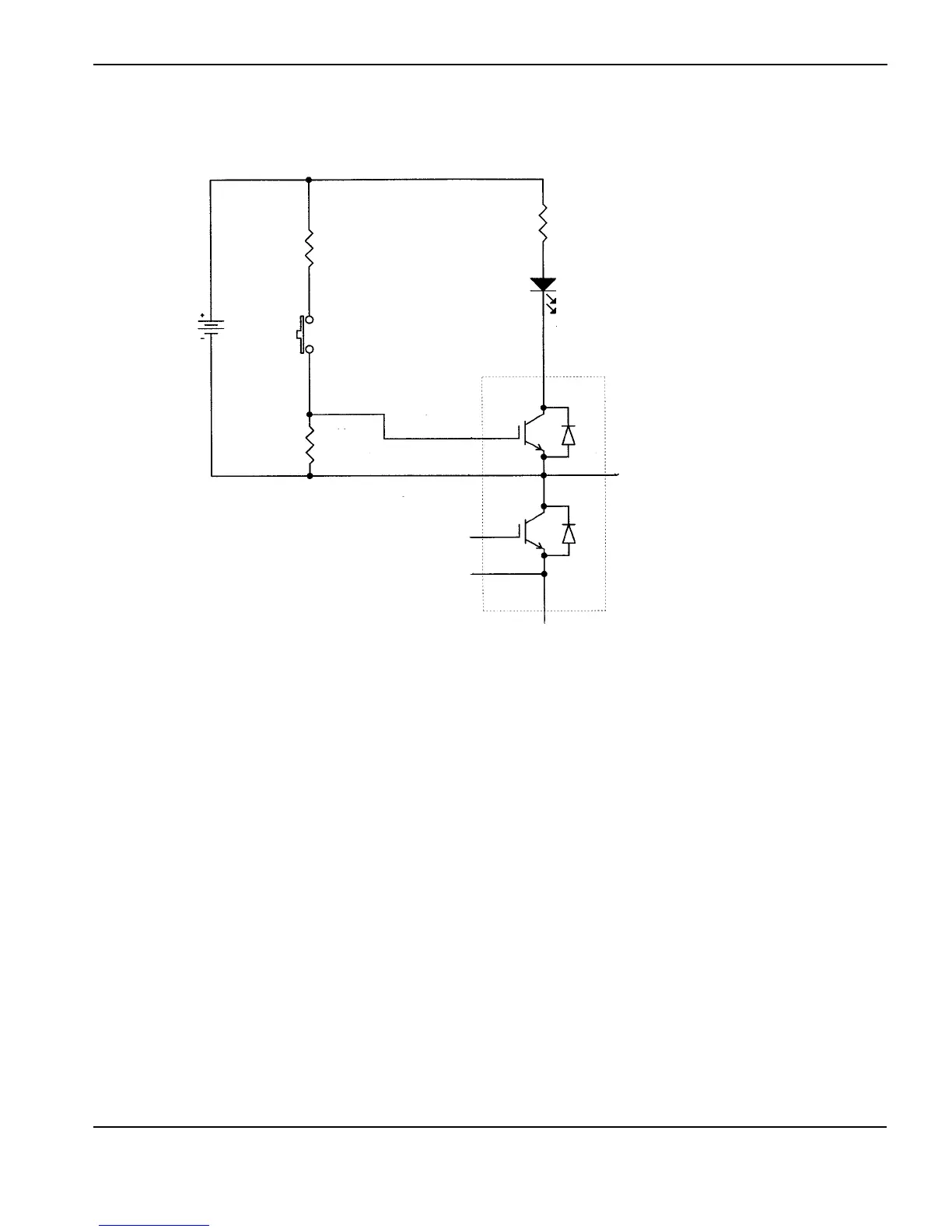

Before testing with the Hypertherm IGBT tester, connect the colored leads to the IGBT as shown on the next page.
Note: Before an IGBT can be tested, it must be electrically isolated from all circuits. If the IGBT is installed in a power
supply, remove the power board and any lead connections before testing.

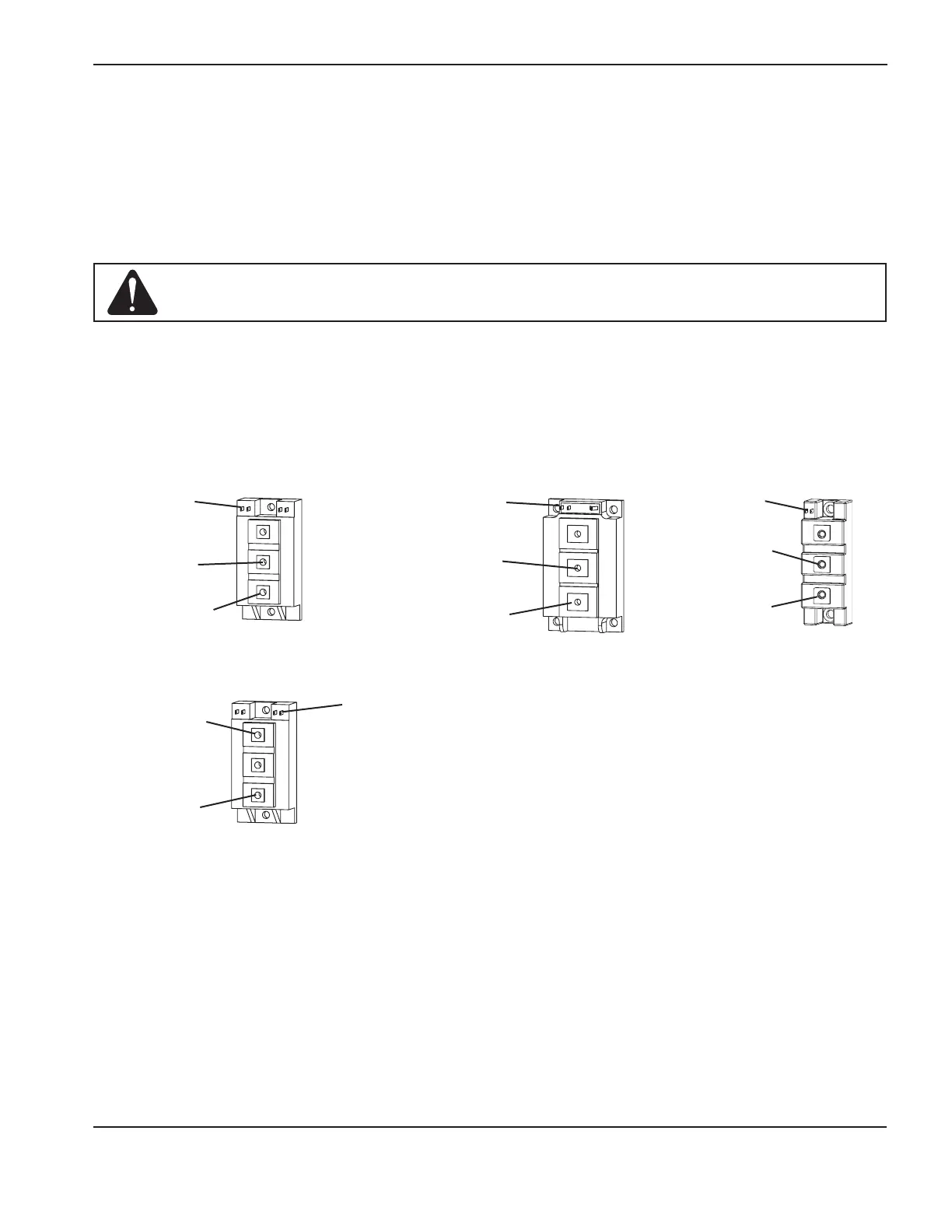

The illustrations below depict three common configurations of an IGBT. Each connection on the IGBT will be labeled
with an abbreviation. They may be labeled as C, E, G or 1, 2, 3 with a schematic that shows numbers and pin functions.
Yellow lead
Gate 2 (G2)
Black lead
Emitter 2 (E2)
Red lead
Collector 2, (C2)
IGBT, Inverter
Test 1
Yellow lead
Gate (G)
Black lead
Emitter (E)
Red lead
Collector (C)
IGBT, PFC
Yellow lead
Gate (G)
Red lead
Collector (C)
Black lead
Emitter (E)
IGBT, Pilot arc
IGBT, Inverter
Test 2
Yellow lead
Gate 1 (G1)
Red lead
Collector 1, (C1)
Black lead
Emitter 1 (E1)
Caution: Failure to isolate the IGBT may result in false readings and/or damage to the
IGBT tester.

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
