Power SuPPly SetuP
2-10 powermax
65/85
Service Manual

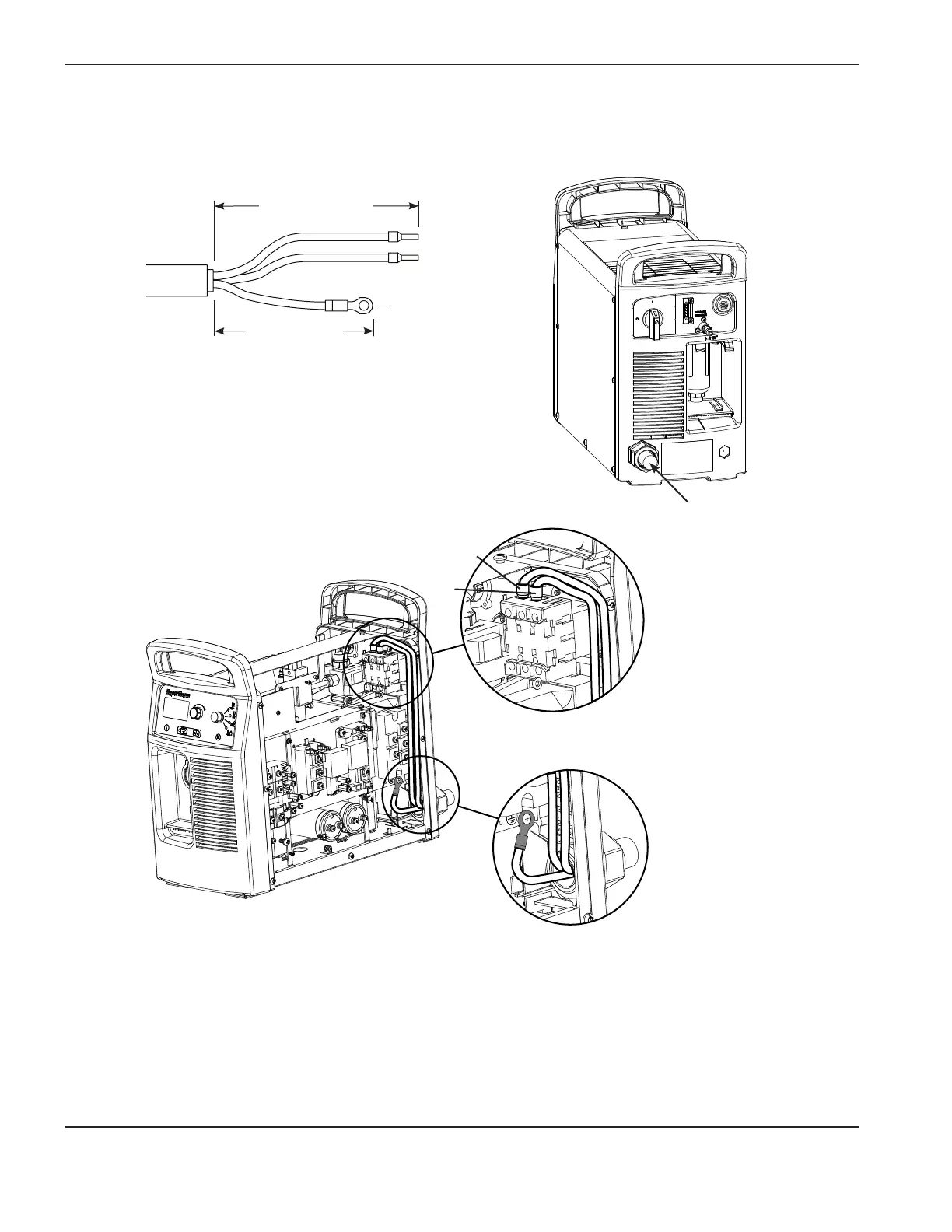

Single-phase power cord installation
Strip and prepare the power cord wires as shown below.
L1
L2
Ground
#10
14.5 in
(368 mm)
6 in
(152 mm)
L1
L2
Power switch
Ground screw
Route lead through
strainrelief and tighten
