Hypertherm Powermax 85

COMPONENT REPLACEMENT
6-32 powermax 65/85 Service Manual
85A CSA
2
3
3
3
3
1
1
Note: “3” on the left
Torque to 15 in-lbs (17.3 kg cm).
M4 X 10 2SEM
Torque to 20 in-lbs (23 kg cm).
M5 X 16 2SEM
Torque to 35 in-lbs (40 kg cm).
M6 X 16-12.5 2SEM TRI CHRM
Torque to 10 in-lbs (11.5 kg cm).
M3 X 10 1SEM
1
2
3
4
4

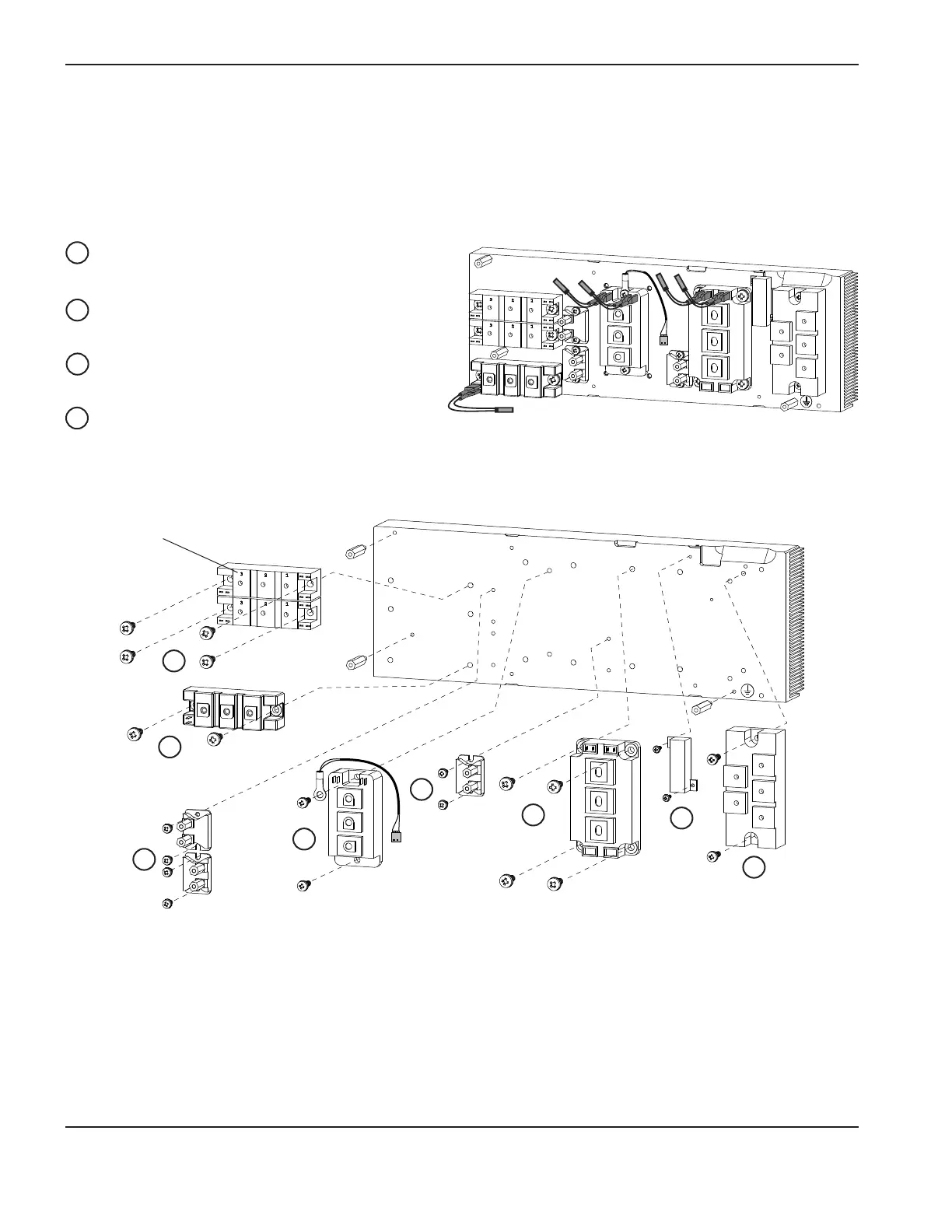

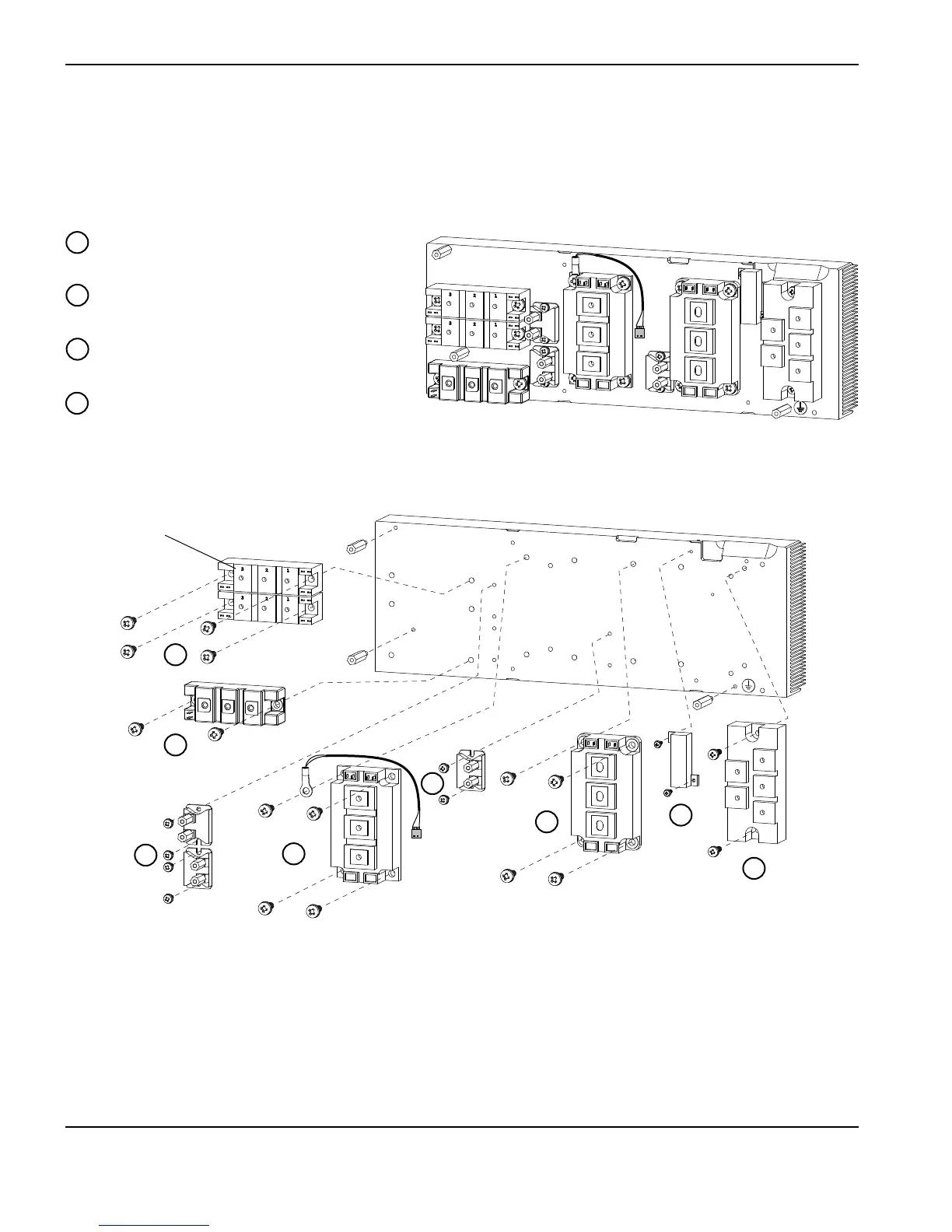

When securing a component to the heat sink, gently tighten all screws and then tighten all screws to the required
torque.
Note: All screws listed are Phillips head, pan head, machine screws.
