Hypertherm Powermax 85 Service Manual

Component ReplaCement
powermax 65/85 Service Manual 6-31
65A CE
2
3
3
3
1
Note: “3” on the left

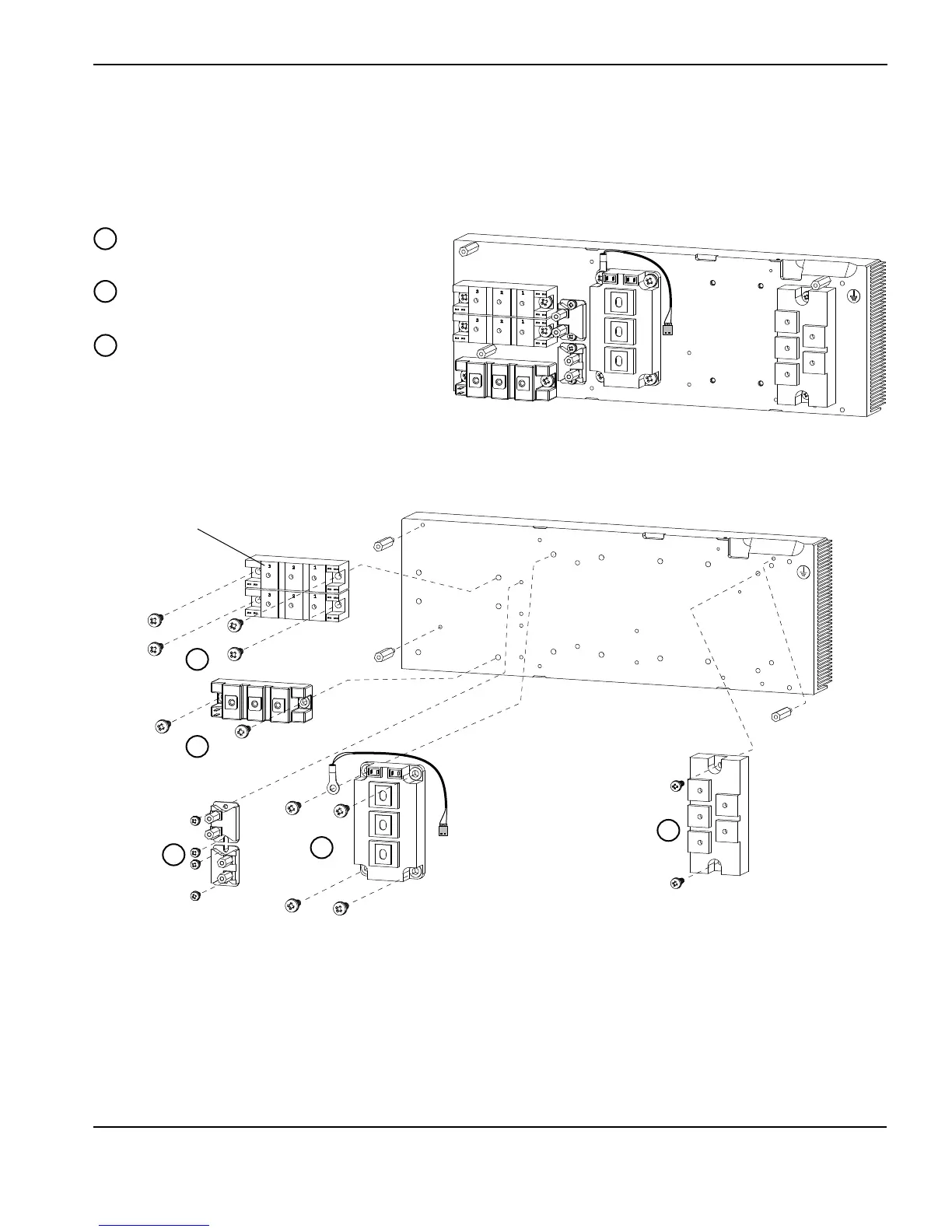

When securing a component to the heat sink, gently tighten all screws and then tighten all screws to the required
torque.
Note: All screws listed are Phillips head, pan head, machine screws.
Torque to 15 in-lbs (17.3 kg cm).
M4 X 10 2SEM
Torque to 20 in-lbs (23 kg cm).
M5 X 16 2SEM
Torque to 35 in-lbs (40 kg cm).
M6 X 16-12.5 2SEM TRI CHRM
1
2
3

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
