Hypertherm Powermax 85 Service Manual

SpecificationS
powermax 65/85 Service Manual 1-11

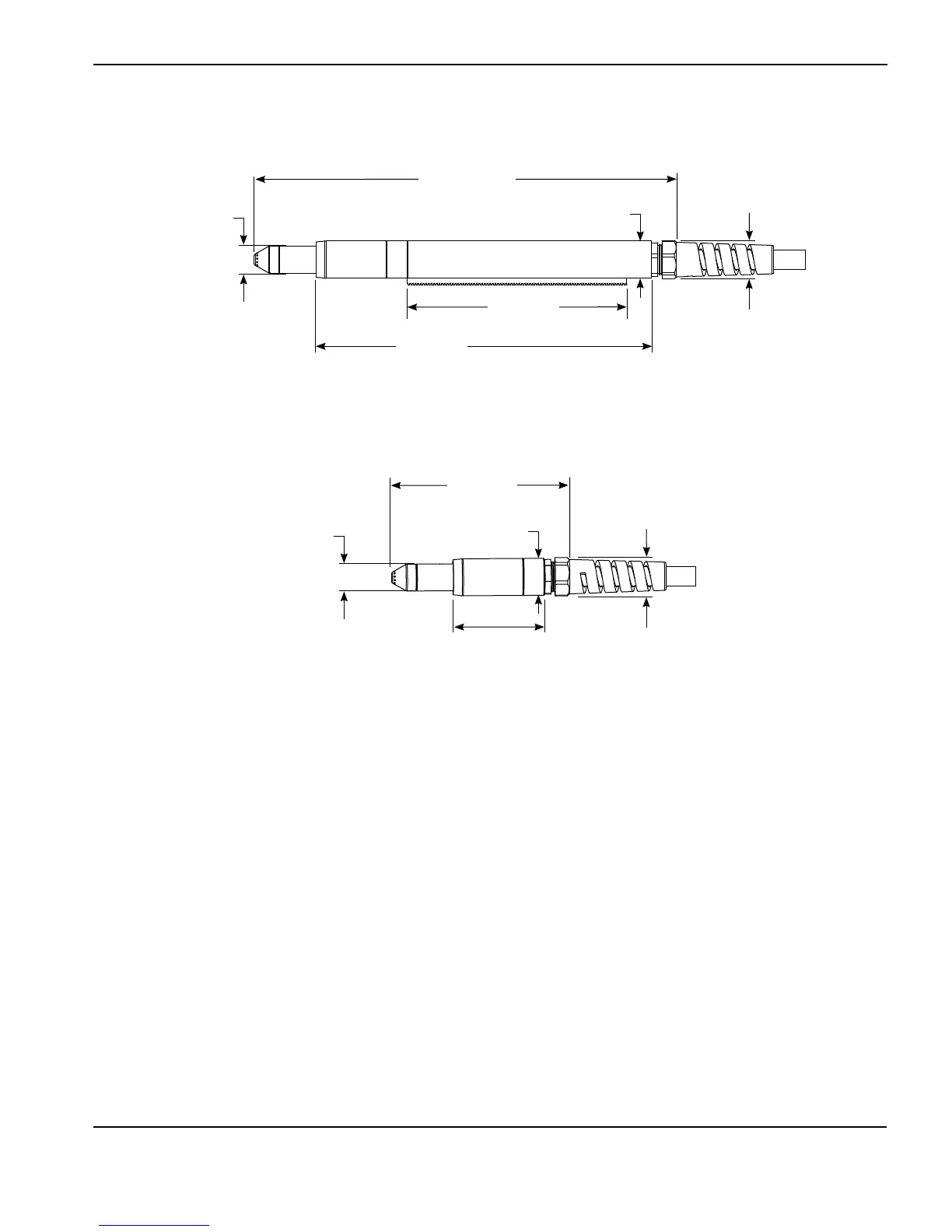

Duramax 180° full-length machine torch dimensions
15.6 in
(39.6 cm)
1.0 in
(2.5 cm)
1.0 in
(2.5 cm)
1.4 in (3.6 cm) outer
dimension, 1.3 in
(3.3cm) flat sides
1.4 in (3.6 cm) outer
dimension, 1.3 in
(3.3cm) flat sides
12.3 in
(31.3 cm)
8.1 in
(20.6 cm)
1.4 in
(3.5 cm)
1.4 in
(3.5 cm)
Duramax 180° mini machine torch dimensions
6.6 in
(16.8 cm)
3.3 in
(8.4 cm)

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
