Hypertherm Powermax 85 Service Manual

Parts
7-2 powermax 65/85 Service Manual

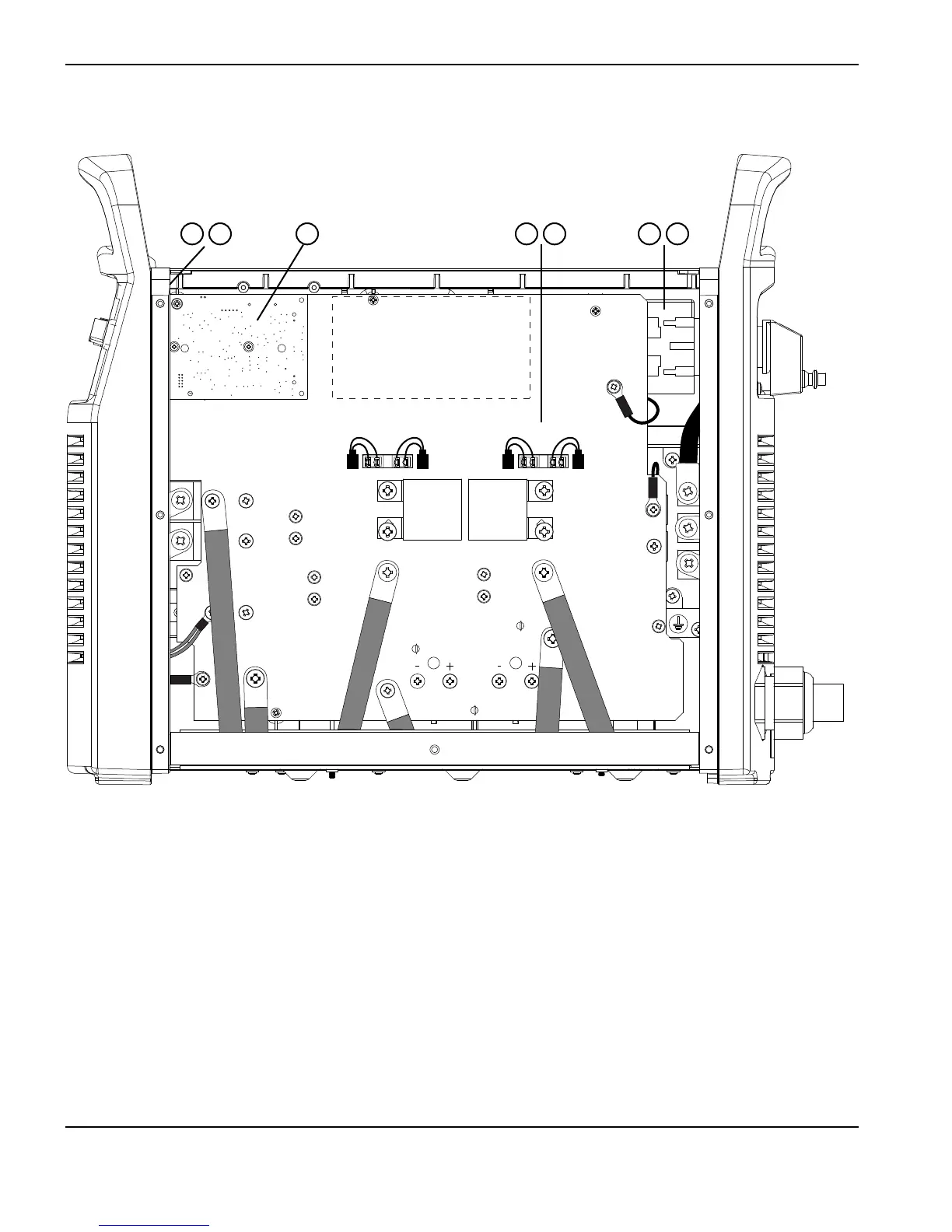

Power supply parts

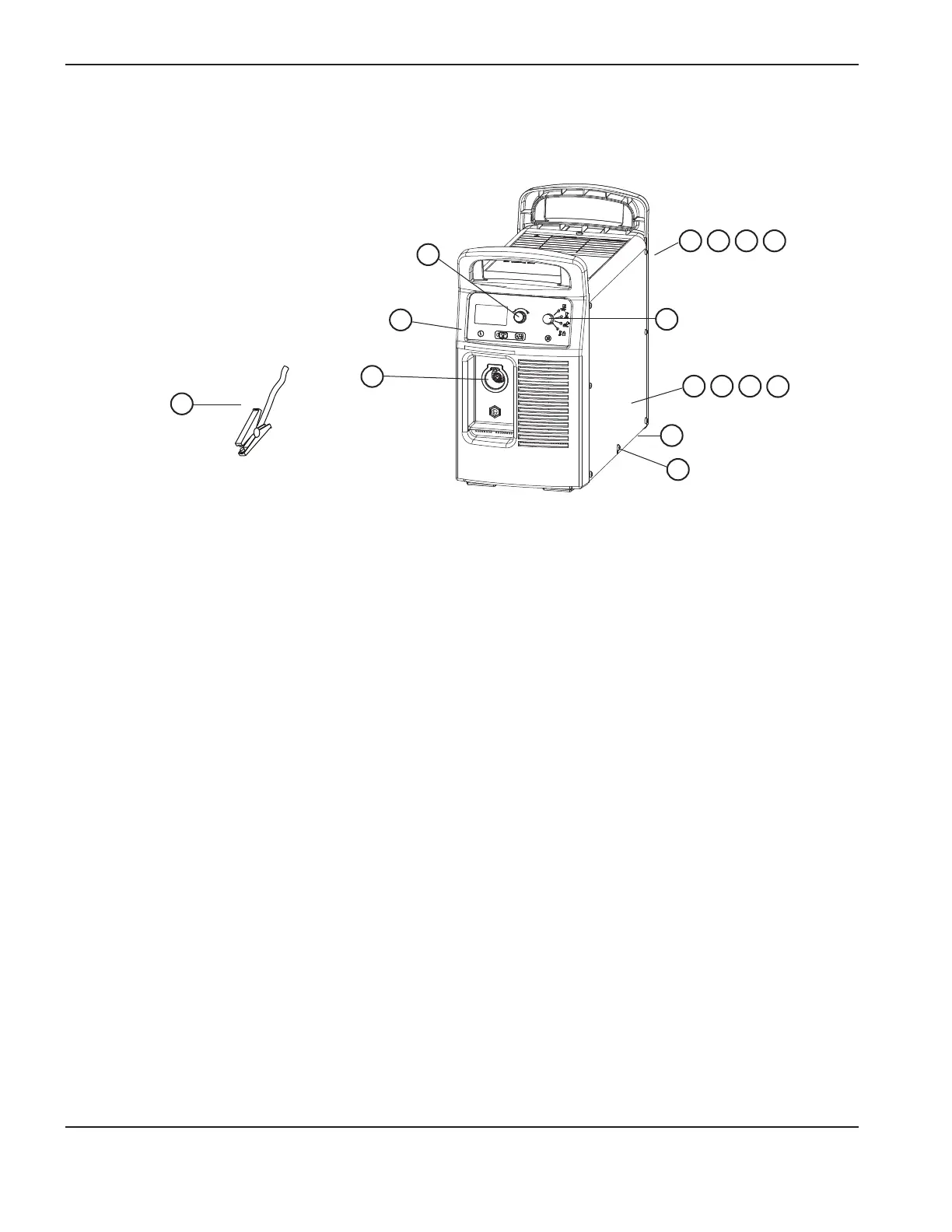

Exterior front
Item Part number Description
228649 Kit: Powermax65 labels, CSA
228650 Kit: Powermax65 labels, CE
228651 Kit: Powermax85 labels, CE
228652 Kit: Powermax85 labels, CSA
1 228643 Kit: Powermax65 and Powermax85 front panel
2 228645 Kit: Powermax65 CSA rear panel
3 228646 Kit: Powermax65 CE rear panel
4 228647 Kit: Powermax85 CSA rear panel
5 228653 Kit: Powermax85 CE rear panel
6 228642 Kit: Powermax65 and Powermax85 cover screws
7 228666 Kit: Powermax65 CSA power supply cover with labels
8 228674 Kit: Powermax65 CE power supply cover with labels
9 228676 Kit: Powermax85 CSA power supply cover with labels
10 228675 Kit: Powermax85 CE power supply cover with labels
11 108797 Adjustment knob
12 108732 Operating mode knob
13 228710 Kit: Powermax65 and Powermax85 FastConnect replacement (power supply half)
14 228640 Kit: Powermax65 and Powermax85 base
15 Work lead (see page 7-20 Accessory parts for a complete list of work leads with kit
numbers)
1
2
3
4
5
6
7
8
9
11
12
13
15
14
10
