Hypertherm Powermax 85 Service Manual

Parts

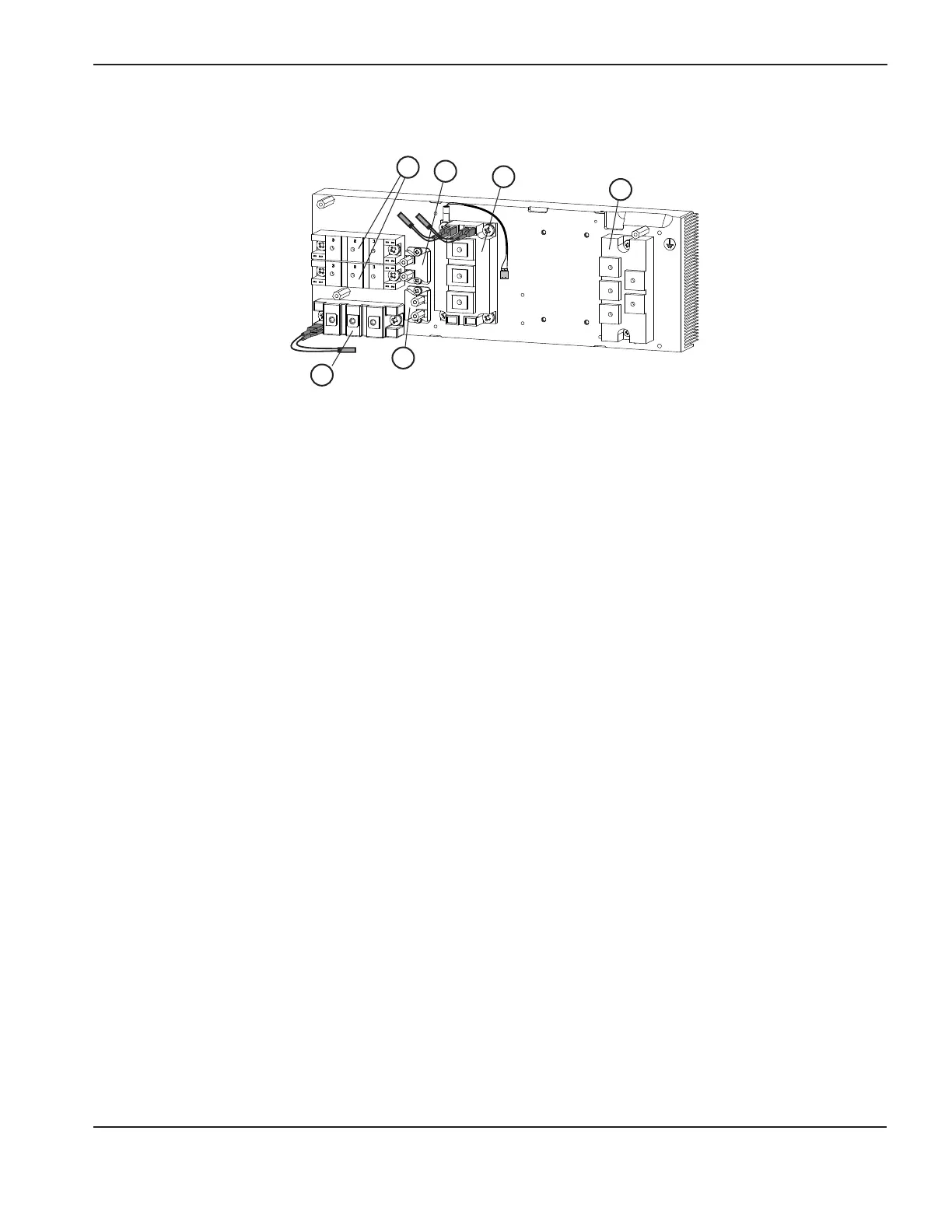

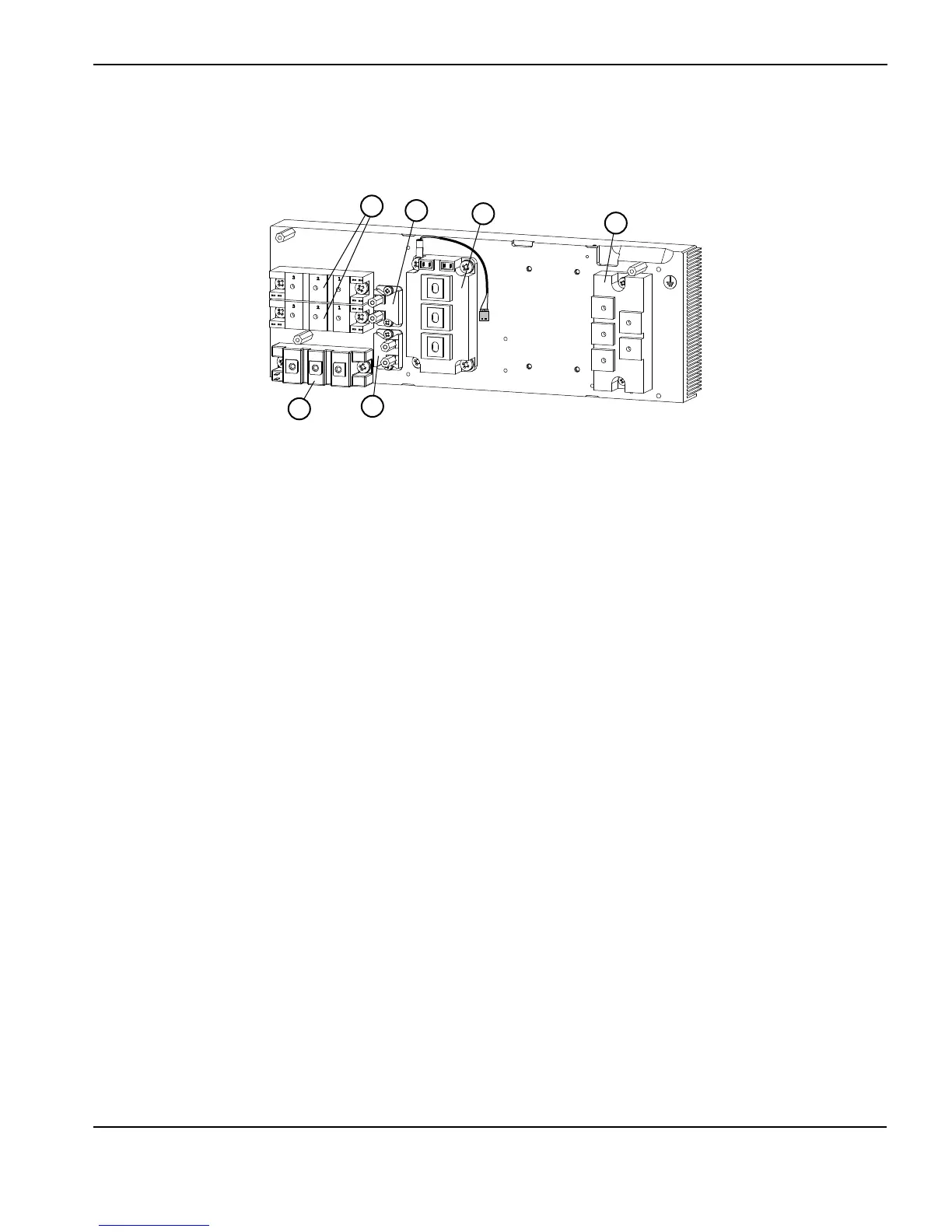

powermax 65/85 Service Manual 7-9
65A CE
Item Part number Description
1 228803 Kit: Powermax65 output diode bridge
2 228693 Kit: Powermax65 and Powermax85 5 Ω snubber resistor
3 228703 Kit: Powermax85 CSA, Powermax65 CE inverter IGBT
4 228742 Kit: Powermax65 CSA/CE, Powermax85 CE input diode bridge
5 228692 Kit: Powermax65 pilot arc IGBT
6 228706 Kit: Powermax65 and Powermax85 15 Ω snubber resistor
127128 Thermal grease, T-grease 2500, 10cc
1
2
3
4
5
6

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
